Arrangement for converting thermal energy from lost heat of an internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Jun 28, 2022
Grant Date -
Dec 17, 2020
app pub date -
Dec 17, 2018
filing date -
Dec 17, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

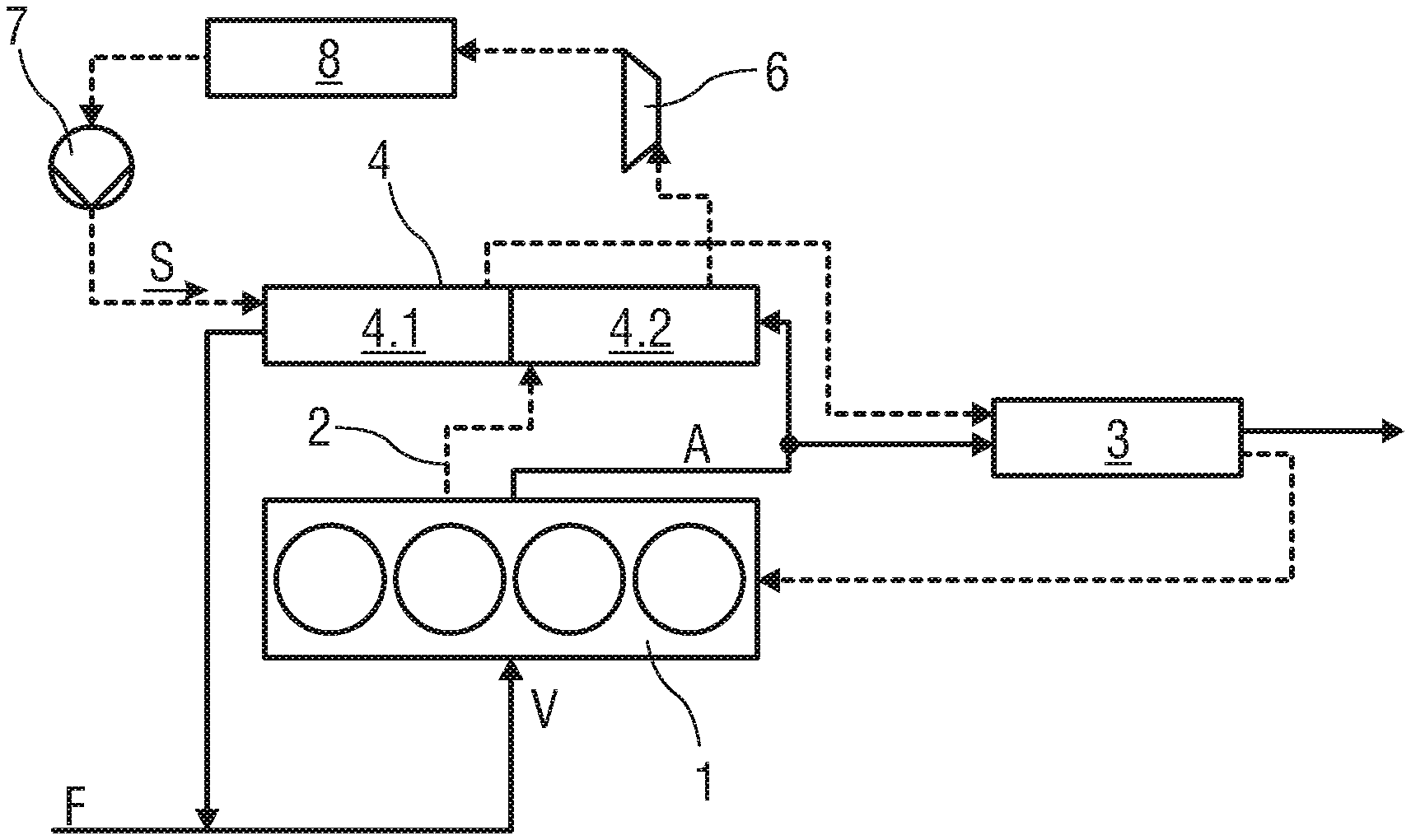

An arrangement for converting thermal energy from lost heat of an internal combustion engine into mechanical energy includes a working circuit for a working medium. An expansion engine is disposed in the working circuit. A heat exchanger is mounted upstream of the expansion engine in a flow direction of the working medium where the working circuit extends through the heat exchange. The heat exchanger includes an exhaust gas recirculation heat exchanger having a cold part and a warm part, an exhaust gas heat exchanger, and a phase transition cooling in the internal combustion engine. The heat exchanger is formed by serial connection in a sequence of the cold part of the exhaust gas recirculation heat exchanger, the exhaust gas heat exchanger, the phase transition cooling in the internal combustion engine, and the warm part of the exhaust gas recirculation heat exchanger.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- F01K Class
- 252 Applications Filed
- 172 Patents Issued To-Date
- 68.26 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01K Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 28, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 28, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 28, 2033 |
