Temperature sensor, array substrate, display apparatus and voltage adjustment method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 21, 2022
Grant Date -
Aug 13, 2020
app pub date -
Sep 15, 2017
filing date -
Feb 16, 2017
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

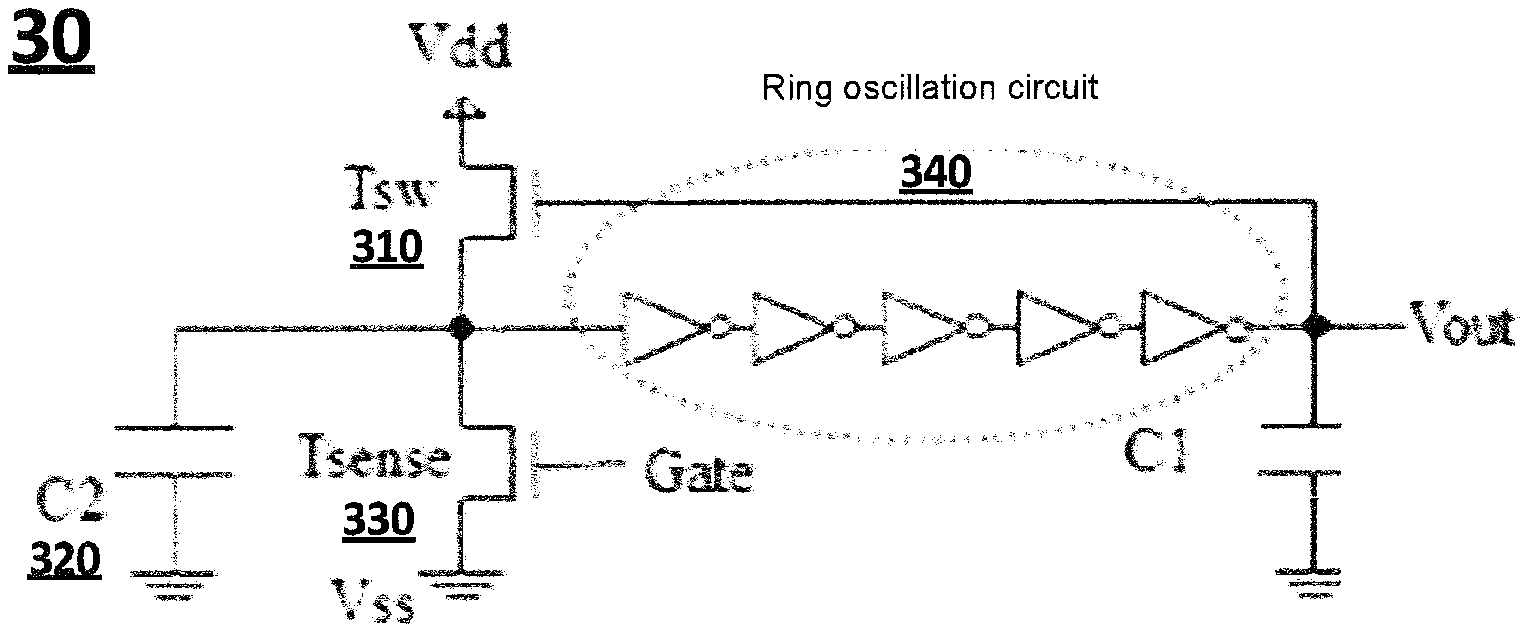

According to the embodiments of the present disclosure, there is provided a sensor for detecting a temperature. The sensor comprises a switch circuit; a charge/discharge circuit connected to the switch circuit, and configured to be charged and discharged under control of the switch circuit; a sensing circuit connected to the charge/discharge circuit, and configured to cause a charge/discharge period of the charge/discharge circuit to change with a temperature of the sensing circuit; and an oscillation circuit connected to the switch circuit and the charge/discharge circuit, and configured to generate, under action of the charge/discharge circuit, an oscillation signal for controlling the switch circuit, wherein an oscillation frequency of the oscillation signal is dependent on the charge/discharge period and thus indicates the temperature of the sensing circuit. In addition, the embodiments of the present disclosure further provide an array substrate and display comprising the sensor, and a corresponding voltage adjustment method.
