Microwave window including first and second plates with vertical stepped areas configured for pressure sealing a dielectric plate between the first and second plates
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 14, 2022
Grant Date -
May 5, 2022
app pub date -
Oct 30, 2020
filing date -
Oct 30, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

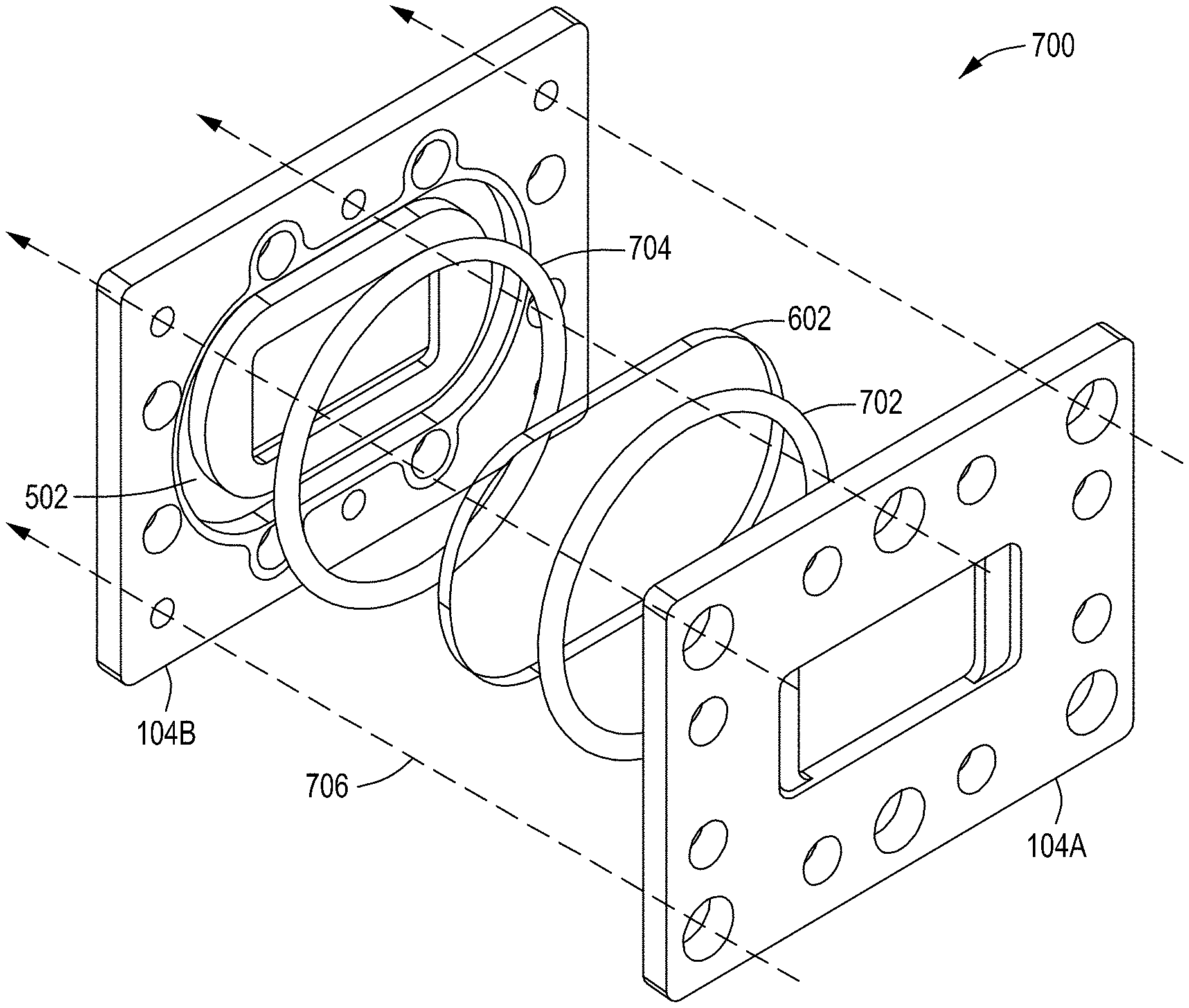

Apparatus for transmitting microwaves into a process chamber using a microwave pressure window assembly. The microwave pressure window assembly may include a first plate with a first aperture surrounded by a first recess for a first pressure seal, a second plate with a second aperture surrounded by a second recess for a second pressure seal, a dielectric plate configured to transmit microwaves and interposed between the first plate and the second plate and between the first pressure seal and the second pressure seal. The apertures include a first vertical step area on a first vertical side of the apertures and a second vertical step area on a second vertical side of the apertures opposite of the first vertical side. The first vertical step areas and the second vertical step areas may have a thickness of approximately 50% of a thickness of the plates that includes a dielectric plate recess.
