Three-dimensional isolator with adaptive stiffness property

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 11339849
APP PUB NO 20210301900A1
SERIAL NO

16317977

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

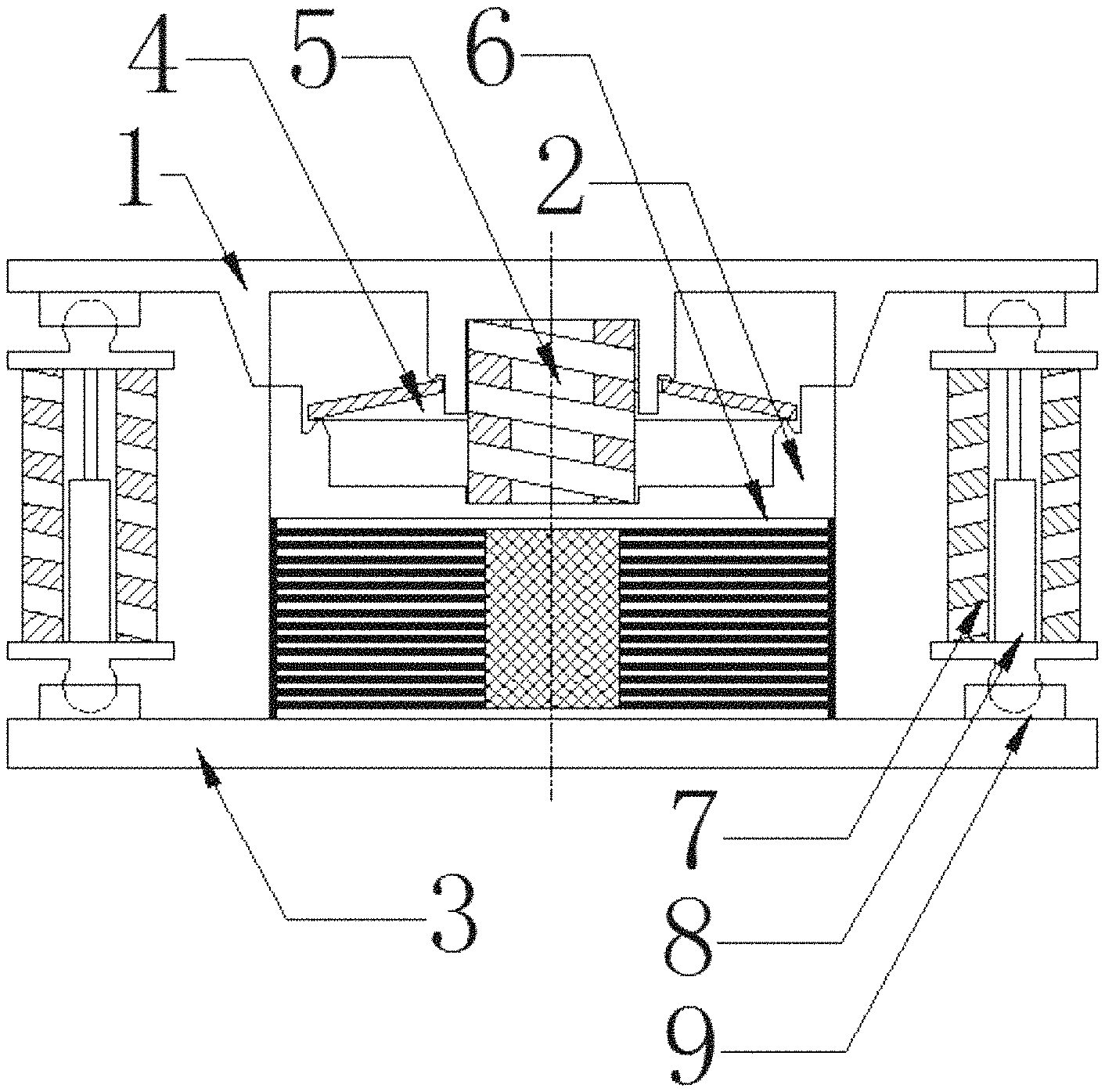

The present disclosure discloses a three-dimensional seismic and vibration isolator with adaptive stiffness property in both vertical and horizontal directions. The isolator comprises an upper connection plate, a middle plate, an lower connection plate, a disc spring, a pre-compressed helical springs, a laminated lead rubber bearing, and viscous dampers. The upper connection plate, the middle plate and lower connection plate are made of high strength low carbon steel. The upper connection plate and middle plate are tightly contacted by the occlusive design, to guide the vertical motion. The vertical isolation system is made up of the disc spring, pre-compressed helical spring, and viscous damper. The horizontal isolation system comprises the laminated lead rubber bearing, pre-compressed helical spring and viscous damper. The disclosure adopts the theory of nonlinear adaptive vibration control technology and can be used to protect building structures or instruments from the seismic strikes or other environmental vibrations.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
TONGJI UNIVERSITYSHANGHAI 200092

International Classification(s)

loading....
  • 2018 Application Filing Year
  • F16F Class
  • 1040 Applications Filed
  • 708 Patents Issued To-Date
  • 68.08 % Issued To-Date

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Chen, Peng Shanghai, CN 449 2483
Zhou, Ying Shanghai, CN 191 1432

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 1 Citation Count
  • F16F Class
  • 79.55 % this patent is cited more than
  • 3 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges490124201 - 1011 - 200255075100125150175200225250275300325350375400425450475500525

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
3.5 Year Payment $1600.00 $800.00 $400.00 Nov 24, 2025
7.5 Year Payment $3600.00 $1800.00 $900.00 Nov 24, 2029
11.5 Year Payment $7400.00 $3700.00 $1850.00 Nov 24, 2033
