Hand tool with a handle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2022
Grant Date -
May 2, 2019
app pub date -
Dec 26, 2018
filing date -
Apr 2, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

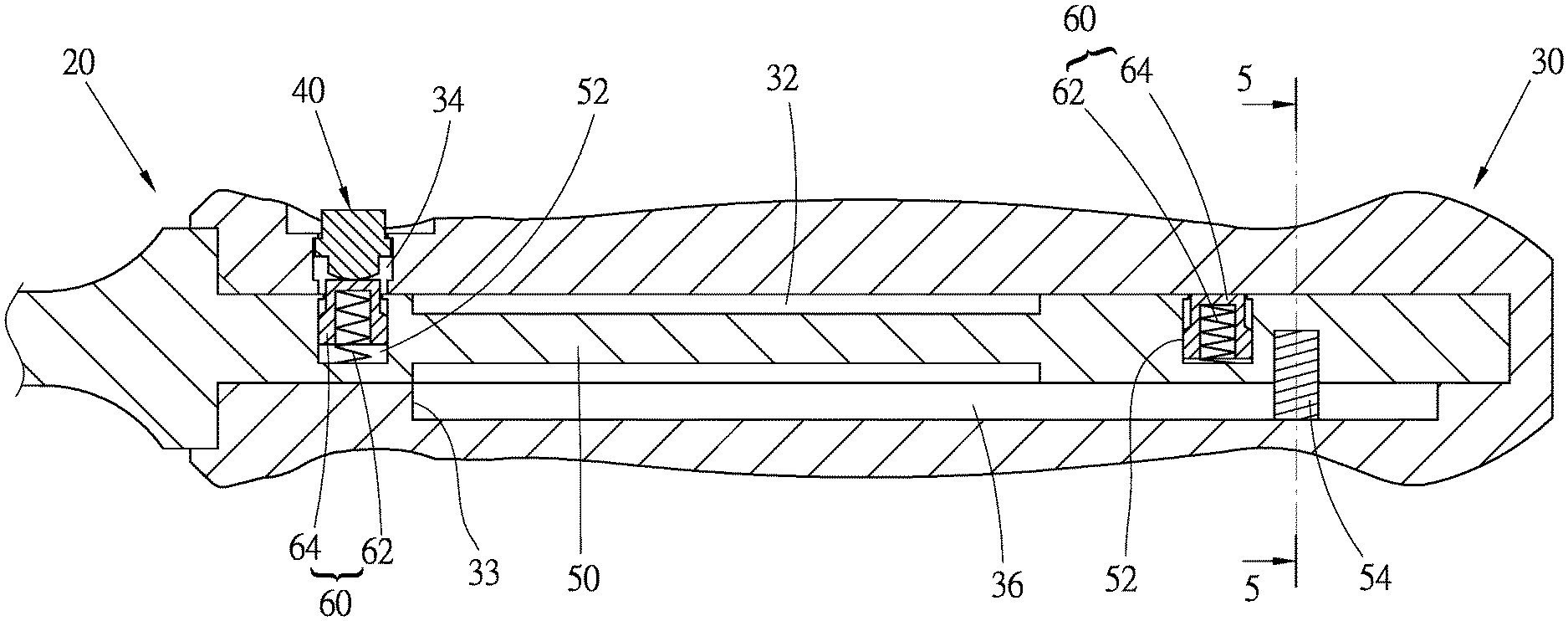

A hand tool includes a handle, a press member, a shank body and multiple latch assemblies. The handle is formed with a receiving cavity and a locating hole in communication with the receiving cavity. The press member is movably disposed in the locating hole. The shank body is fitted in the receiving cavity and movable relative to the handle. The shank body is formed with multiple sockets. The latch assemblies are respectively mounted in the sockets. When the shank body is moved, (for example, slid or rotated) relative to the handle to make one of the sockets aligned with the locating hole, the latch assembly latches the shank body with the handle. When pressing the press member, the latch assembly unlatches the shank body from the handle, the shank body is movable relative to the handle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B25B Class
- 867 Applications Filed
- 621 Patents Issued To-Date
- 71.63 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 24, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 24, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 24, 2033 |
