Length measuring instrument, code, and code conversion method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 17, 2022
Grant Date -
Mar 5, 2020
app pub date -
Nov 11, 2019
filing date -
Nov 20, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

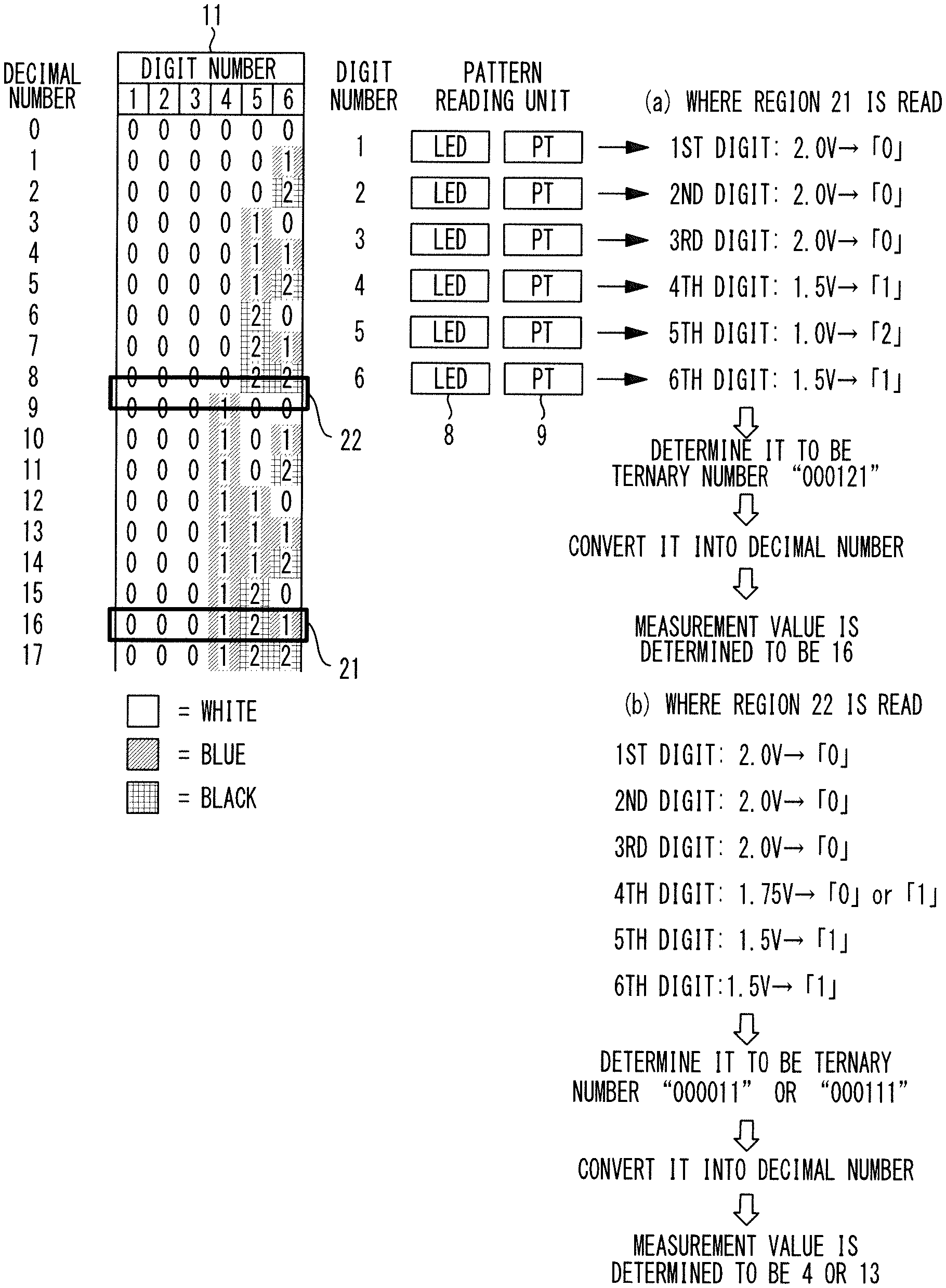

A length measuring instrument for measuring length with a measure includes: a measure on which a code is printed, a plurality of patterns each allotted to a different number being arranged, each of the patterns having digits to which an N-notation number (N being 3 or greater) is allotted, each of the digits having a different color corresponding to the allotted numerical value, the patterns being arranged in ascending order or descending order, a Hamming distance between patterns adjacent to each other in an array direction being 1, an amount of change in numerical value at the same digit between the adjacent patterns being 1 in the code; a reading unit that optically reads patterns printed on the measure; and a measuring unit that measures a length of a measurement target from a result of the reading by the reading unit.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03M Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 17, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 17, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 17, 2033 |
