Separating solids from liquids in a drilling fluid
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
May 10, 2022
Grant Date -
Nov 25, 2021
app pub date -
May 20, 2020
filing date -
May 20, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

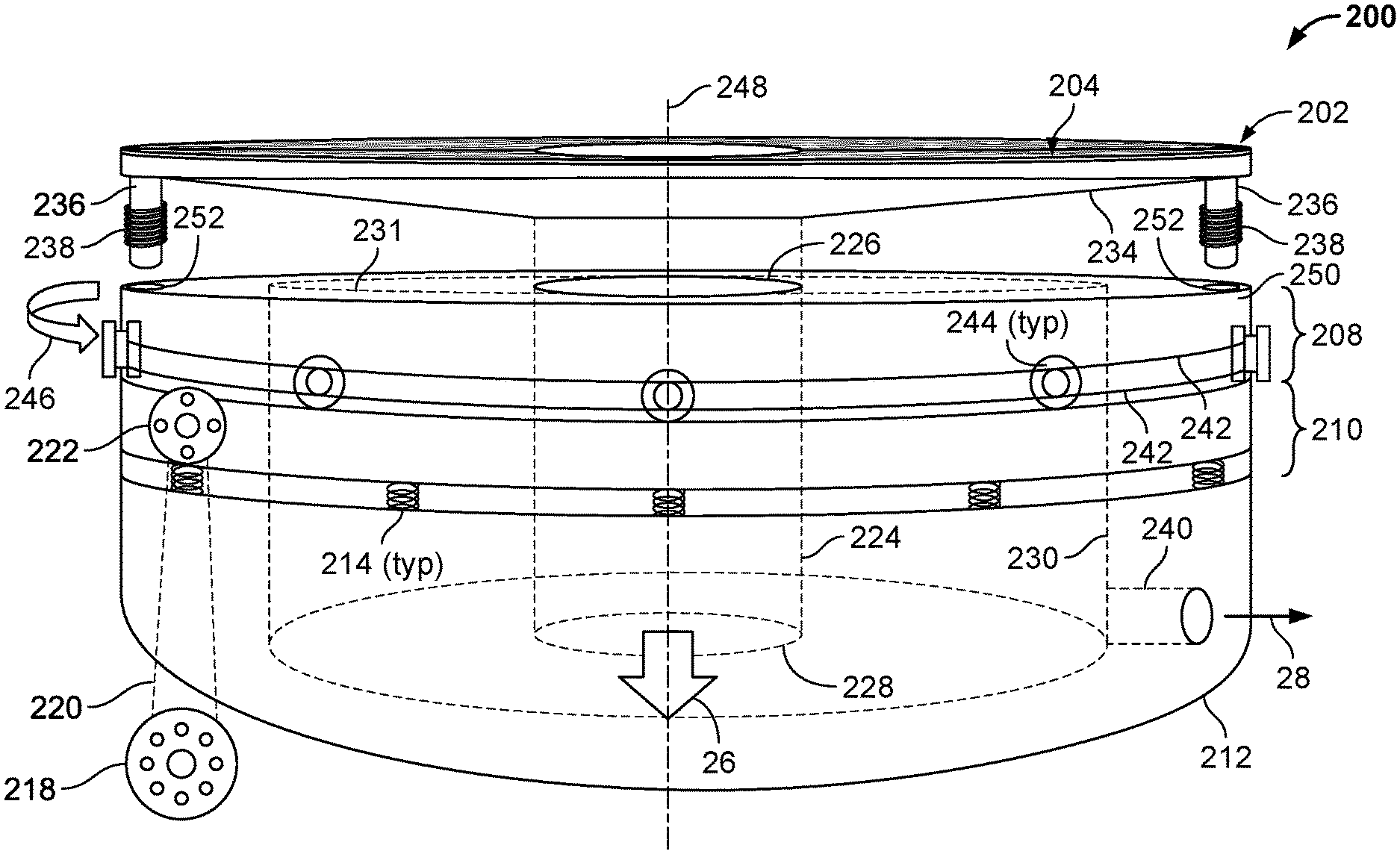

A drilling fluid shaker screen system includes a screen assembly that includes a screen including a plurality of screen sections. A first screen section includes a first screen mesh size and a second screen section includes a second screen mesh size different than the first screen mesh size. The drilling fluid shaker screen system further includes a rotation assembly mounted to the screen assembly. The rotation assembly includes one or more rollers moveable to rotate the screen assembly about an axis of rotation. The drilling fluid shaker screen system further includes a motor assembly coupled to the screen assembly and configured to vibrate the screen assembly. A housing includes a cuttings outlet that is fluidly coupled to a cuttings inlet formed in the screen and a liquid outlet separate from the cuttings outlet that is fluidly coupled to the plurality of screen sections.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2020 Application Filing Year
- B07B Class
- 160 Applications Filed
- 115 Patents Issued To-Date
- 71.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B07B Class
- 80 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 10, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 10, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 10, 2033 |
