Tire assembly comprising a breakable structure and a supporting structure
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
May 10, 2022
Grant Date -
Nov 28, 2019
app pub date -
Jan 10, 2018
filing date -
Jan 10, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

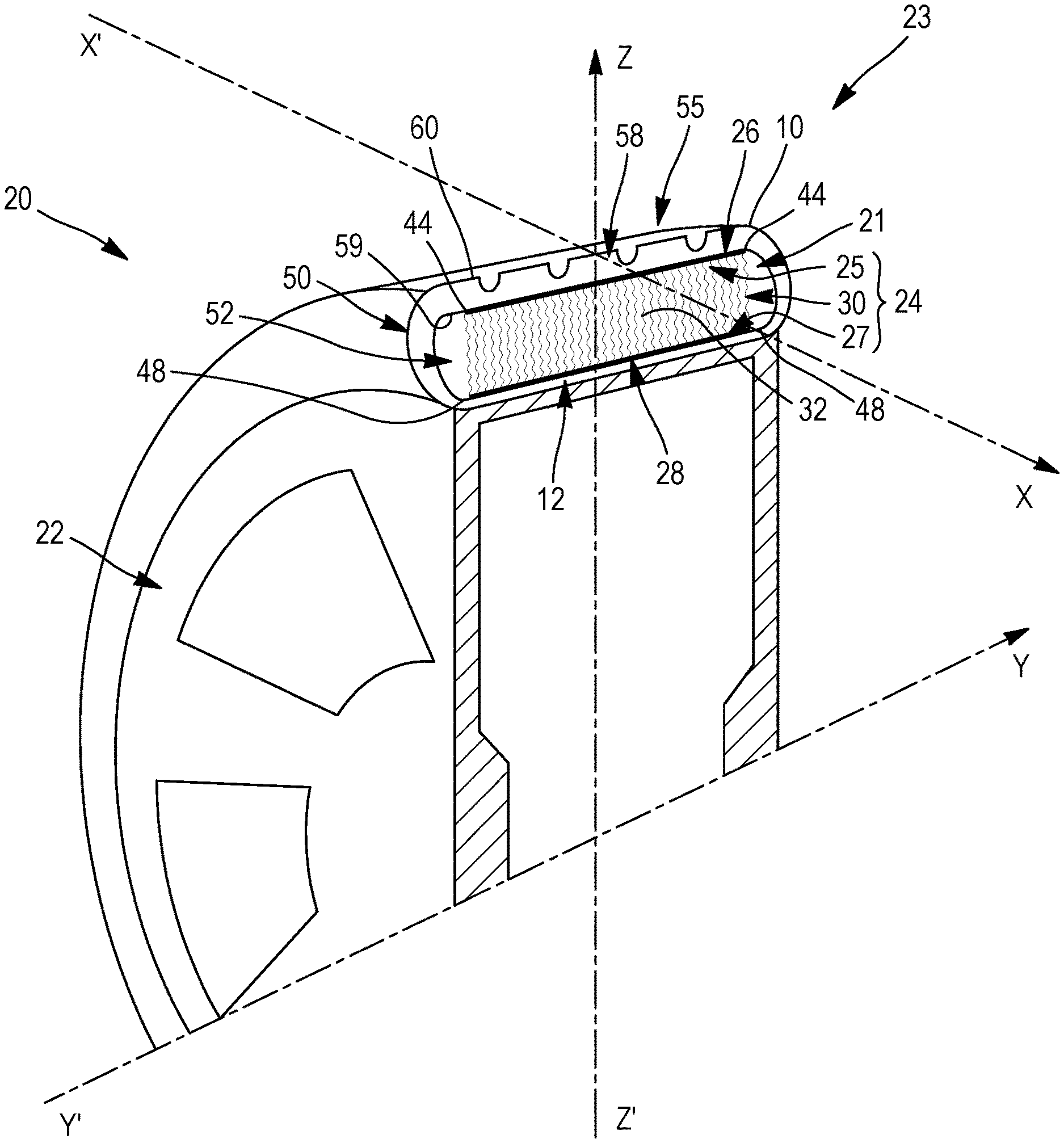

The assembly (24) comprises: a first structure (10) extending in a first overall direction (G1), a second structure (12), and a bearing structure (30) comprising filamentary bearing elements (32) comprising at least one filamentary bearing portion (74) extending between the first structure (10) and the second structure (12), the first structure (10) being arranged such that, for a length at rest L of the first structure (10) in the first overall direction (G1), the elongation at maximum force Art of the first structure in the first overall direction (G1) satisfies: Art≤(2π×H)/L, in which H0×K≤H where H0 is the mean straight-line distance between an internal face (42) of the first structure (10) and an internal face (46) of the second structure (12) when each filamentary bearing portion (74) is at rest, and K=0.50.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B60C Class
- 1229 Applications Filed
- 736 Patents Issued To-Date
- 59.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60C Class
- 82.78 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 10, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 10, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 10, 2033 |
