Device for driving a stamping foil, stamping station and machine, and method for controlling the driving of a stamping foil
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
May 10, 2022
Grant Date -
Jun 3, 2021
app pub date -
Apr 20, 2018
filing date -
Apr 20, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

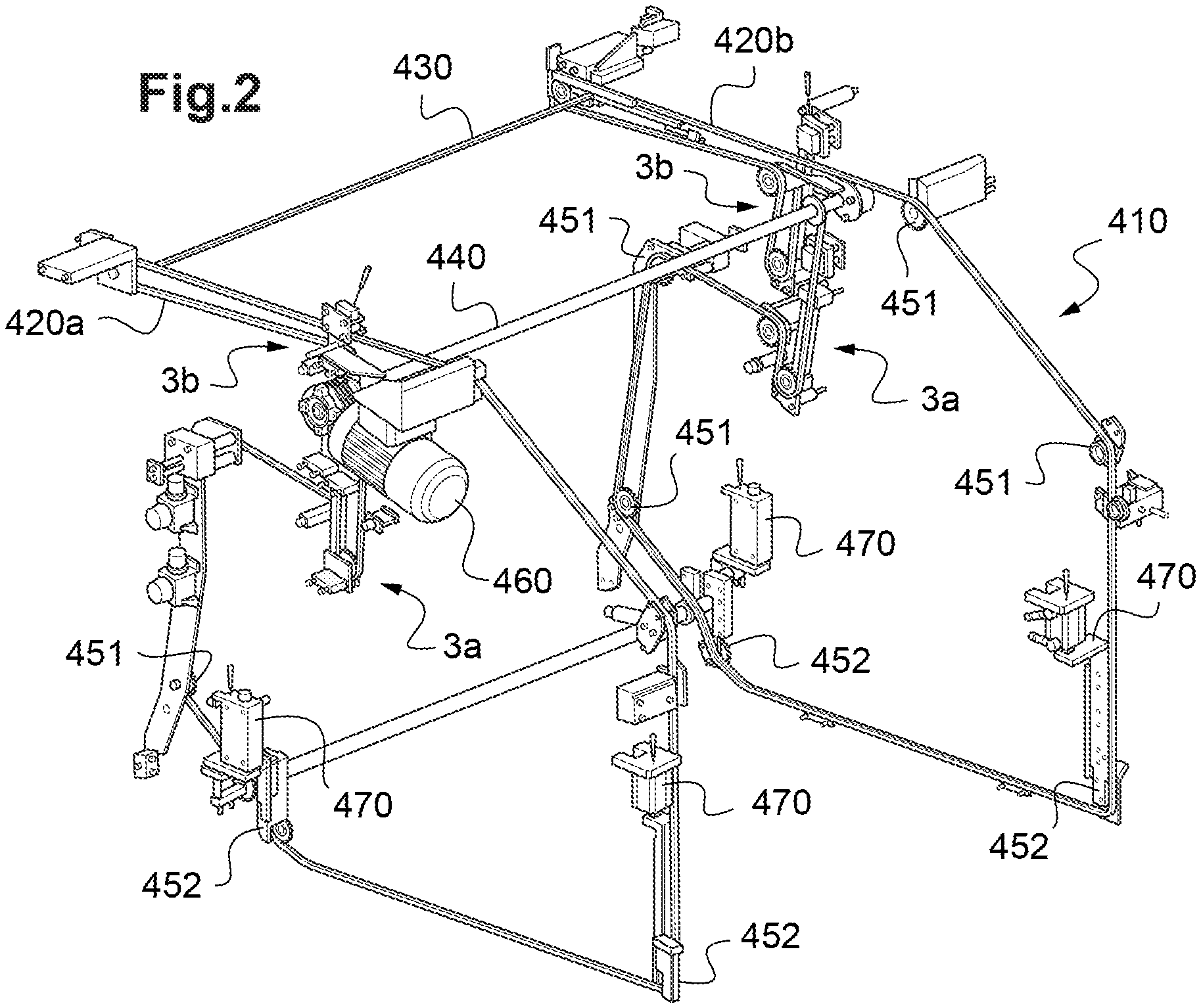

A device for driving a stamping foil over a path through a stamping machine is disclosed herein. The driving device comprises two foil-introduction chain-like elements and a drive member coupled to the foil-introduction chain-like elements for driving the foil-introduction chain-like elements notably through a platen press of a stamping machine. The driving device further comprises at least one first load-measurement device comprising a first detector configured to measure a parameter indicative of the load applied by the drive member for driving the foil-introduction chain-like elements in a first direction, the at least one first load-measurement device being connected to a stamping-machine control unit configured to stop the driving by the drive member when the parameter indicative of the load applied by the drive member and measured by the first detector crosses a threshold.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B41M Class
- 823 Applications Filed
- 531 Patents Issued To-Date
- 64.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41M Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 10, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 10, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 10, 2033 |
