Alignment mark, substrate and manufacturing method therefor, and exposure alignment method
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Apr 26, 2022
Grant Date -
Jun 25, 2020
app pub date -
Sep 7, 2018
filing date -
Sep 7, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

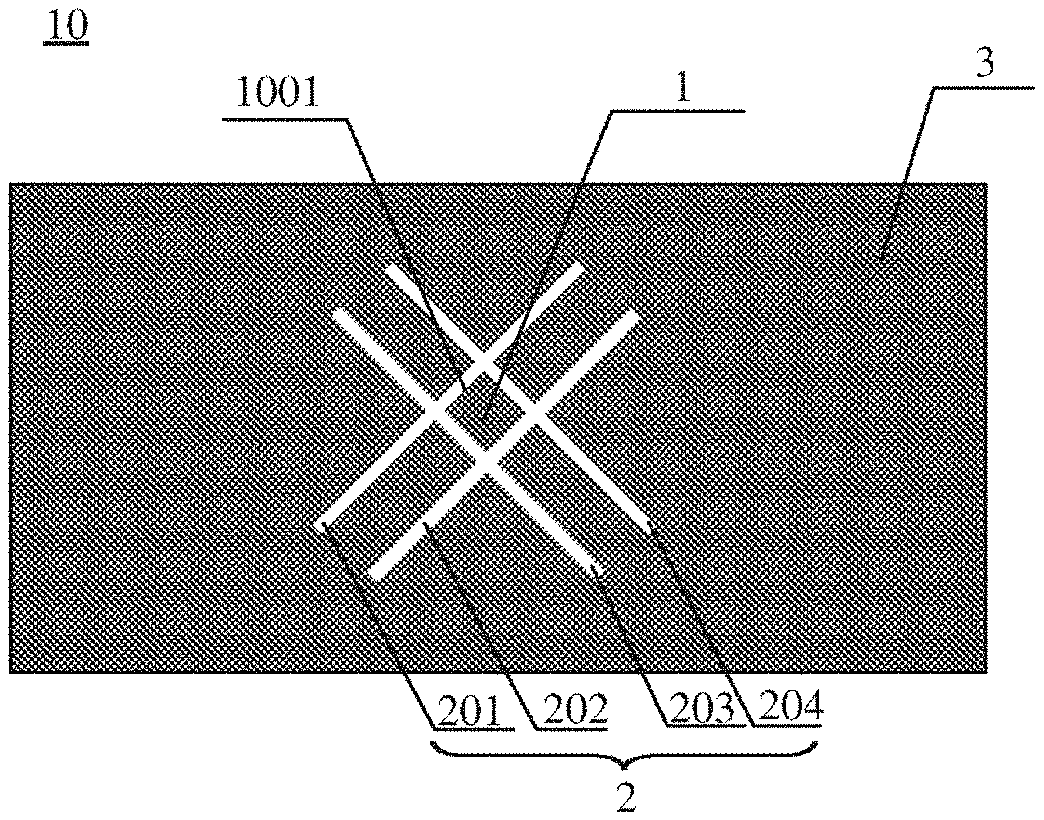

An alignment mark includes an alignment region, a peripheral region and a shielding region. The alignment region has an outer contour; the peripheral region is disposed around at least a part of the outer contour of the alignment region; the shielding region is disposed around at least a part of the outer contour of the alignment region and is non-overlapped with the peripheral region; and the alignment region and the shielding region are opaque, and the peripheral region is at least partially transparent.
