Surveying device, and calibration checking method and calibration checking program for surveying device
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Apr 19, 2022
Grant Date -
May 16, 2019
app pub date -
Oct 24, 2018
filing date -
Oct 24, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

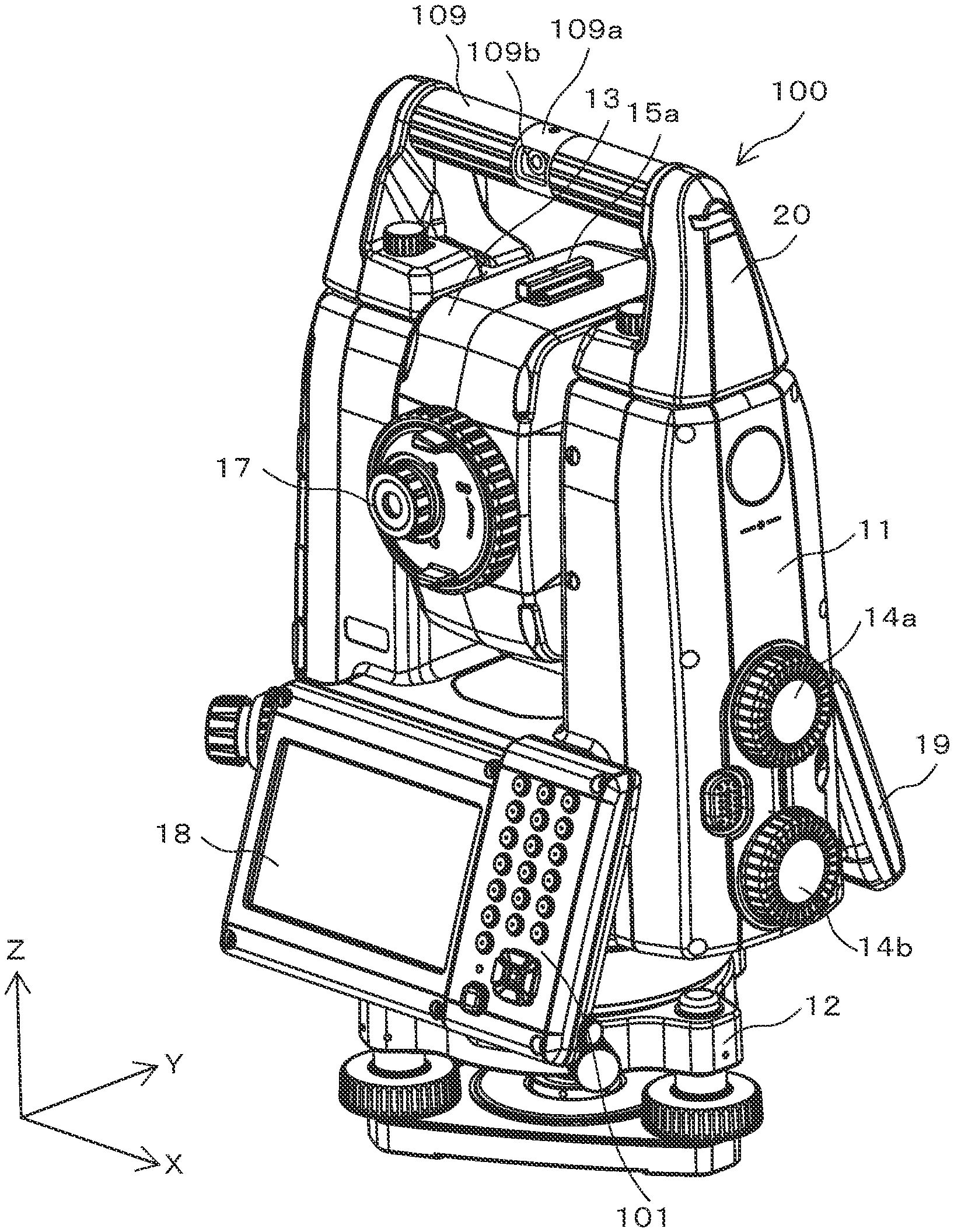

A technique is provided to enable check of a calibrated condition of a total station (TS) having a laser scanner in a surveying site. The TS includes an optical system for sighting an object, a laser positioning part that irradiates the object with laser light via the optical system to position the object, and a plane crossing location identifying part that identifies a crossing location of multiple planes constituting a three-dimensional structure as a first location, on the basis of the positioning result from the laser positioning part. The TS also includes a laser scanner that performs laser scanning in an area containing the crossing location, a plane crossing location calculator that calculates the crossing location as a second location on the basis of laser scanning data from the laser scanner, and a comparing part that compares the first location and the second location with each other.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Oct 19, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 19, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 19, 2033 |
