Generating radio frequency electromagnetic radiation
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Apr 12, 2022
Grant Date -
N/A
app pub date -
Oct 29, 2021
filing date -
Oct 29, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

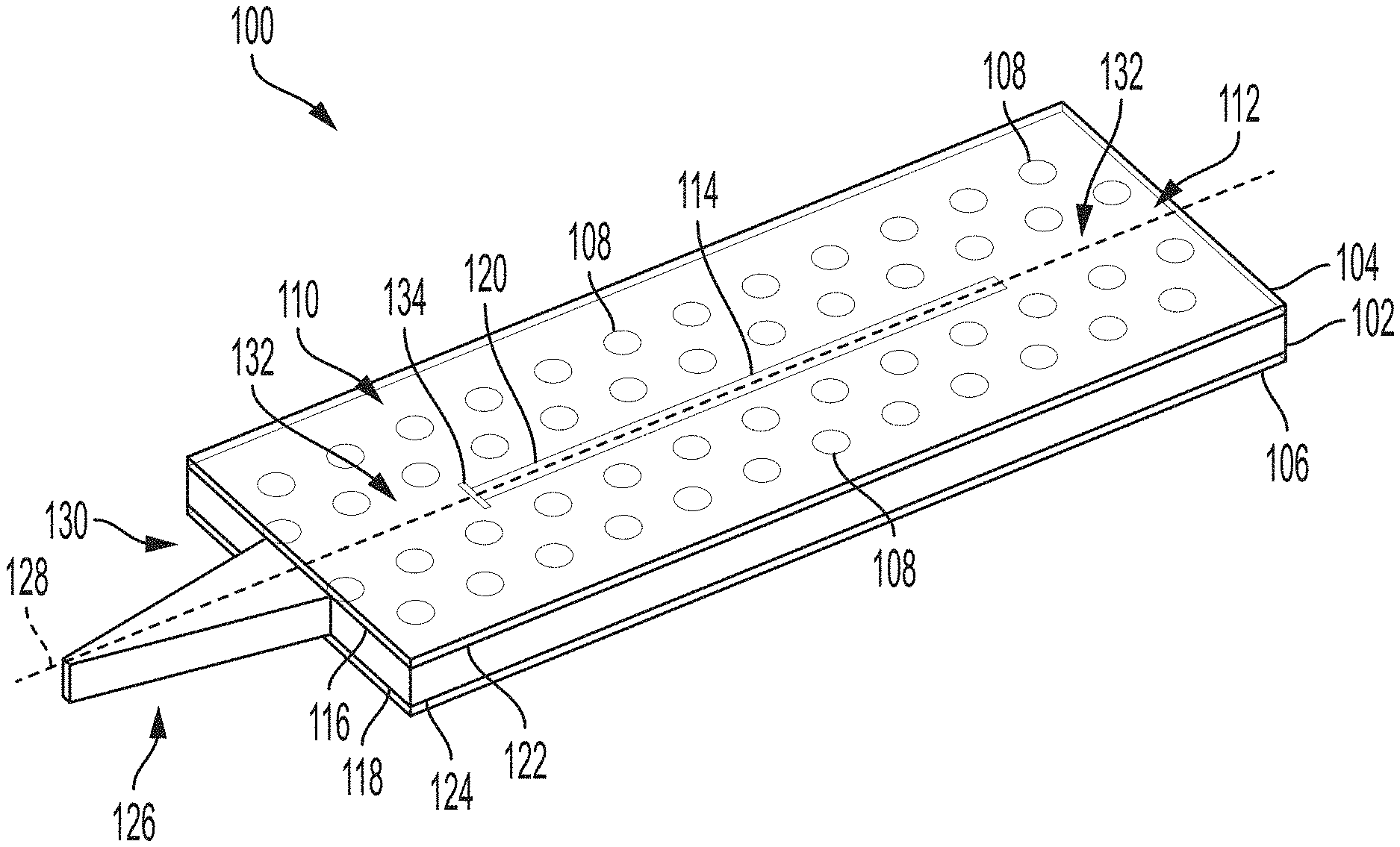

In a general aspect, a system for generating radio frequency (RF) electromagnetic radiation includes a maser having a photonic crystal structure and a vapor. The photonic crystal structure is formed of dielectric material and includes an array of cavities having a defect region disposed therein and an elongated slot disposed in the defect region. The array of cavities and the elongated slot define a waveguide having a waveguide mode. The vapor is disposed in the elongated slot and includes one or more input electronic transitions and an output electronic transition coupled to the one or more input electronic transitions. The output electronic transition is operable to emit a target RF electromagnetic radiation and is resonant with the waveguide mode. The system also includes a laser system configured to provide input optical signals to the elongated slot and signal processing electronics in communication with the laser system.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H04B Class
- 62.69 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Oct 12, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 12, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 12, 2033 |
