Apparatus for securing a side mirror to a vehicle
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Apr 12, 2022
Grant Date -
Feb 17, 2022
app pub date -
Aug 11, 2020
filing date -
Aug 11, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

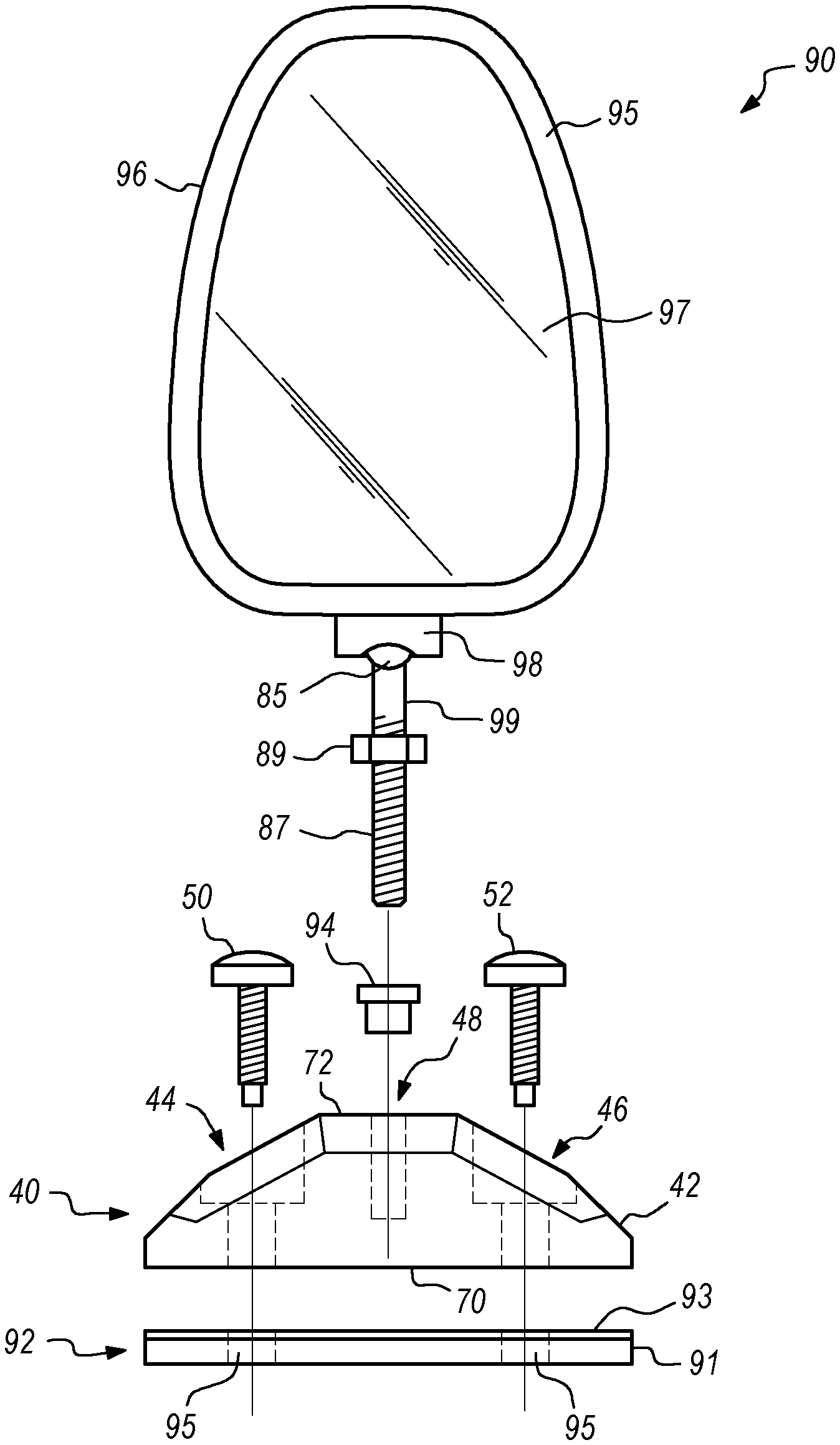

An apparatus for securing a side mirror to a vehicle includes a solid body having base and top surfaces. The base surface has a contour complementary to that of an exterior surface of the vehicle. First and second holes are formed through the solid body from the base surface to the top surface. Positioning the base surface face-to-face with the exterior surface of the vehicle aligns the first hole with a first threaded hole in the vehicle and aligns the second hole with a second threaded hole in the vehicle. Each of the first and second holes has a counterbore that opens to the top surface of the rigid body. A third hole in the solid body opens to the top surface between the counterbores of the first and second holes, wherein the third hole is threaded to receive a threaded screw that attaches a mirror.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16B Class
- 82.17 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Oct 12, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 12, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 12, 2033 |
