Vehicle equipped with high pressure tank
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Apr 5, 2022
Grant Date -
Jul 30, 2020
app pub date -
Jan 27, 2020
filing date -
Jan 27, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

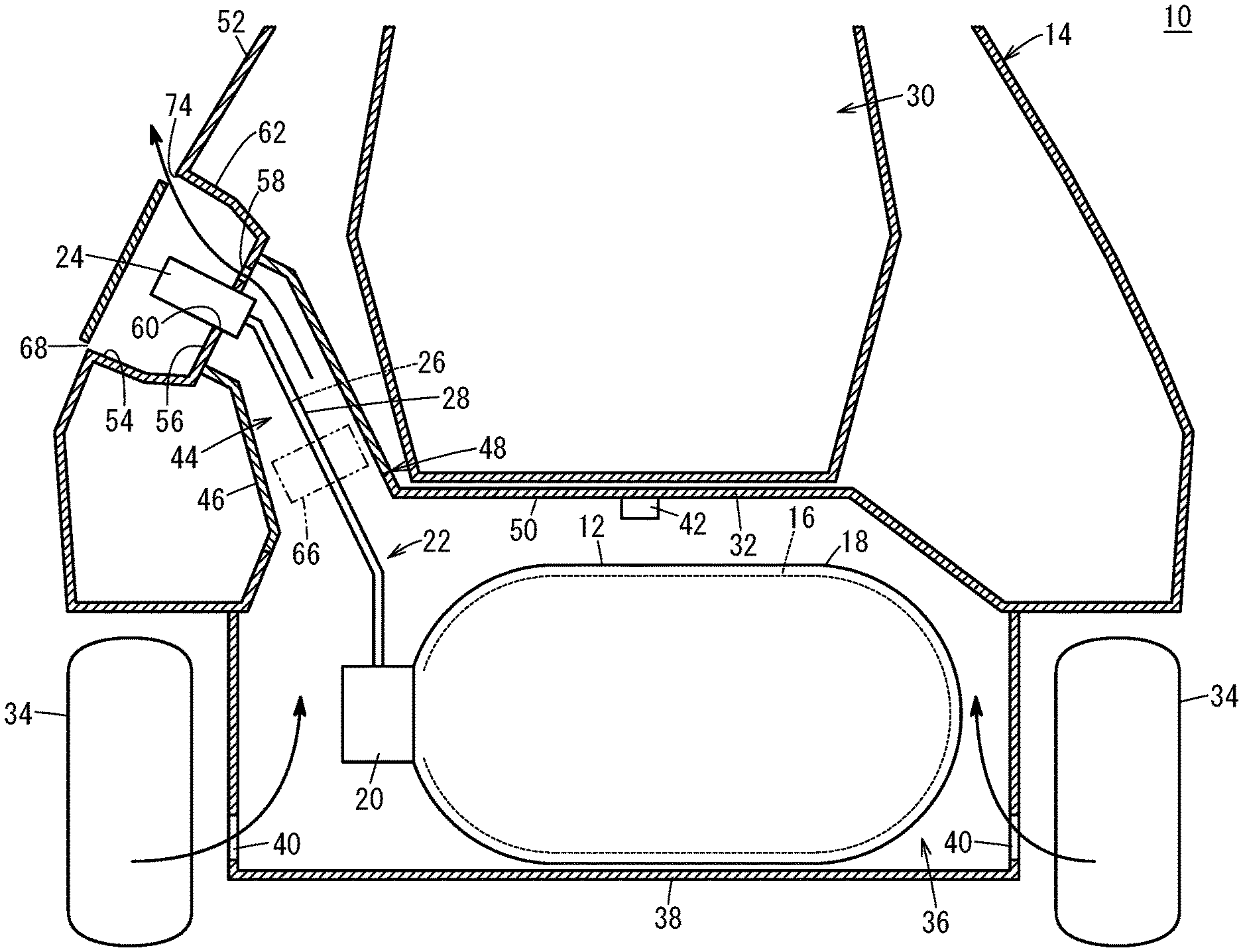

A vehicle equipped with a high pressure tank has mounted in the interior of a vehicle body a high pressure tank having a resin liner and a reinforced layer, the vehicle comprising a tank chamber, a filling port, a concave portion in which the filling port and a ventilation port are disposed, a fuel lid capable of opening and closing an opening of the concave portion, and a ventilation passage that allows communication between the ventilation port and the tank chamber. When the fuel lid is opened, the ventilation port is opened to the exterior of the vehicle body, whereas when the fuel lid is closed, the ventilation port is covered by the fuel lid in a state in which the ventilation port is allowed to communicate with the exterior of the vehicle body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B60K Class
- 2682 Applications Filed
- 1801 Patents Issued To-Date
- 67.16 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60K Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Oct 5, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 5, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 5, 2033 |
