Winding and scale configuration for inductive position encoder
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Mar 29, 2022
Grant Date -
Sep 24, 2020
app pub date -
Jun 10, 2020
filing date -
Jun 10, 2020
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

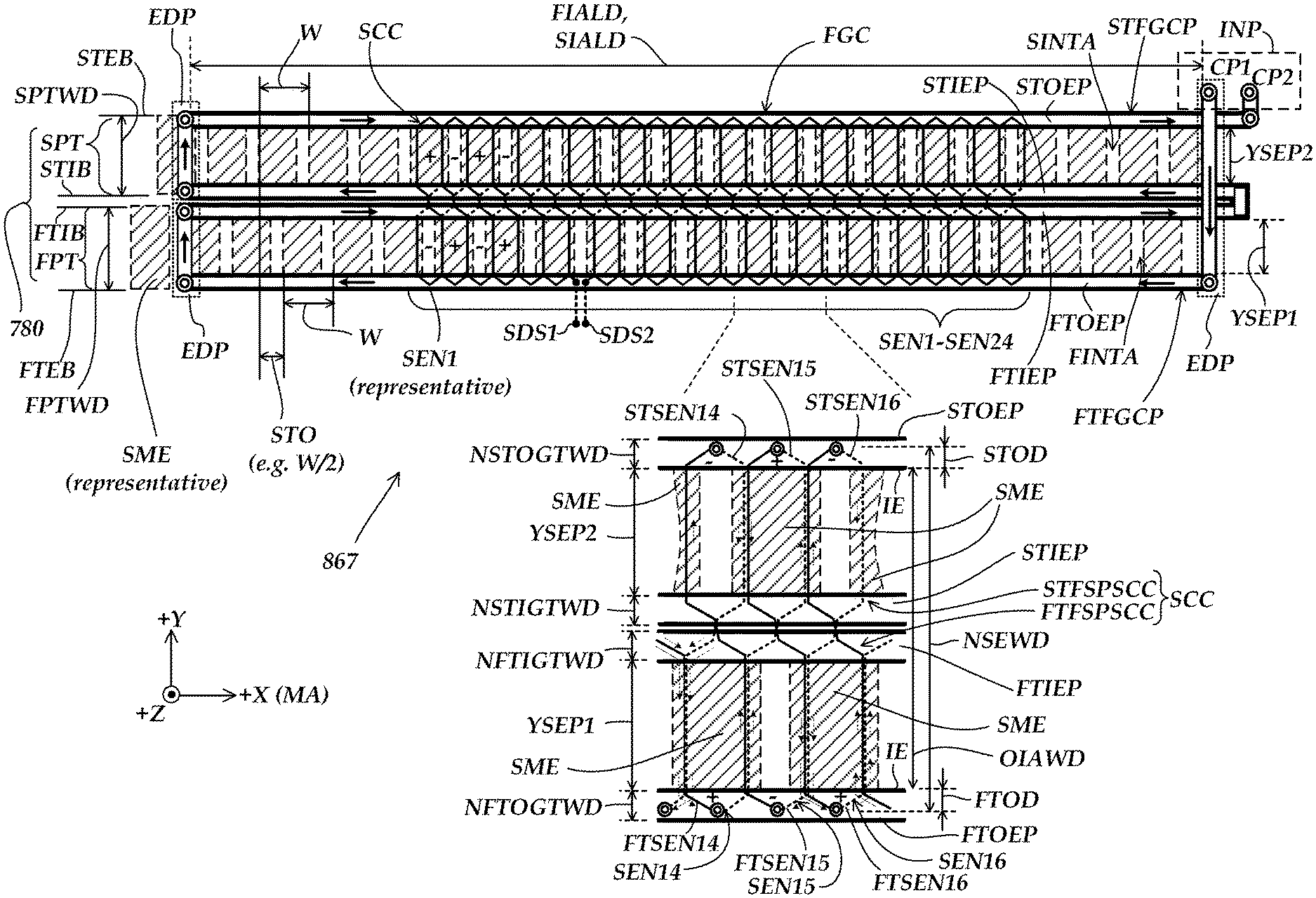

A pitch compensated inductive position encoder includes a scale comprising first and second tracks including periodic patterns having a wavelength W, a detector, and signal processing. The second track pattern may be shifted along the measuring direction by a pattern offset STO relative to the first track pattern. In the detector, first-track and second-track field generating coil portions generate fields in first and second interior areas aligned with the first and second pattern tracks, respectively. First and second sensing coil configurations that are aligned with the first and second tracks, respectively, are offset relative to one another by STO+/−0.5*W along the measuring direction. In various embodiments, the first and second sensing coil configurations may have the same sequence of individual coil polarities if the generated field polarities are different, and may have inverted or opposite sequences if the generated field polarities are the same.
