Culvert to ditch transitioning device
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Mar 15, 2022
Grant Date -
Sep 30, 2021
app pub date -
Mar 30, 2020
filing date -
Mar 30, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

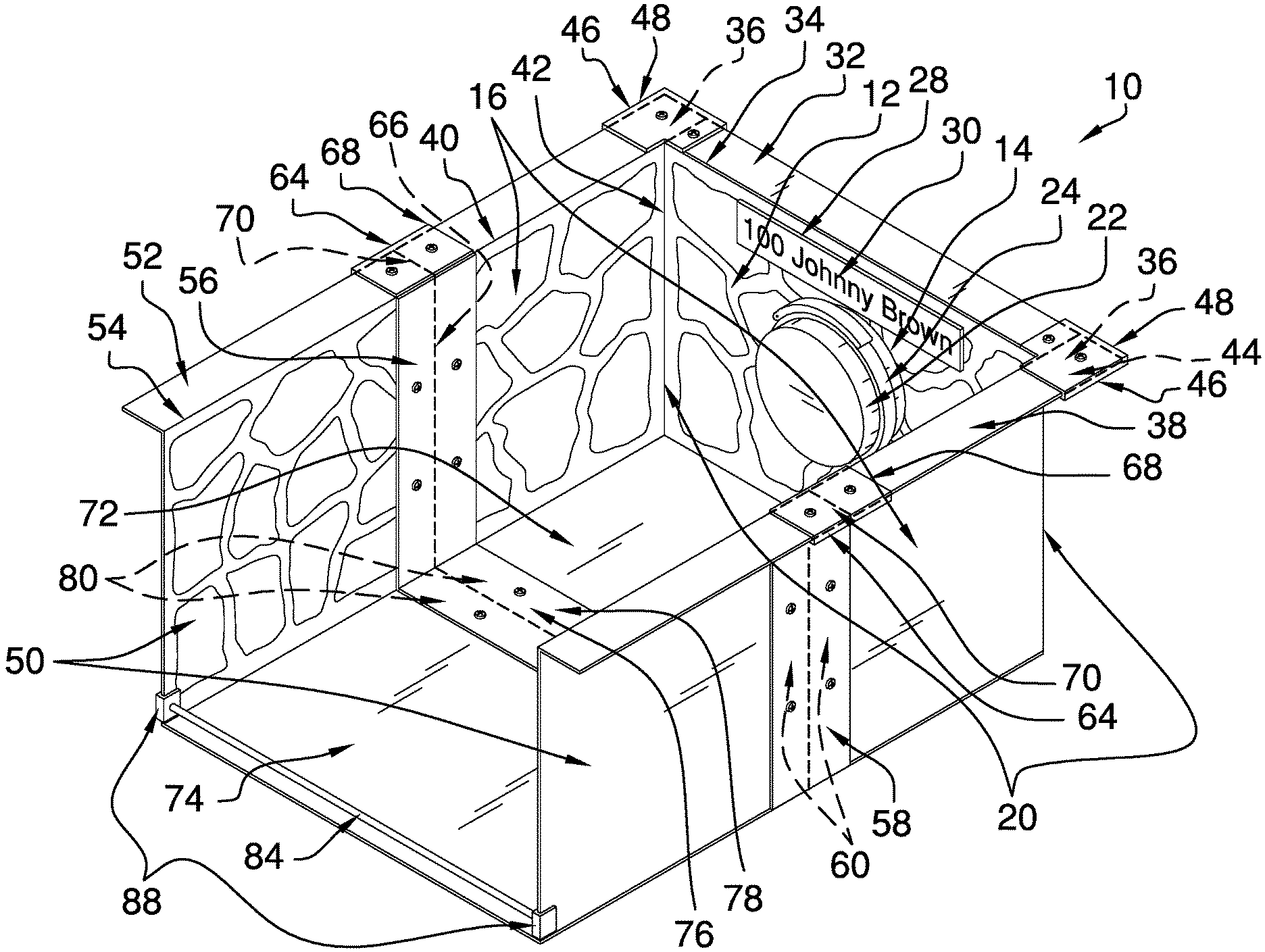

A culvert to ditch transitioning device for lining a ditch proximate to an end of a culvert includes an end panel, which has an orifice positioned therein, and a pair of side panels. A terminal segment of the culvert, which extends into the ditch, can be inserted through the orifice so that a first face of the end panel is in substantial abutment with an end embankment of the ditch. Each side panel is coupled to a respective opposed end of the end panel and extends substantially perpendicularly therefrom. The pair of the side panels lines side embankments of the ditch, proximate to the end embankment. The end embankment and the lined portions of the side embankments thus no longer require lawn care, such as mowing, trimming, and weeding.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- E01F Class
- 207 Applications Filed
- 118 Patents Issued To-Date
- 57.01 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E01F Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Sep 15, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 15, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 15, 2033 |
