Method for actuating at least one main headlamp of a lighting unit of a vehicle, lighting unit, computer program product and machine-readable medium
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Mar 15, 2022
Grant Date -
Aug 13, 2020
app pub date -
Aug 23, 2018
filing date -
Aug 23, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

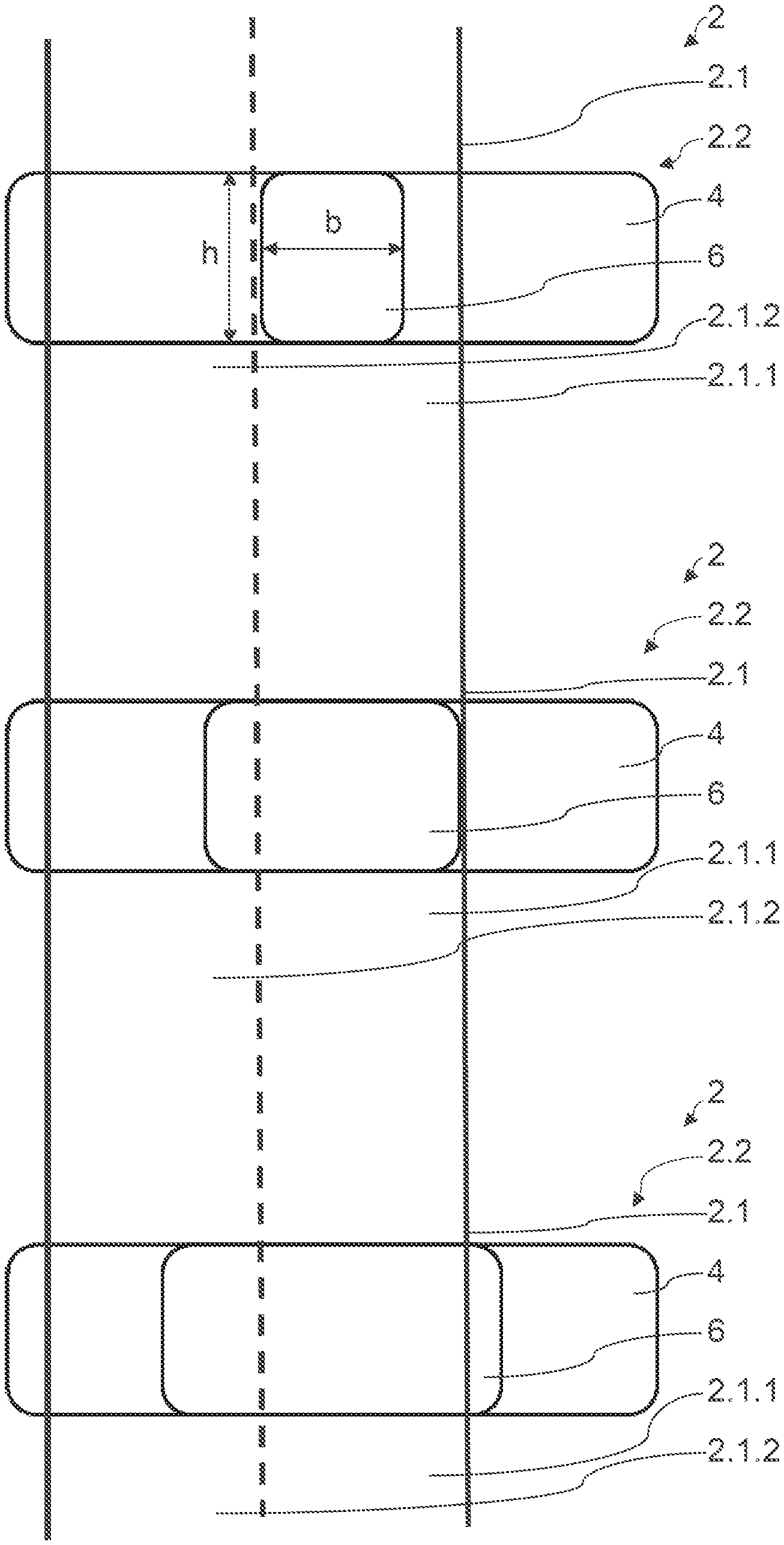

A procedure is provided for actuating at least one main headlamp of a vehicle. The vehicle includes a detection device, and a light control for the automatic actuation of the main headlamp. The main headlamp illuminates an outer area of the area ahead of the vehicle in a first light intensity, and a core area of the area ahead of the vehicle at least partially enclosed by the outer area with a higher second light intensity. The core area is adjusted by the light control in terms of dimension and/or position. In order to improve the visual perceptibility to a vehicle driver of the area ahead of the vehicle, the core area is adjusted in relation to the outer area, and the outer area is adjusted by the light control in such a way depending on the input signal of the light control in terms of dimension and/or position that the vehicle's road and peripheral surroundings) bordering the road in the area ahead of the vehicle are illuminated by the outer area.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B60Q Class
- 1629 Applications Filed
- 1229 Patents Issued To-Date
- 75.45 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60Q Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Sep 15, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 15, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 15, 2033 |
