Connecting rod
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 28, 2021
Grant Date -
Aug 15, 2019
app pub date -
Jan 24, 2019
filing date -
Feb 15, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

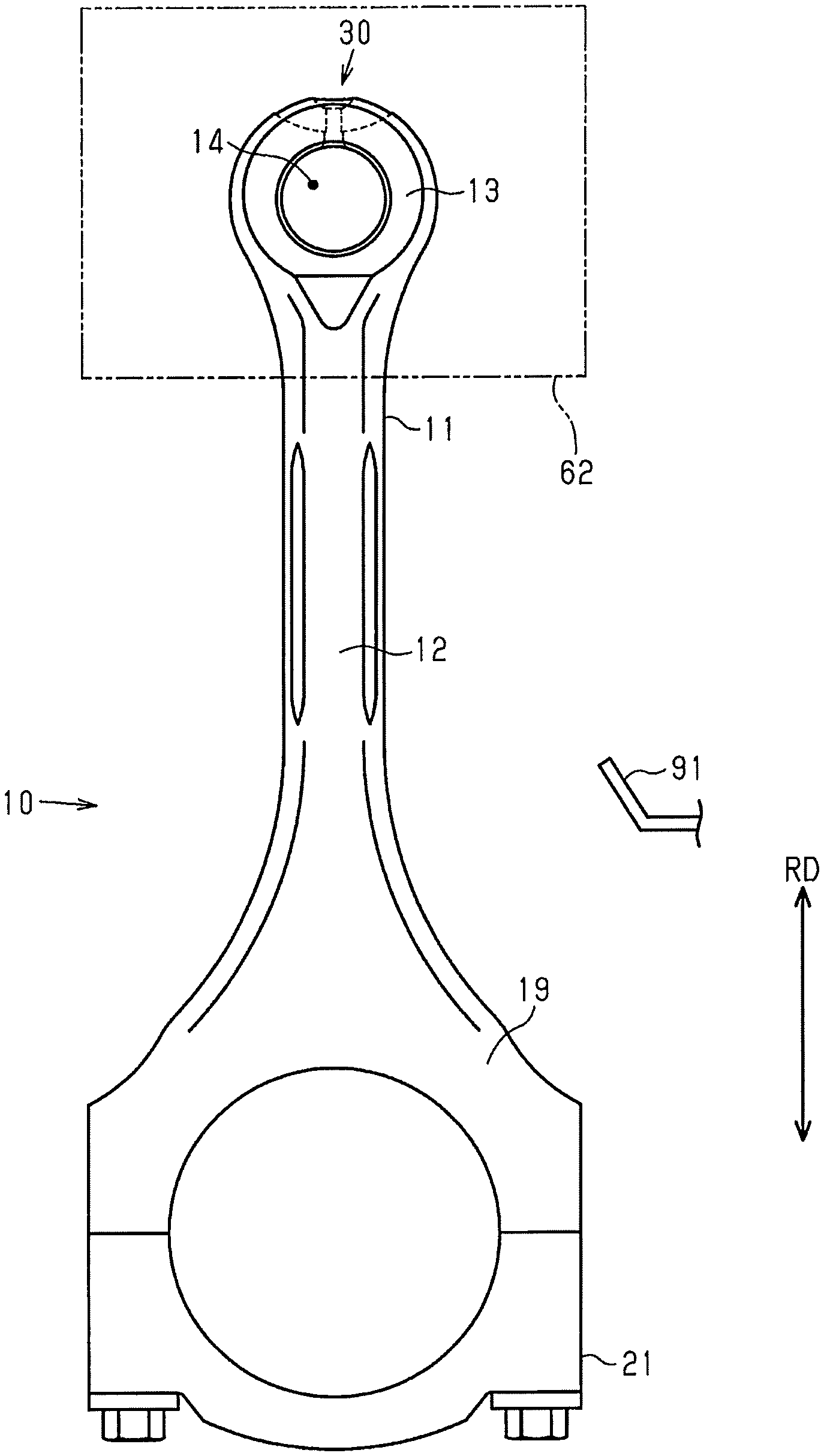

A small end of a connecting rod includes an oil supply hole extending from an outer surface to an inner surface of the small end. The oil supply hole includes an oil storage groove and a communication hole. The oil storage groove is recessed from the outer surface and extends along the circumference of the small end. The communication hole extends through a bottom surface of the oil storage groove and connects the outer and inner surfaces. Opposite edges of the oil storage groove contact the outer surface in a direction the oil storage groove extends. The bottom surface of the oil storage groove has an opening contacting a wall surface of the communication hole. When the small end includes a distal end of the connecting rod defining a top, the opposite edges are located between the top and the opening in the bottom surface of the oil storage groove.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- F01M Class
- 328 Applications Filed
- 226 Patents Issued To-Date
- 68.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01M Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 22, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 22, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 22, 2033 |
