System and method of controlling a vehicular headlamp for preventing a shadow area
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 22, 2022
Grant Date -
May 28, 2020
app pub date -
Jun 18, 2019
filing date -
Nov 27, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

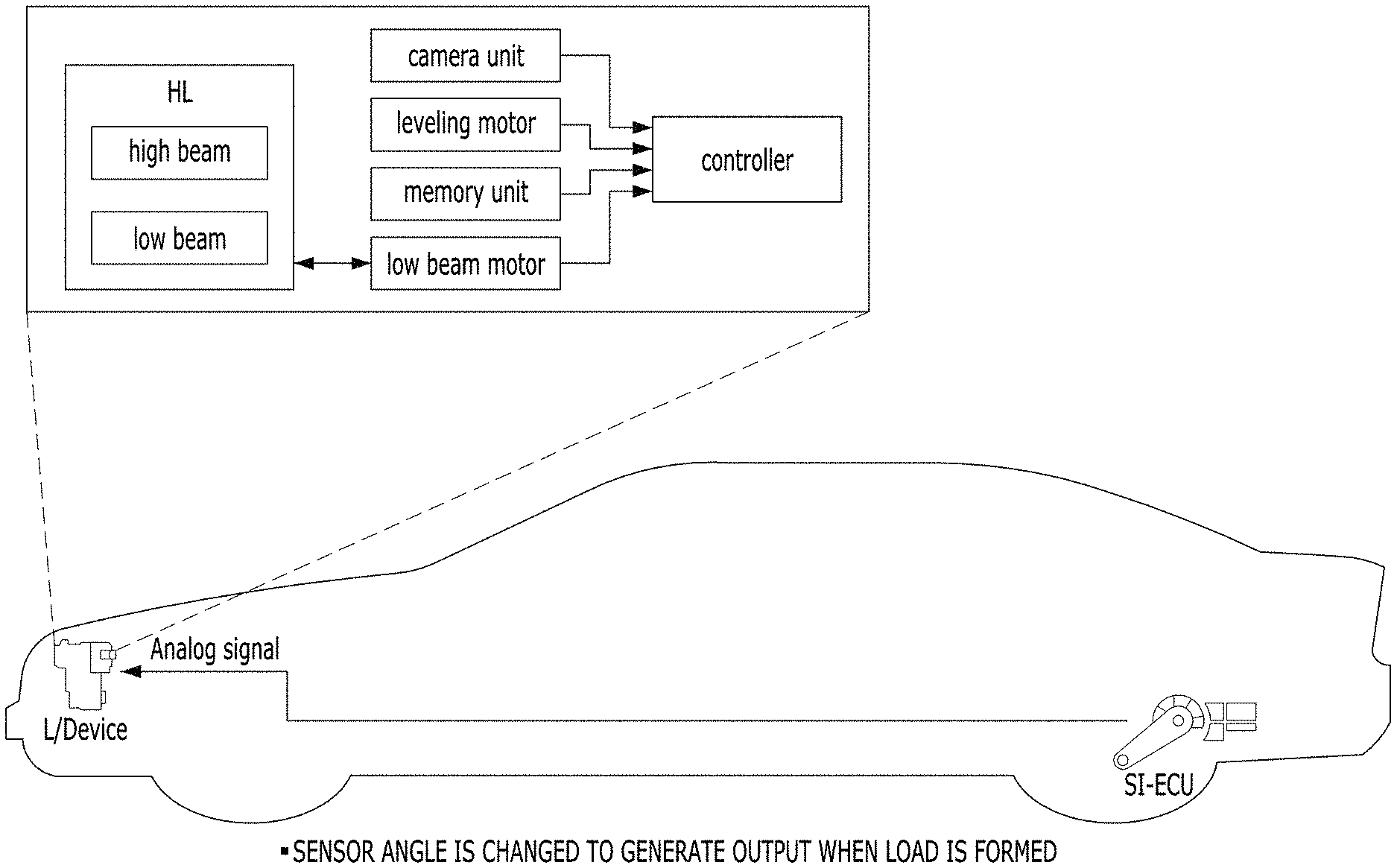

A system and method control a vehicular headlamp for preventing a shadow area between a low beam and a high beam of a headlamp using a camera unit. The method includes periodically determining whether a high beam of the vehicular headlamp is lit or illuminated. Upon determining that the high beam is illuminated, the method includes determining whether a darkness cell is formed in front image data of the vehicle, which is transmitted from a camera unit. Upon determining that the darkness cell is formed, the method includes changing a leveling motor to be directed upward by 1 step and storing a changed number of steps. Upon determining that the darkness cell is not formed, the method includes driving the leveling motor by the pre-stored number of steps.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60R Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 22, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 22, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 22, 2033 |
