Vacuum circuit interrupter with piezoelectric actuator and vacuum circuit breaker incorporating same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 15, 2022
Grant Date -
Jun 27, 2019
app pub date -
May 8, 2017
filing date -
May 10, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

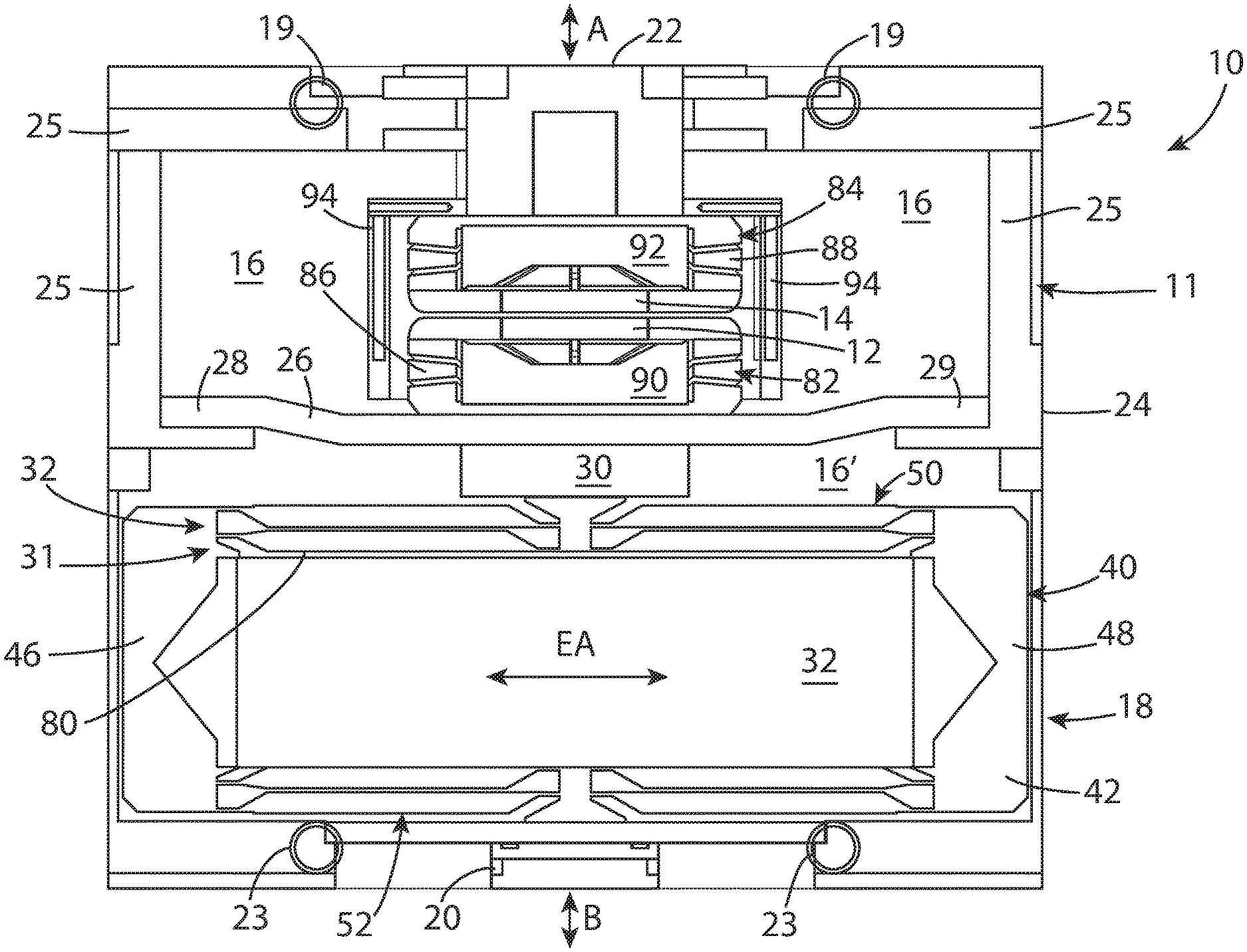

A vacuum circuit breaker comprises a vacuum interrupter operable between a closed state and an open state, and an actuator. The actuator comprises a piezoelectric driving element that is expandable and contractable along an expansion axis in response to an electrical input signal. The actuator further comprises a mechanical amplifying structure extendable along an actuation axis and being mechanically coupled to the piezoelectric driver such that expansion or contraction of said piezoelectric driving element causes the amplifying structure to extend or retract along the actuation axis. The mechanical amplifying structure is coupled to the vacuum interrupter for operating the vacuum interrupter between said closed and open states.
