Pad for disc brakes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 15, 2022
Grant Date -
Oct 22, 2020
app pub date -
Mar 20, 2020
filing date -
Apr 18, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

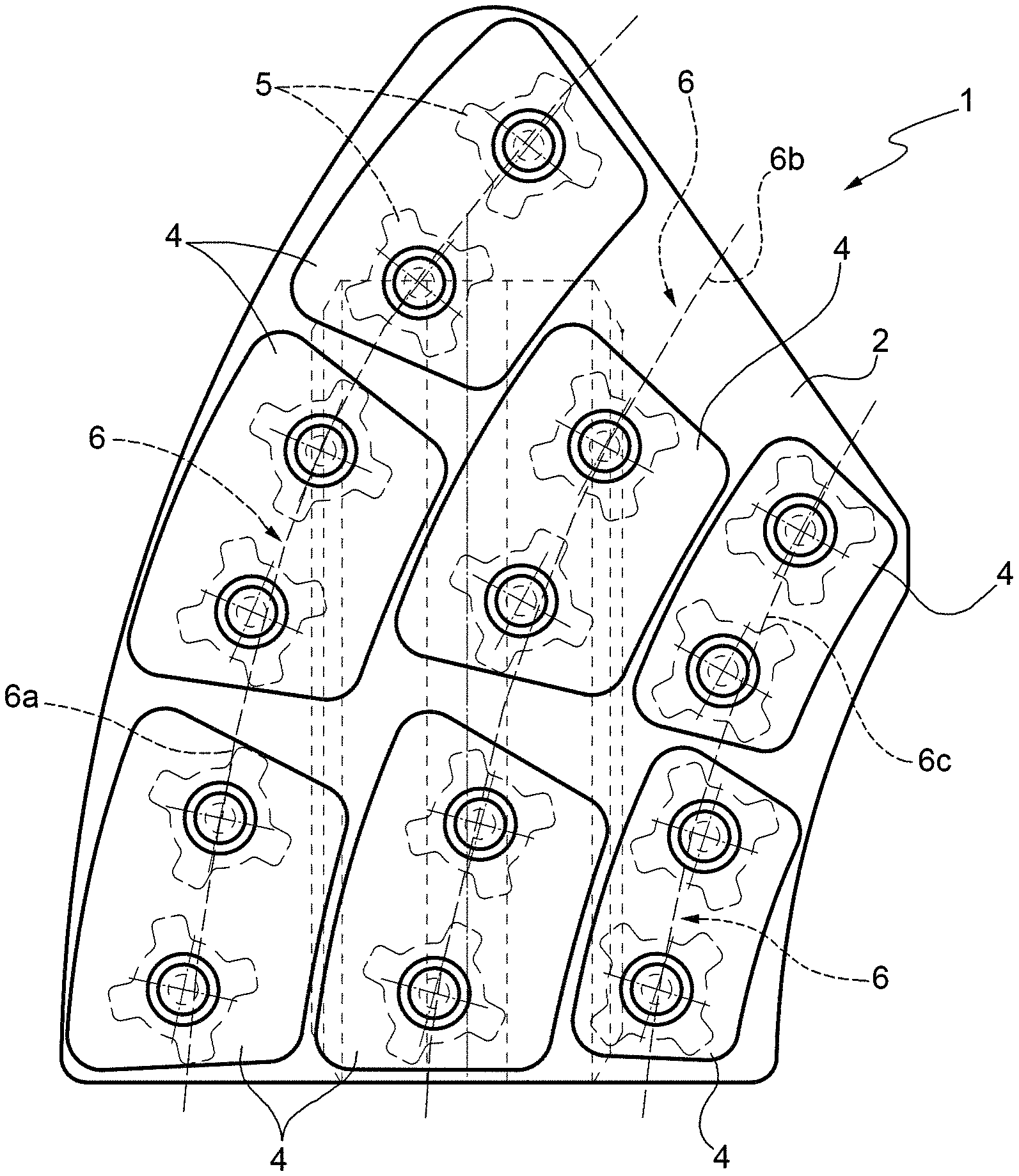

A pad for disc brakes for railway vehicles is provided. The pad includes a base plate and friction elements fixed to the plate and arranged in at least two arcuate rows. Each row has friction elements with one same friction surface and a total friction surface ranging from 40% to 80% of the total friction surface of the friction elements of a neighboring external row. Each friction element of at least one neighboring internal row has a friction surface that is less than the friction surface of each friction element of the neighboring external row. The friction elements of each row are arranged on the base plate to act on a surface portion of a brake disc, which partially overlaps surface portions of the disc on which friction elements of a neighboring external row and friction elements of a neighboring internal row act.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B61H Class
- 32 Applications Filed
- 17 Patents Issued To-Date
- 53.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61H Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 15, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 15, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 15, 2033 |
