Closed cycle engine with bottoming-cycle system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 15, 2022
Grant Date -
Nov 26, 2020
app pub date -
Jun 12, 2020
filing date -
May 21, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

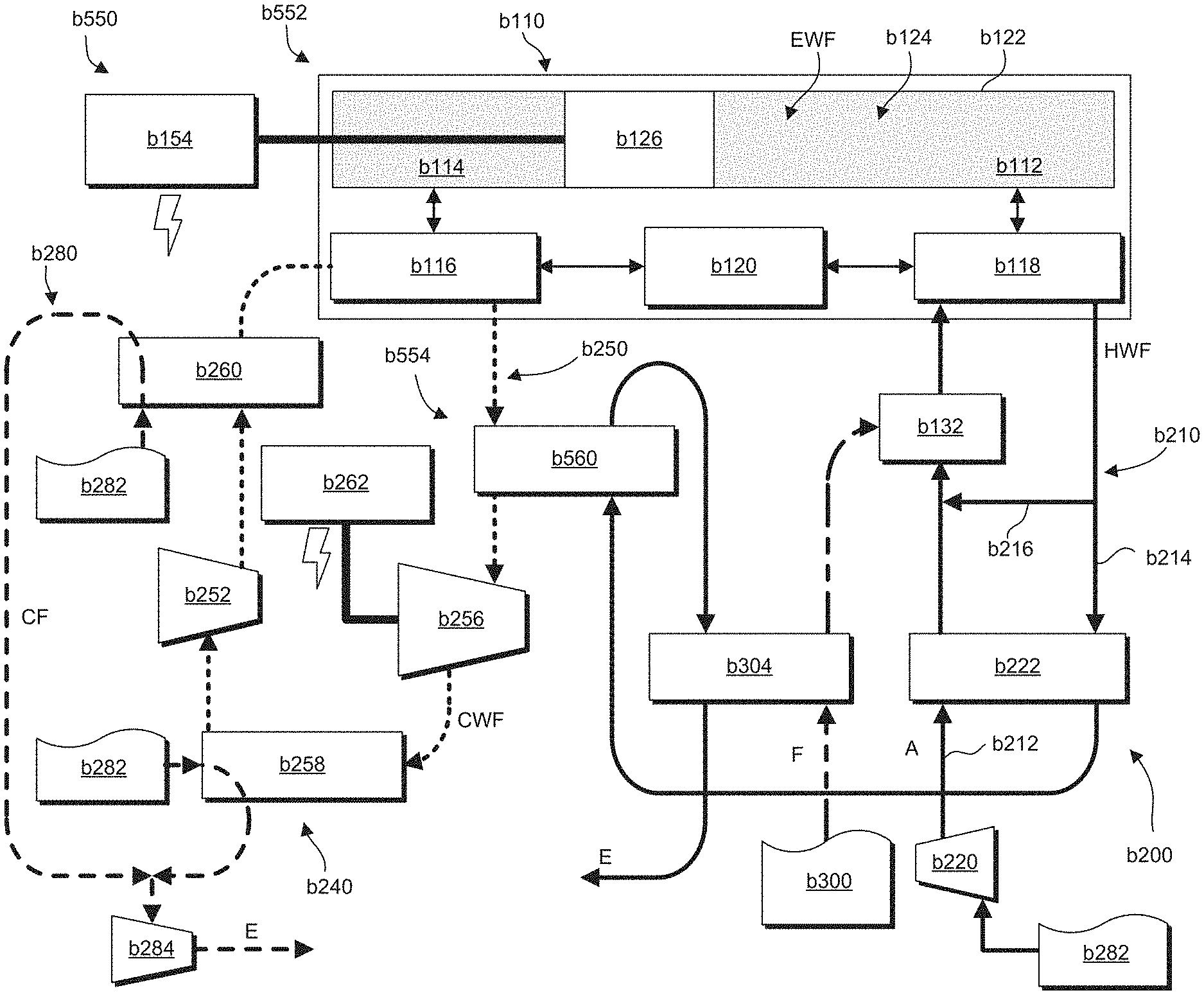

Systems and methods for converting energy are provided. In one aspect, the system includes a closed cycle engine defining a cold side. The system also includes a bottoming-cycle loop. A pump is operable to move a working fluid along the bottoming-cycle loop. A cold side heat exchanger is positioned along the bottoming-cycle loop in a heat exchange relationship with the cold side of the closed cycle engine. A constant density heat exchanger is positioned along the bottoming-cycle loop downstream of the cold side heat exchanger and upstream of an expansion device. The constant density heat exchanger is operable to hold a volume of the working fluid flowing therethrough at constant density while increasing, via a heat source, the temperature and pressure of the working fluid. The expansion device receives the working fluid at elevated temperature and pressure and extracts thermal energy from the working fluid to produce work.
