Once-through evaporator systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 8, 2022
Grant Date -
Jun 13, 2019
app pub date -
Nov 19, 2018
filing date -
Dec 8, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

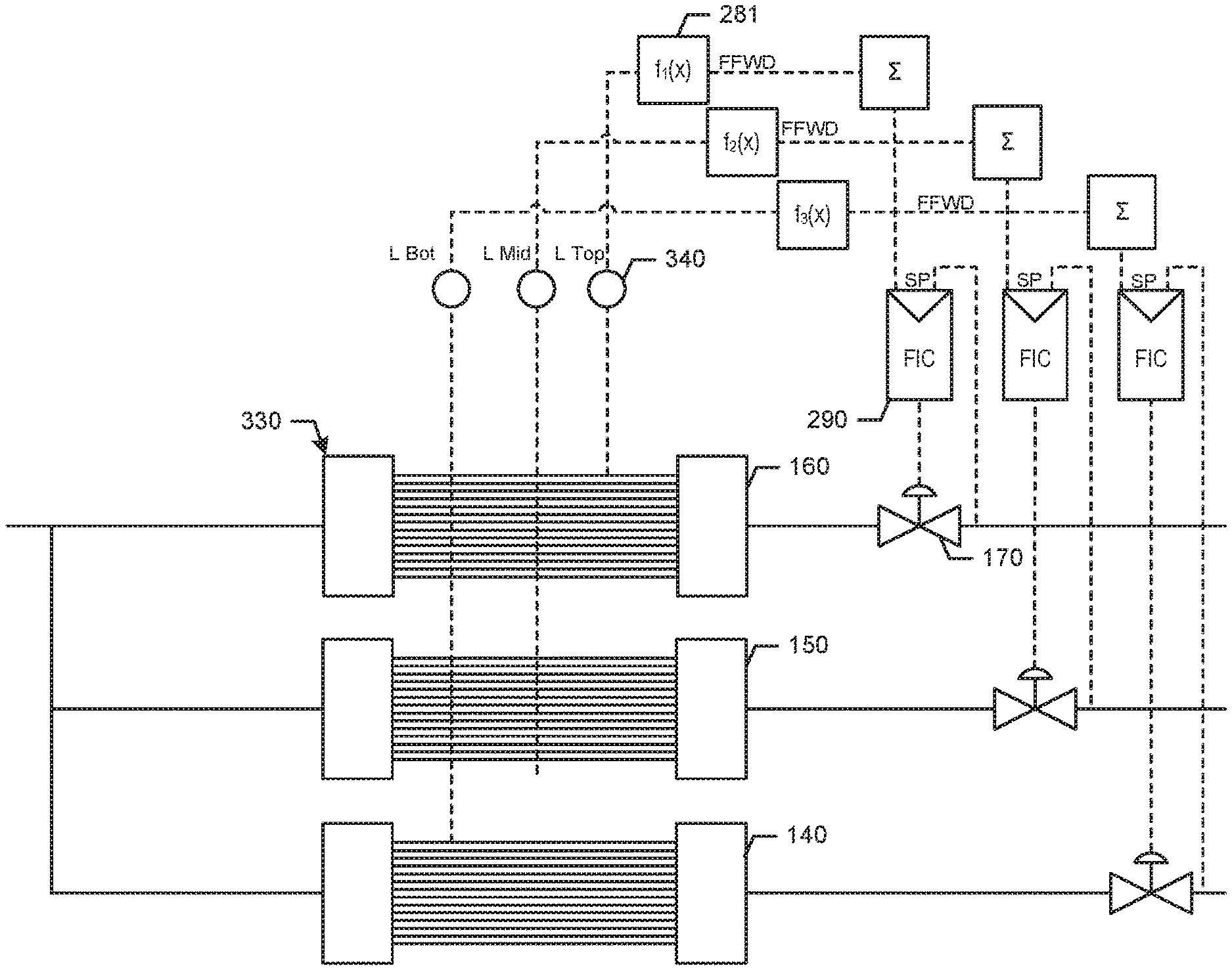

The present application provides a method of adjusting a feedwater mass flow rate to maintain a constant steam temperature in an evaporator section. The method may include the steps of determining a change in a number of operational parameters, predicting a change in steam temperature based on the number of operational parameters, combining the predicted changes in steam temperature, determining a feedforward signal based on dynamically offsetting the combined predicted changes in steam temperature, and changing the mass flow rate of feedwater based on the feedforward signal.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2018 Application Filing Year
- F25B Class
- 1289 Applications Filed
- 839 Patents Issued To-Date
- 65.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F25B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 8, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 8, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 8, 2033 |
