Vehicular exterior mirror system with blind spot indicator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 8, 2022
Grant Date -
Jul 9, 2020
app pub date -
Mar 16, 2020
filing date -
Jul 6, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

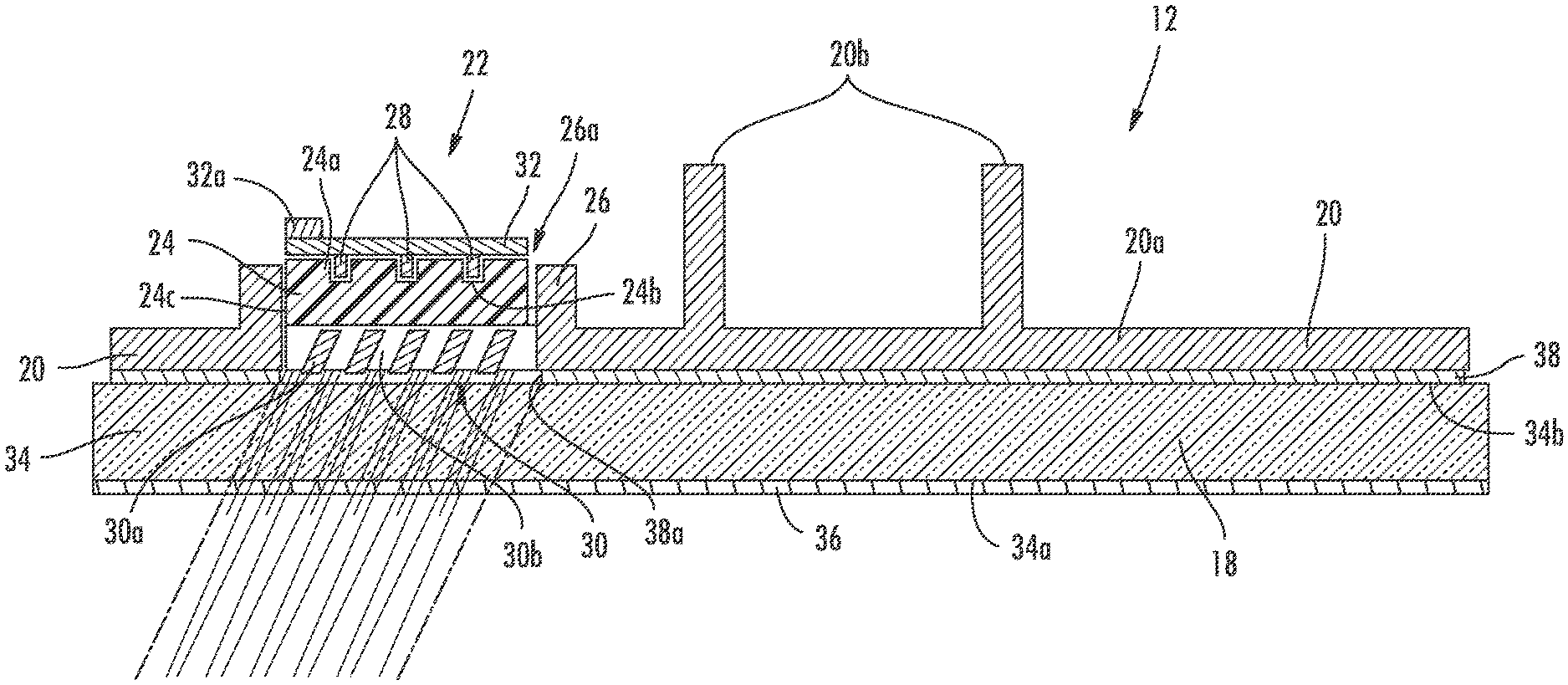

An exterior rearview mirror system for a vehicle includes an exterior mirror assembly having a skull-cap mirror shell that includes an inboard wall that faces generally toward an exterior driver-side of the equipped vehicle and that is viewable by a driver of the equipped vehicle. A blind spot indicator is disposed at an aperture established at the inboard wall of the skull-cap mirror shell and provides a viewing area of at least two square centimeters. An illumination source of the blind spot indicator is activated responsive to detection by a blind spot detection system of the equipped vehicle of presence of a rearward approaching or overtaking equipped vehicle. Illumination of the blind spot indicator by activation of the illumination source is readily viewable by the driver of the equipped vehicle and is generally not viewable by a driver of a vehicle forward of the equipped vehicle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B60R Class
- 4188 Applications Filed
- 2955 Patents Issued To-Date
- 70.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60R Class
- 59.32 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Aug 8, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 8, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 8, 2033 |
