Length selectable spirit level and measurement device
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Jan 25, 2022
Grant Date -
Aug 5, 2021
app pub date -
Feb 4, 2020
filing date -
Feb 4, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

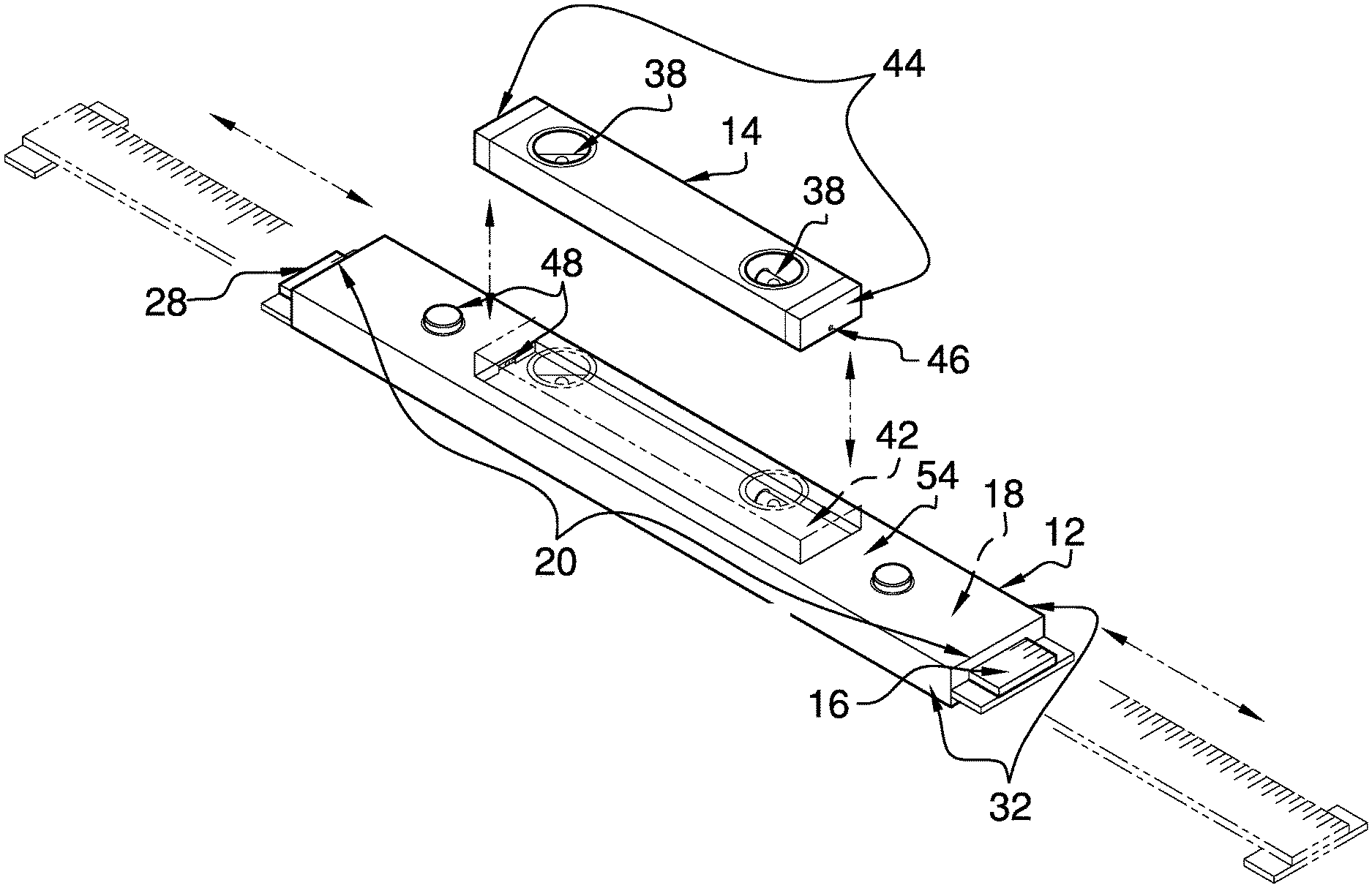

A length selectable spirit level and measurement device for simultaneous measurement and leveling includes a first bar and a second bar. The first bar has a channel positioned therethrough, which extends between opposed ends thereof. A pair of slats positioned in the channel is slidably engaged to the first bar and thus selectively extensible therefrom. Respective indicia of a plurality of indicia coupled to the slats are alignable with a pair of points to measures a distance between the points. The second bar has a set of orifices positioned therethrough, each of which has a spirit bubble tube positioned therein and coupled to the second bar. The spirit bubble tube indicates an orientation of a longitudinal axis of the second bar relative to horizontal. The first bar is selectively engageable to the second bar so that the slats are selectively extensible in parallel with the longitudinal axis.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01C Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 25, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 25, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 25, 2033 |
