Steering control apparatus
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Jan 4, 2022
Grant Date -
Aug 8, 2019
app pub date -
Jan 31, 2019
filing date -
Jan 31, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance

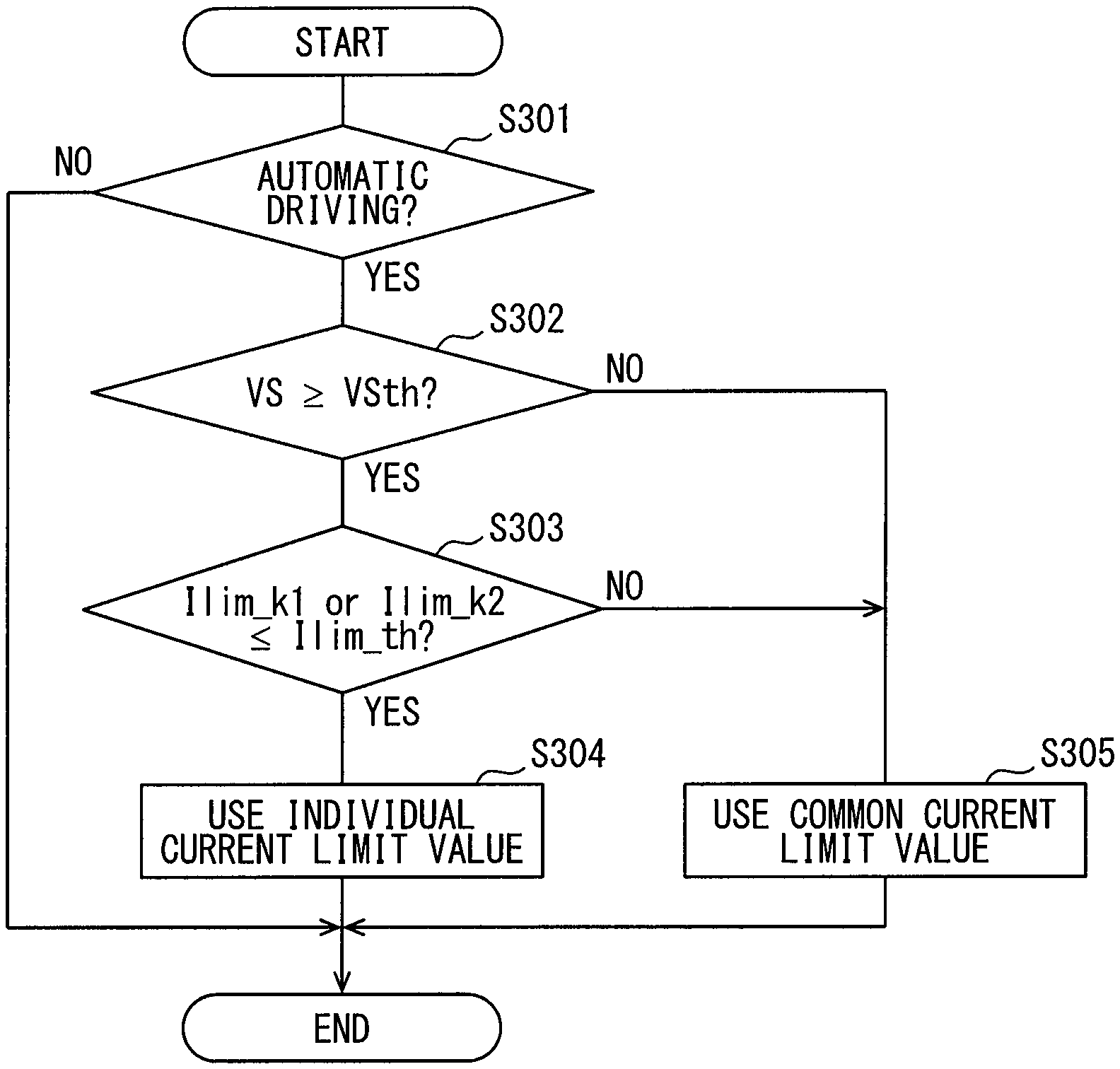

Abstract
Inverter circuits are provided for motor winding sets, respectively. Control units are provided for the motor winding sets to generate control signals related to driving of the inverter circuits and control currents flowing through the motor winding sets, respectively, thereby controlling driving of a motor. The control mode includes a manual steering mode for controlling the motor according to a steering operation on a steering wheel by a driver and an automatic steering mode for controlling the motor independently of the steering operation on the steering wheel by the driver. The control units are capable of switching the control modes and differentiate the current control according to the control mode. By making the current control different according to the control mode, it is possible to attain optimal characteristics which correspond to each control mode.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02K Class
- 69.09 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 4, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 4, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 4, 2033 |
