Linearization of non-linear amplifiers
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Dec 28, 2021
Grant Date -
Mar 18, 2021
app pub date -
Dec 14, 2017
filing date -
Dec 14, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

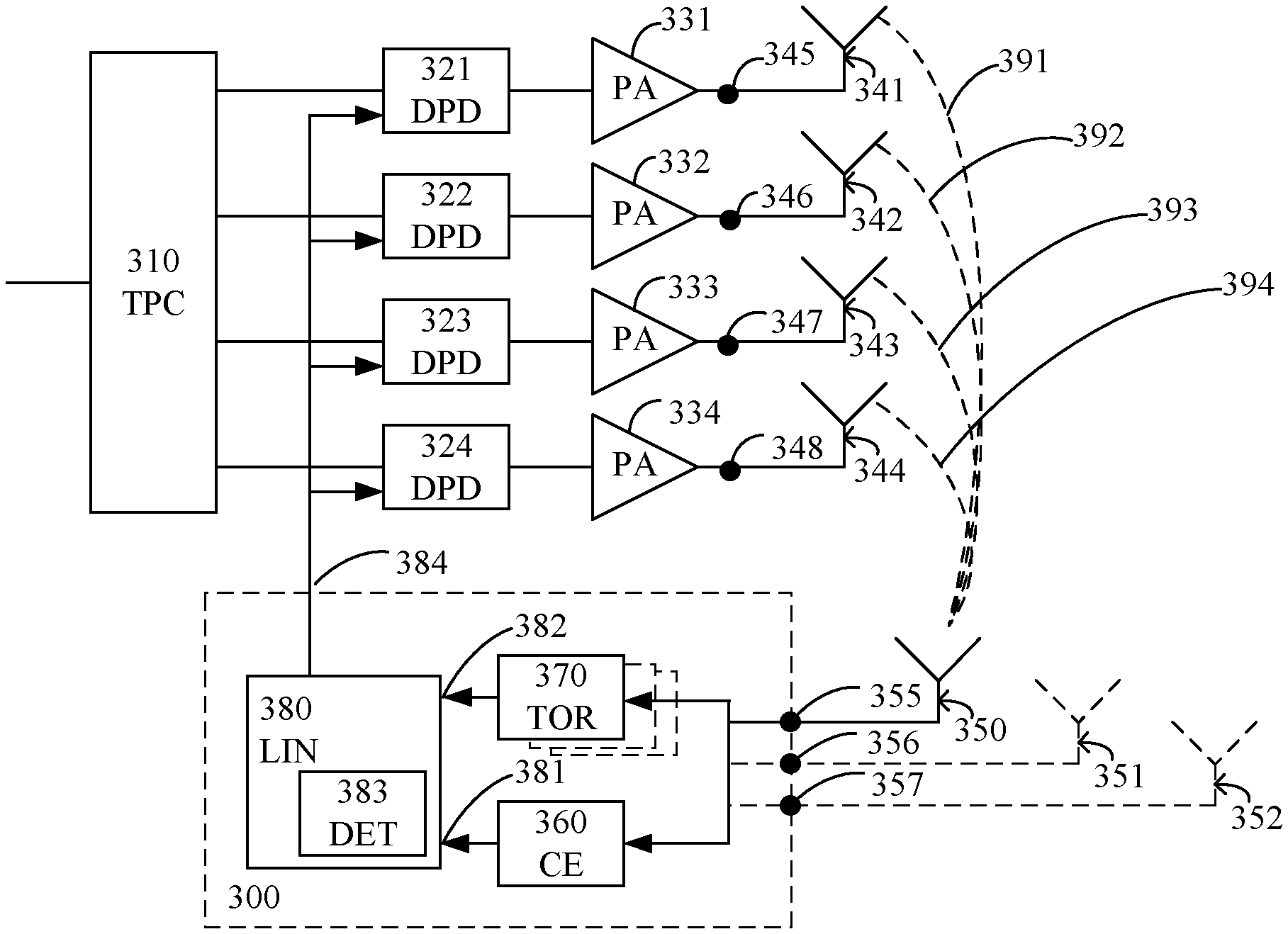

A linearization device (380) is disclosed, which is configured to determine pre-distortion parameters associated with a plurality of non-linear amplifiers (331, 332, 333, 334), each associated with a non-linear amplifier characteristic. The linearization device comprises determination circuitry (383), a first port (381) and a second port (382). The first port is configured to receive a plurality of channel coefficients indicative of channel characteristics of a plurality of communication paths (391, 392, 393, 394) between the plurality of non-linear amplifiers and a transmit observation receiver (370). The second port is configured to receive, from the transmit observation receiver, a sum of transmission signals generated by the plurality of non-linear amplifiers and transferred over the plurality of communication paths. The determination circuitry is configured to determine the pre-distortion parameters based on the received plurality of channel coefficients, the received sum of transmission signals, and a model of the non-linear amplifier characteristics of the non-linear amplifiers. Corresponding arrangement, wireless transmitter node, cloud based server node, method and computer program product are also disclosed.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2019117771 | Dec 14, 2017 |
| CN | B | CN111788772 | Dec 14, 2017 |
| JP | B2 | JP6986634 | Dec 14, 2017 |
| MX | A | MX2020006129 | Dec 14, 2017 |
| EP | A1 | EP3724992 | Dec 14, 2017 |
International Classification(s)
- 2017 Application Filing Year
- H03B Class
- 380 Applications Filed
- 314 Patents Issued To-Date
- 82.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 28, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 28, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 28, 2033 |
