Follow-up mechanism and brake caliper unit for gauge-changeable bogie
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Dec 28, 2021
Grant Date -
Oct 28, 2021
app pub date -
May 18, 2020
filing date -
May 18, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

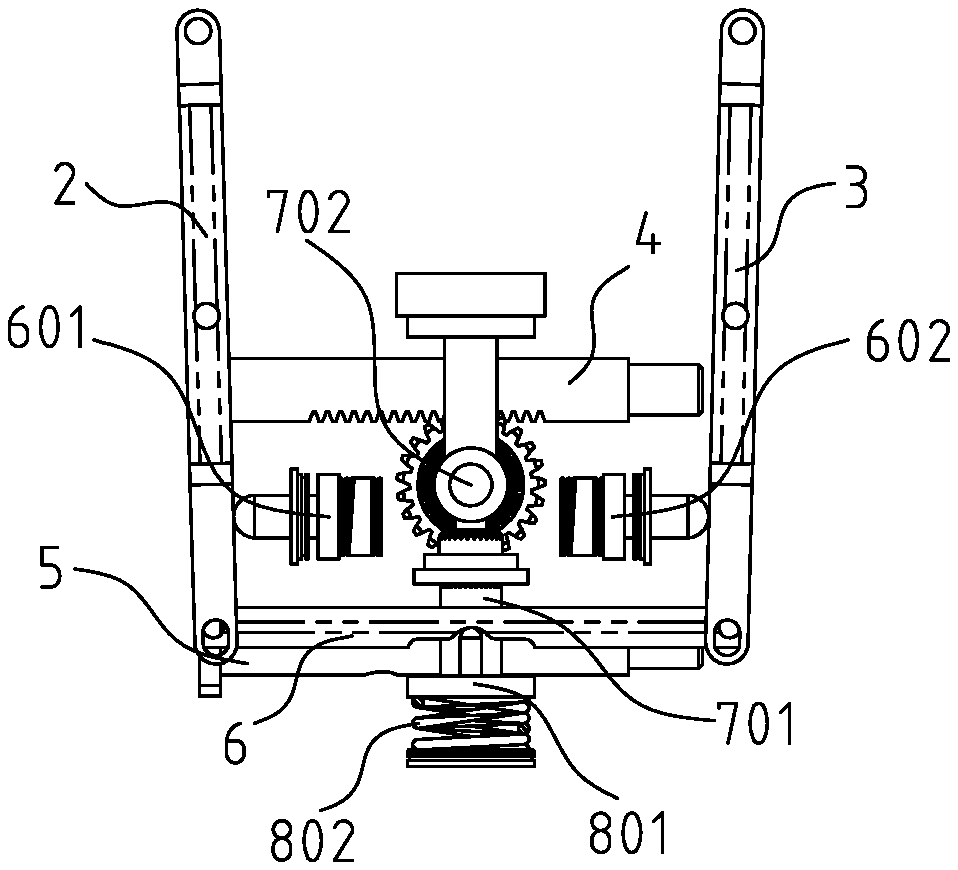

The present application relate to a follow-up mechanism and a brake caliper unit for gauge-changeable bogie, the follow-up mechanism includes a follow-up connector, unlocking members that are located on two sides of the follow-up connector and movably connected to the follow-up connector, a transverse displacement recognition device movably connected to the unlocking members, a toothed locking and positioning device mounted on the follow-up connector, and at least two mutually parallel fixation members; the follow-up connector is in sliding fit with the fixation members, and sliders are fixedly connected at ends of the unlocking members; the toothed locking and positioning device is movably connected to the transverse displacement recognition device and fixation members, respectively; the brake caliper unit comprises a mounting bracket, the follow-up mechanism, and a brake actuator mounted on the mounting bracket, the follow-up mechanism is installed in cooperation with the brake actuator, and the fixation members are fixedly mounted on the mounting bracket. The present application can automatically recognize the orbit change of a train, the follow-up mechanism moves with a wheel by means of its stored elastic force and the unlocking members, and can self-locked at the target gauge position, thus realizing the change in position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B61H Class
- 32 Applications Filed
- 17 Patents Issued To-Date
- 53.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61H Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 28, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 28, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 28, 2033 |
