Centrifugal field-flow fractionation device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 7, 2021
Grant Date -
N/A
app pub date -
Dec 18, 2017
filing date -
Dec 22, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

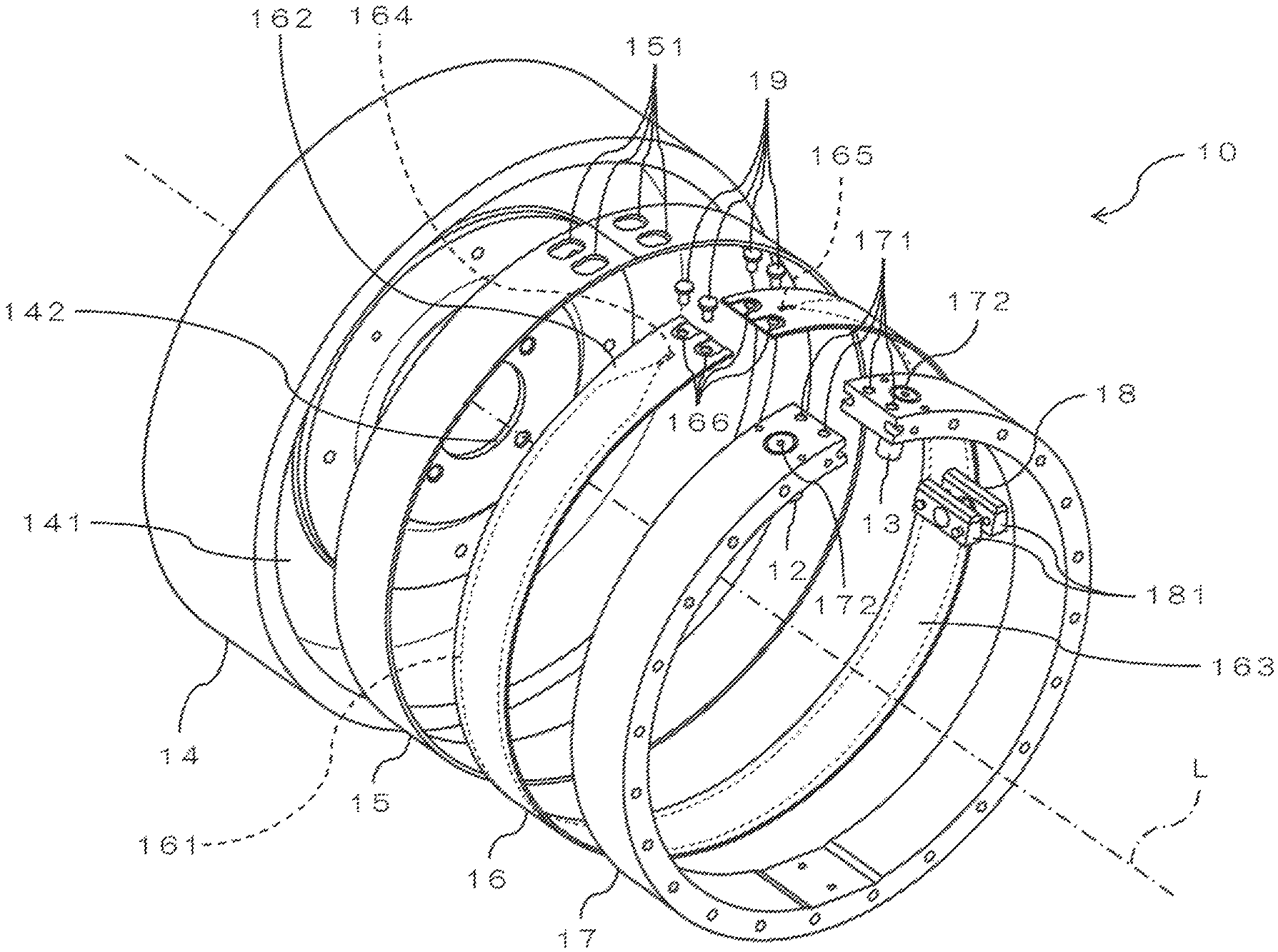

Provided is a centrifugal field-flow fractionation device that can stably press a fixing member toward an inner peripheral surface of a rotor by a wedge-shaped member, even when a relatively large centrifugal force acts on the wedge-shaped member. An arc-shaped (C-shaped) fixing member 17 is provided along an inner peripheral surface of a channel member 16 on a side of a rotation axis of the channel member 16. A wedge-shaped member 18 is attached between opposite ends of the fixing member 17 and applies a force in a direction of spreading the opposite ends apart, to thereby press the fixing member 17 toward the inner peripheral surface of the rotor 14. The wedge-shaped member 18 has a pair of contact surfaces 184 that respectively come into contact with the opposite ends of the fixing member 17. The pair of contact surfaces 184 include tapered surfaces that gradually taper down toward the rotor 14, so that the distance between the contact surfaces 184 gradually shortens as the contact surfaces 184 come close to the rotor 14.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B04B Class
- 144 Applications Filed
- 104 Patents Issued To-Date
- 72.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B04B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 7, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 7, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 7, 2033 |
