Multi-part, sprung rail wheel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 30, 2021
Grant Date -
Aug 22, 2019
app pub date -
Sep 12, 2017
filing date -
Sep 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

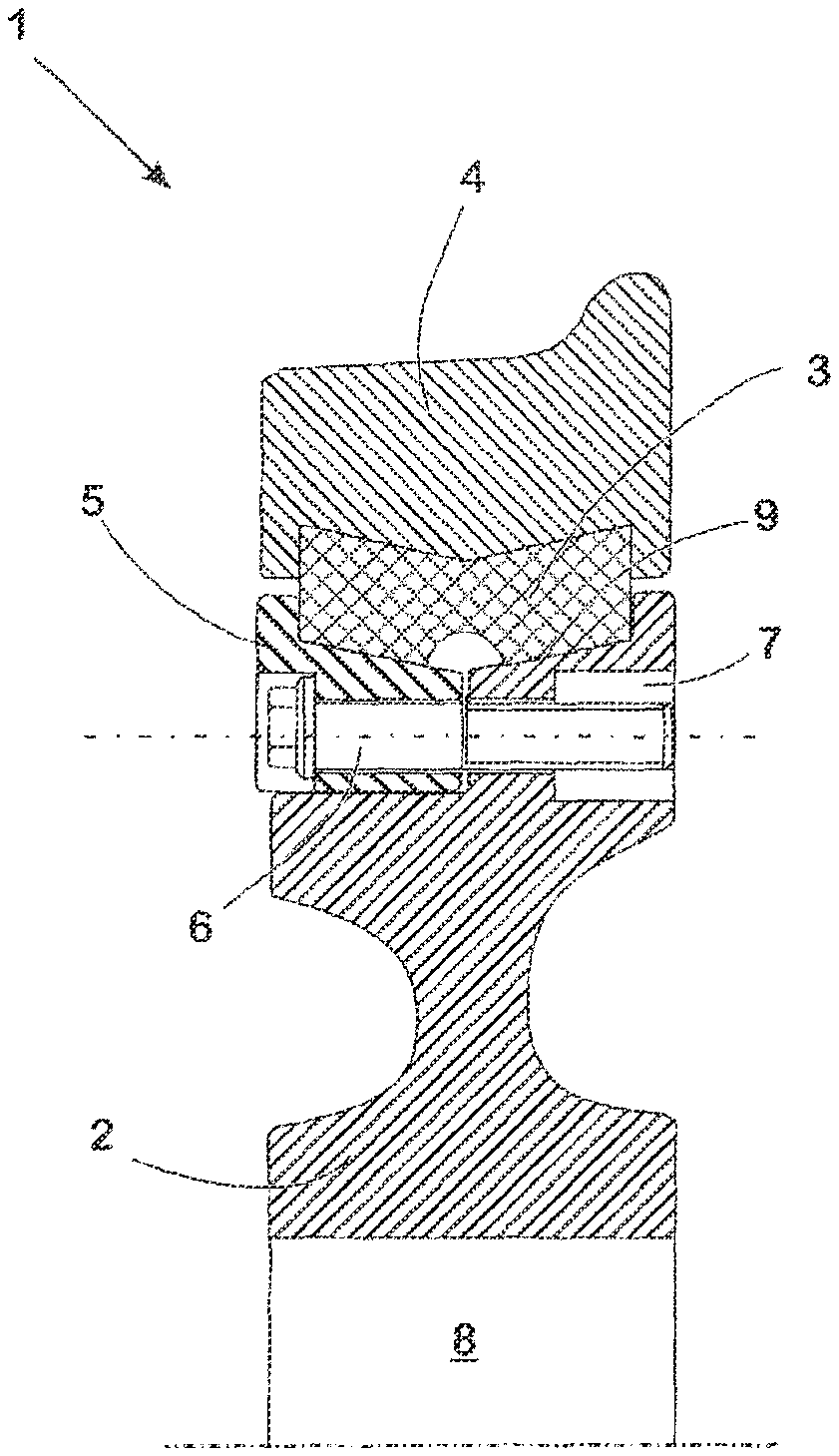

The present invention relates to a multi-part rail wheel with a wheel tyre, a wheel body, an elastic body arranged between the wheel tyre and the wheel body and via which the wheel tyre is supported on the wheel body, and at least one clamping element attached to the wheel body from one end face, via which the elastic body is braced against the wheel body and the wheel tyre by clamping means acting on the wheel body, the wheel body consisting of a light metal material in the region where the clamping means act. The rail wheel guarantees secure bracing of the components with simple assembly and disassembly. This is achieved by at least one counter-bearing element being provided on the end face of the wheel body opposite the clamping element. The counter-bearing element consists of a material which has a higher strength than the wheel body material.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B60B Class
- 575 Applications Filed
- 431 Patents Issued To-Date
- 74.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 30, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 30, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 30, 2033 |
