Negative pressure generating device and automatic negative pressure wound therapy device having pressure changing function using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 30, 2021
Grant Date -
Sep 12, 2019
app pub date -
Nov 8, 2017
filing date -
Nov 8, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

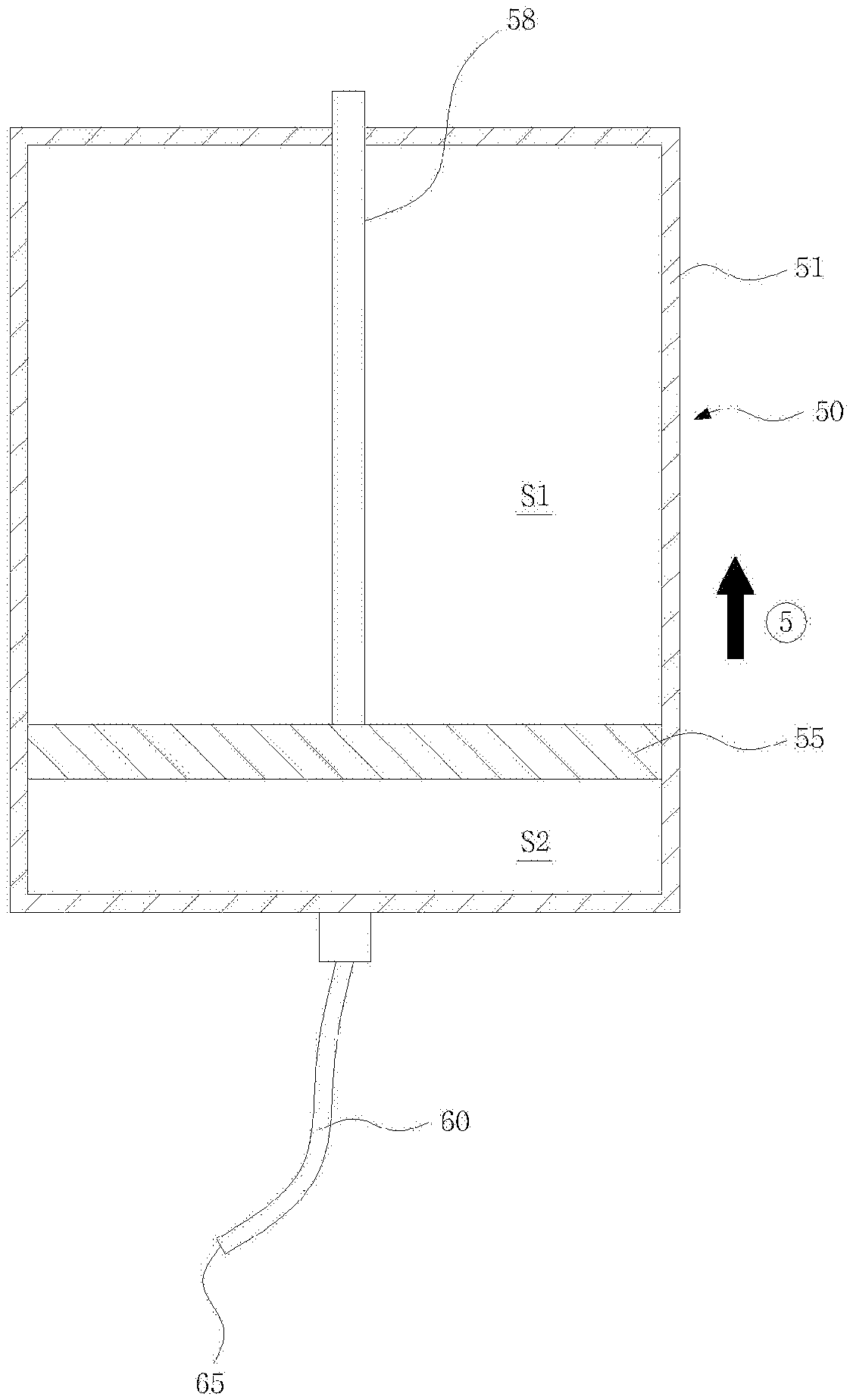

The present invention relates to a negative pressure generating device and an automatic negative pressure wound therapy device having a pressure changing function using the same. The present invention includes a static load elastic unit which provides an elastic force having a predetermined magnitude; a rotating unit which is connected to the static load elastic unit to rotate by the static load elastic unit; and a negative pressure cylinder which is connected to the rotating unit and interworks with the rotation of the rotating unit to generate a negative pressure therein. According to the present invention, a constant negative pressure may be consistently generated by a mechanical structure so that a manufacturing cost is significantly reduced as compared with an electrical structure and the size may be reduced.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F04B Class
- 1234 Applications Filed
- 897 Patents Issued To-Date
- 72.70 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F04B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 30, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 30, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 30, 2033 |
