Wheel brake space detecting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 23, 2021
Grant Date -
May 7, 2020
app pub date -
May 9, 2019
filing date -
Nov 2, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

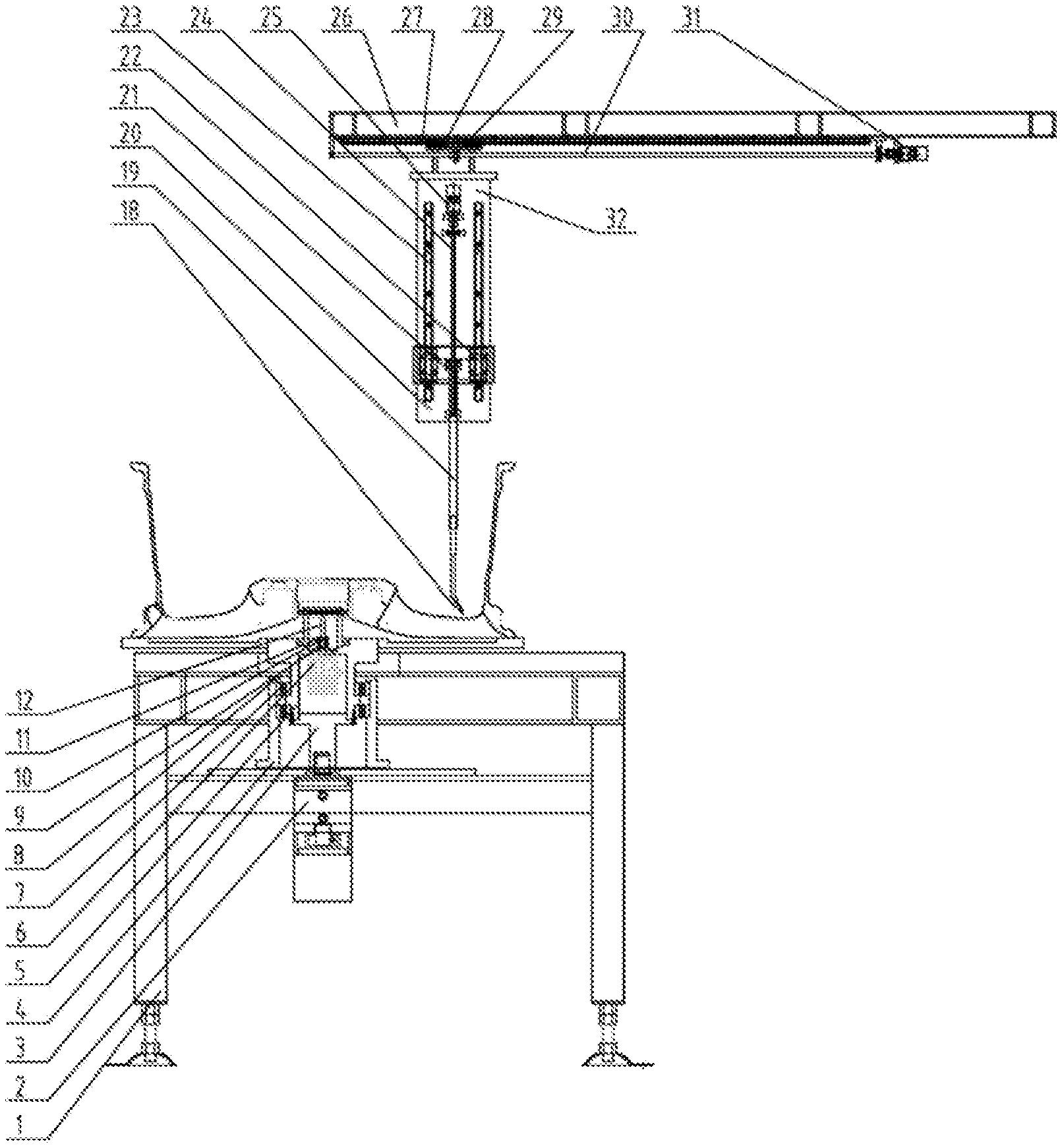

The present application discloses a wheel brake space detecting device comprising a frame, a first servo motor, a connecting shaft, a pedestal, a rotating shaft, a rotary cylinder, a first bearing, a first bearing end cap, a base, a second bearing, a second bearing end cap, a shaft, a shaft sleeve, contacts, a spring, linear bearings, a synchronous cam, a probe, a probe holder, a first sliding frame, a first lead screw nut, a first guide rail sliding seat, a first linear guide rail, a first ball screw, a second servo motor, a suspension, a second linear guide rail, a second guide rail sliding seat, a second lead screw nut, a second ball screw, a third servo motor, and a second sliding frame.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- G01B Class
- 2123 Applications Filed
- 1531 Patents Issued To-Date
- 72.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 23, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 23, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 23, 2033 |
