Structure and method for connecting a composite insulation exterior wall panel and a steel structural beam-column
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 23, 2021
Grant Date -
May 21, 2020
app pub date -
Nov 19, 2019
filing date -
Nov 20, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

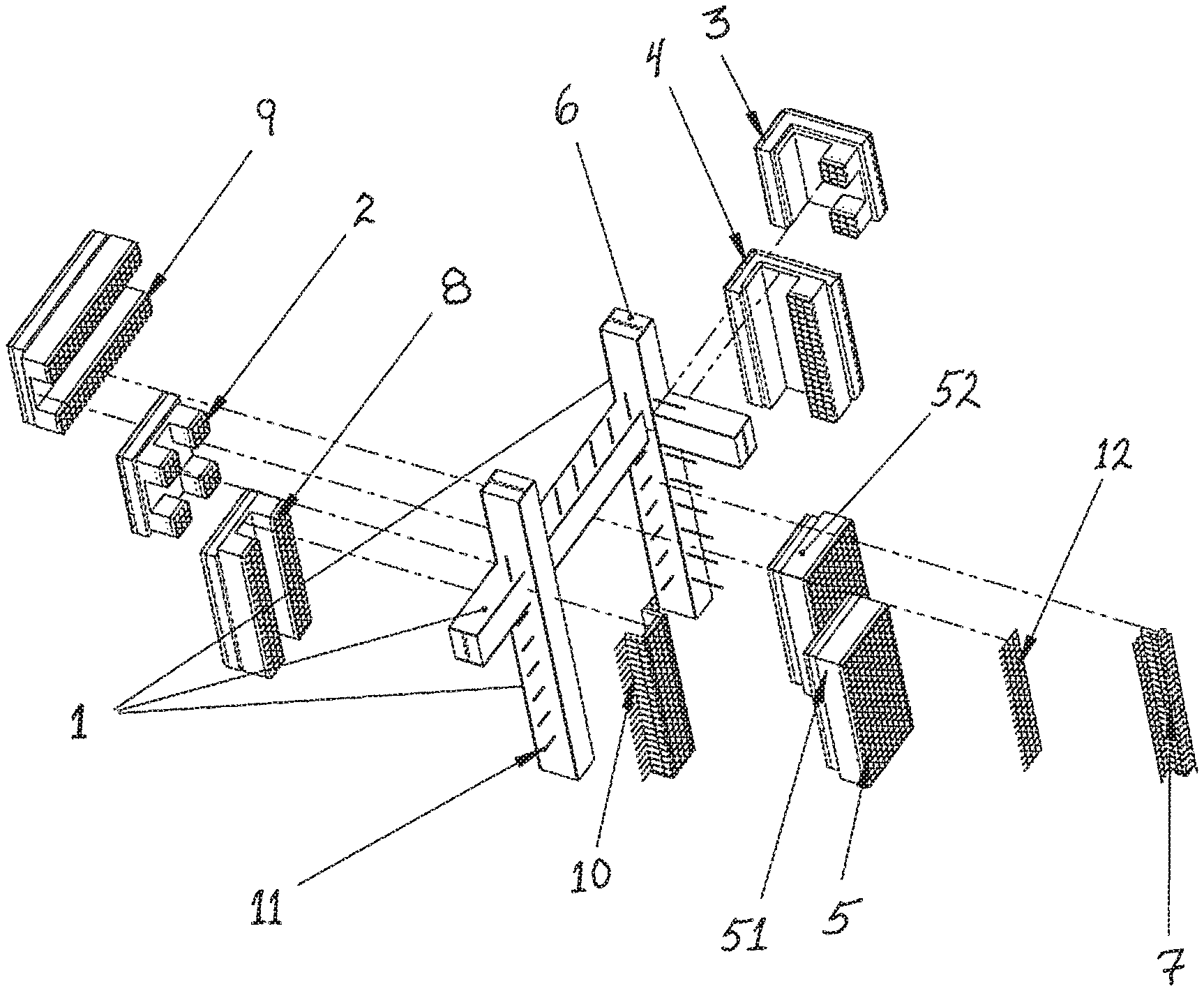

The present invention discloses a structure for connecting a composite insulation exterior wall panel and a steel structural beam-column, including a steel structural beam and a steel structural column making up a a steel structural body. A filling insulation layer is provided at a gap of the steel structural body. A composite insulation panel connecting assembly is wrapped at a junction between the steel structural beam and the steel structural column. The composite insulation panel connecting assembly is connected to a horizontal composite insulation panel assembly, via a staggered seam, in a horizontal direction, and the composite insulation panel connecting assembly is connected to a vertical composite insulation panel assembly, via a staggered seam, in a vertical direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- E04B Class
- 1238 Applications Filed
- 821 Patents Issued To-Date
- 66.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E04B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 23, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 23, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 23, 2033 |
