Isolation method for water insoluble components of a biomass
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 16, 2021
Grant Date -
Dec 3, 2020
app pub date -
Apr 30, 2020
filing date -
Aug 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

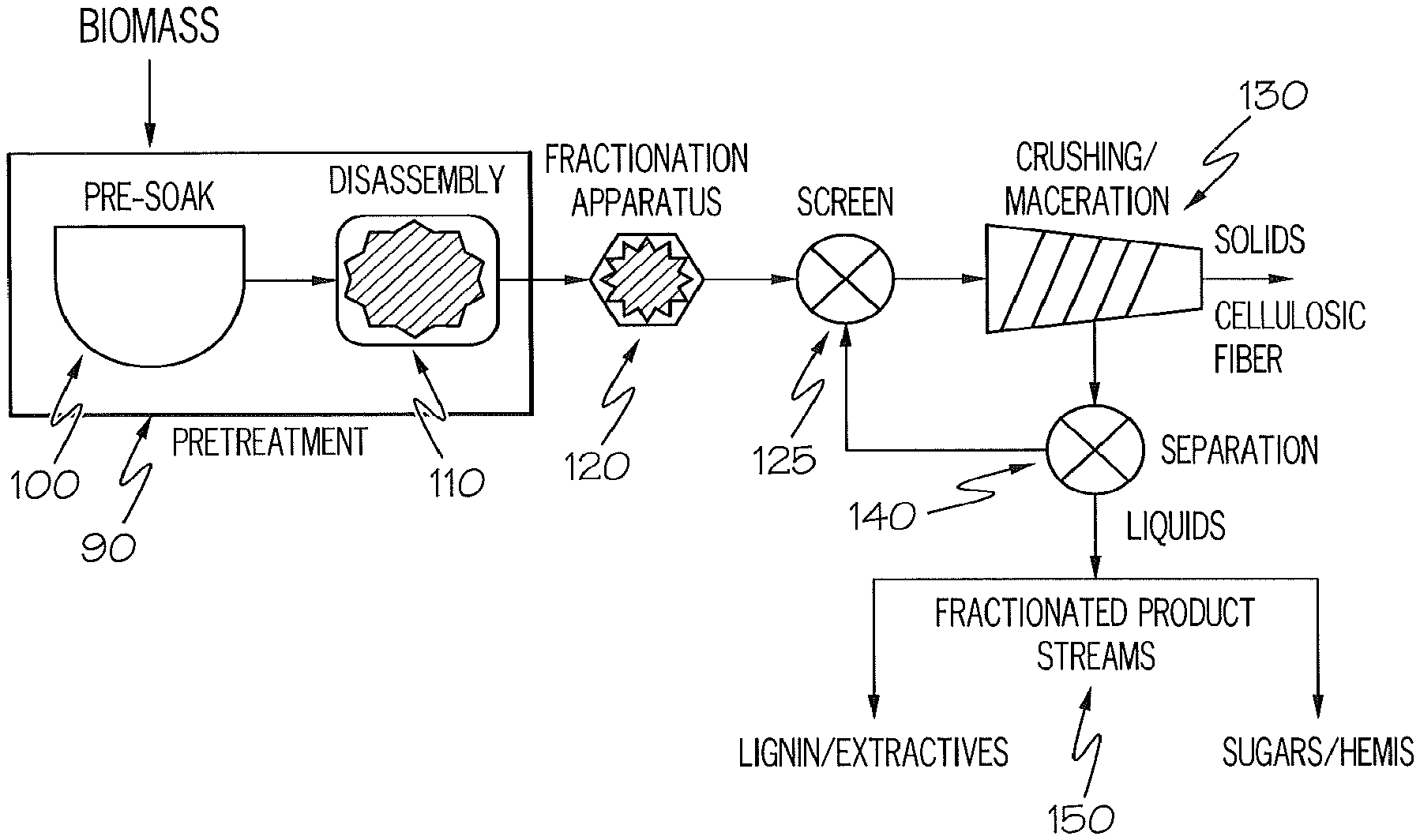

The process includes pretreating the biomass with a first basic solution such as sodium hydroxide and mechanically altering the fibers to provide a fluidized biomass. The fluidized biomass is then subjected to high frequency pulses and shear forces without denaturing the individual components of the biomass. The biomass is then subjected to compressive force to separate a first liquid fraction from a first fractionated biomass. The first fractionated biomass may again then be subjected to the same high frequency pulses and shear forces as previously, particularly if there are hemicellulose and/or sugars still present in the first fractionated biomass. Compressive forces are used to separate a second liquid fraction from a second fractionated biomass. The second fractionated biomass is subjected to oxidation such as with hydrogen peroxide at a pH of 8 to 12. The second fractioned biomass is then subjected to compressive forces to separate one or more water insoluble components of the biomass in water soluble form.
First Claim
Other Claims data not available
Family
International Classification(s)
- C08H:DERIVATIVES OF NATURAL MACROMOLECULAR COMPOUNDS
- C08G:MACROMOLECULAR COMPOUNDS OBTAINED OTHERWISE THAN B....
- C08B:POLYSACCHARIDES; DERIVATIVES THEREOF
- H01R:ELECTRICALLY-CONDUCTIVE CONNECTIONS; STRUCTURAL AS....
- D21H:PULP COMPOSITIONS; PREPARATION THEREOF NOT COVERED....
- D21C:PRODUCTION OF CELLULOSE BY REMOVING NON-CELLULOSE ....
- H05K:PRINTED CIRCUITS; CASINGS OR CONSTRUCTIONAL DETAIL....
- 2020 Application Filing Year
- C08H Class
- 55 Applications Filed
- 26 Patents Issued To-Date
- 47.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C08H Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 16, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 16, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 16, 2033 |
