Vehicle forward sensor module housing and cover
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 16, 2021
Grant Date -
Apr 30, 2020
app pub date -
Oct 23, 2019
filing date -
Oct 24, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

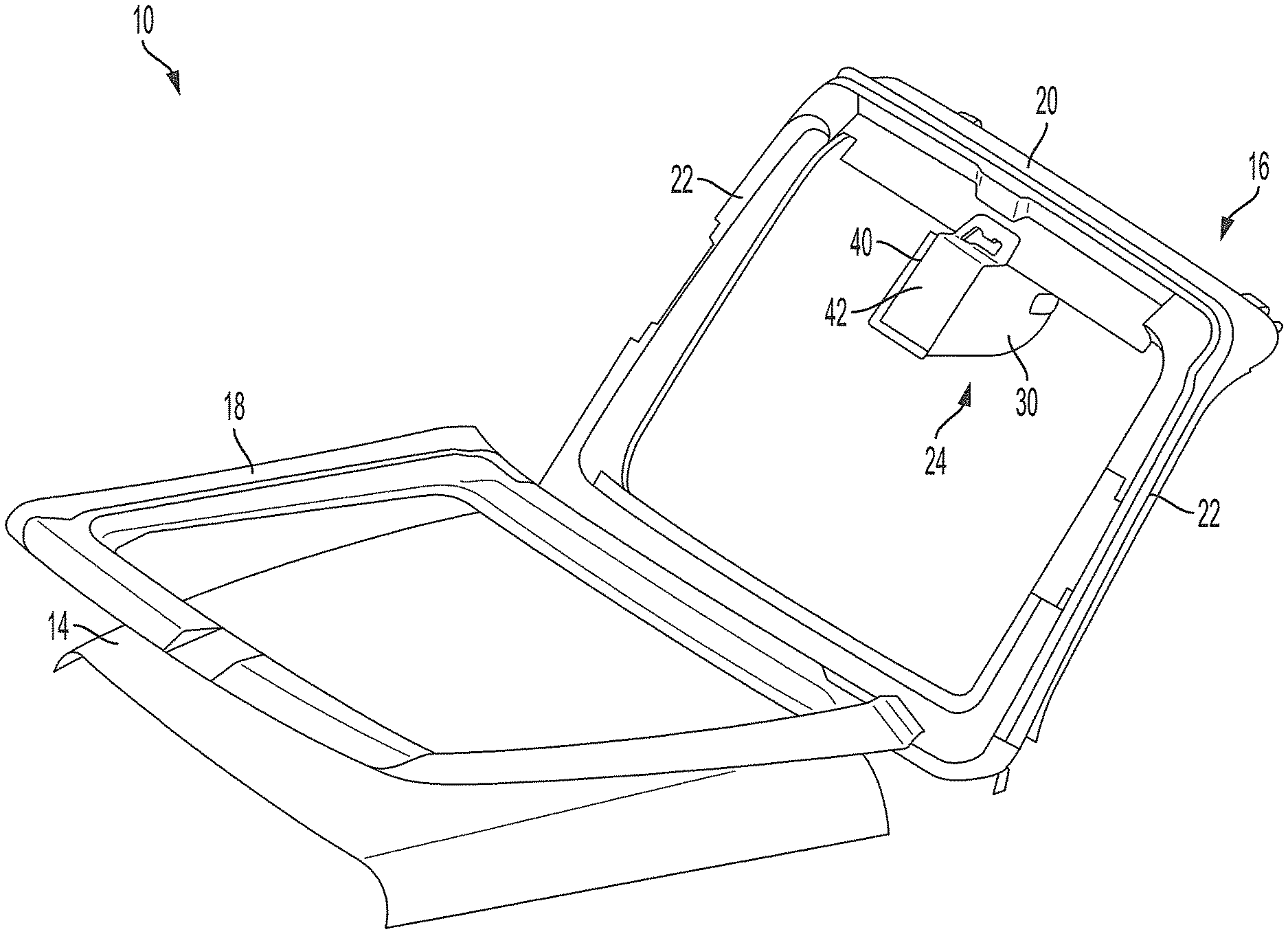

A vehicle with sensor enabled features includes a vehicle frame, a windshield movable between a lowered position and a raised position where the windshield is coupled to the vehicle frame, and a forward sensor assembly coupled to the vehicle frame and including a sensor module disposed within a protective housing assembly. The protective housing assembly defines an open end and includes a front cover configured to removably couple to the protective housing assembly to selectively cover the open end. When the windshield is in the raised position, the windshield covers the open end to facilitate protecting the sensor module. When the windshield is in the lowered position, the front cover is configured to cover the open end to facilitate protecting the sensor module.
First Claim
Other Claims data not available
Family
International Classification(s)
- B60J:WINDOWS, WINDSCREENS, NON-FIXED ROOFS, DOORS, OR S....
- H04N:PICTORIAL COMMUNICATION, e.g. TELEVISION
- H04R:LOUDSPEAKERS, MICROPHONES, GRAMOPHONE PICK-UPS OR ....
- B60R:VEHICLES, VEHICLE FITTINGS, OR VEHICLE PARTS, NOT ....
- E05B:LOCKS; ACCESSORIES THEREFOR; HANDCUFFS
- E05C:BOLTS OR FASTENING DEVICES FOR WINGS, SPECIALLY FO....
- G01S:RADIO DIRECTION-FINDING; RADIO NAVIGATION; DETERMI....
- B60Q:ARRANGEMENT OF SIGNALLING OR LIGHTING DEVICES, THE....
- B60N:VEHICLE PASSENGER ACCOMMODATION NOT OTHERWISE PROV....
- 2019 Application Filing Year
- B60J Class
- 975 Applications Filed
- 714 Patents Issued To-Date
- 73.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60J Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 16, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 16, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 16, 2033 |
