Vehicle and method for controlling the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 2, 2021
Grant Date -
Apr 30, 2020
app pub date -
Apr 10, 2019
filing date -
Oct 24, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

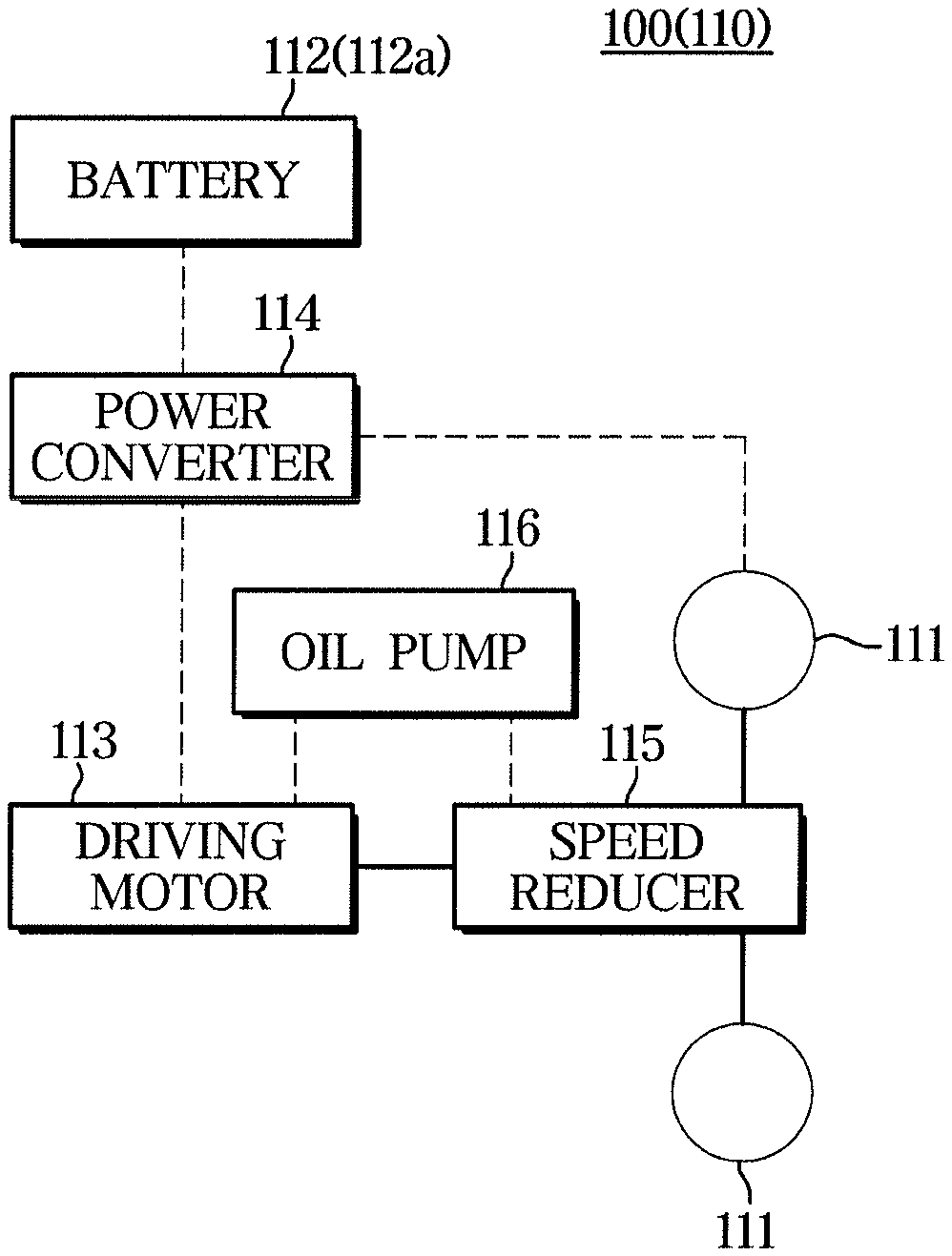

A vehicle may include a driving motor supplying driving force to vehicle wheel; a power converter using a coil provided in the driving motor to transform power input from the external power source; a battery charged according to counter electromotive force of the driving motor in a regenerative braking mode, charged according to the power transformed by the power converter in a charging mode, and supplying driving power to the driving motor in a driving mode; an oil pump supplying oil to the driving motor; a detector detecting temperature of the oil; and a controller controlling the oil pump to be operated in a warm-up mode when the oil temperature detected by the detector is less than a first threshold temperature and the battery is in the charging mode, and applying reference power to the oil pump to move the oil to the driving motor in the warm-up mode.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- F01M Class
- 328 Applications Filed
- 226 Patents Issued To-Date
- 68.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01M Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 2, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 2, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 2, 2033 |
