Prechamber device for internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 26, 2021
Grant Date -
N/A
app pub date -
Dec 2, 2020
filing date -
Dec 2, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

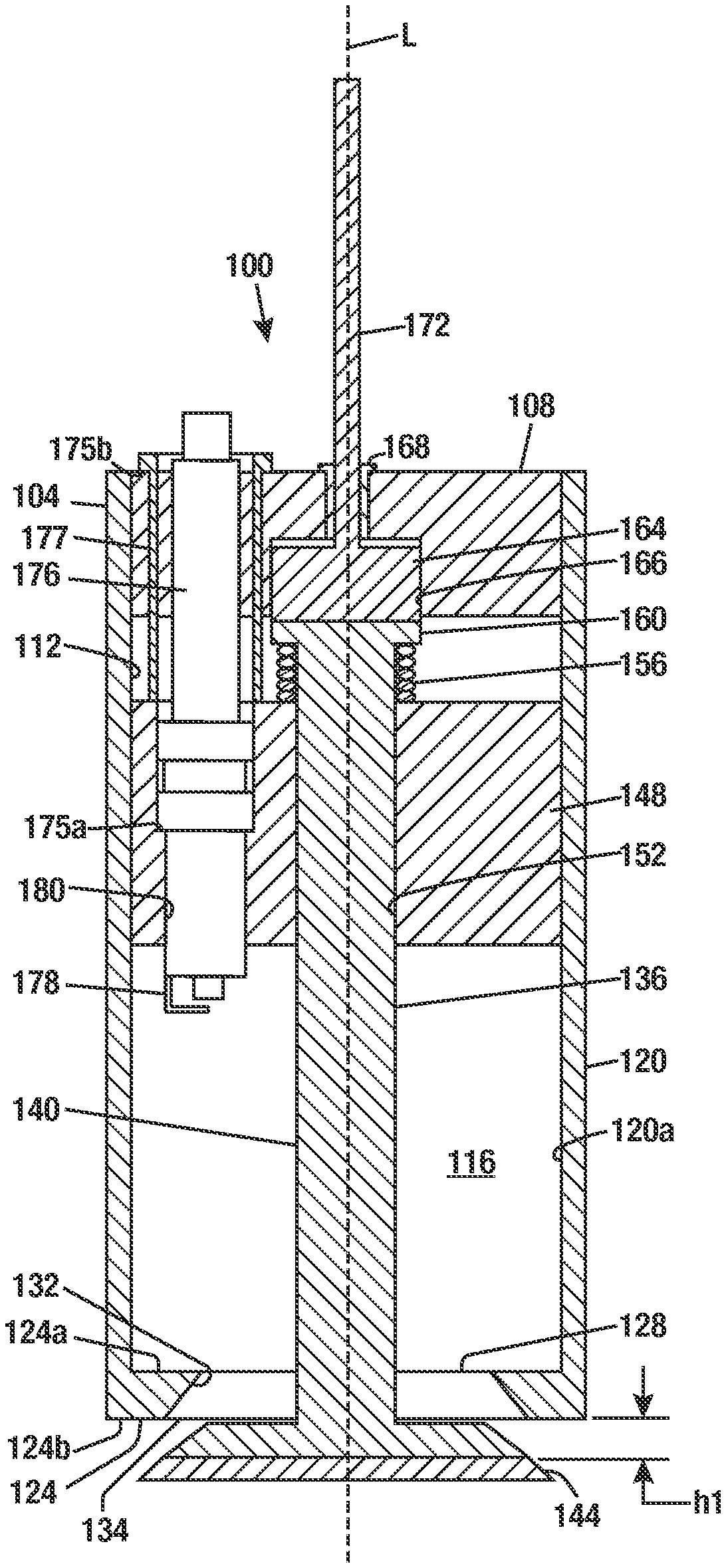

A prechamber device includes an enclosure body and a cap forming an enclosed volume. The enclosure body has an orifice at one end. A precombustion chamber is defined within the enclosed volume and is in fluid communication with the orifice. A valve plug is movable along an axial axis of the enclosure body to adjust a valve opening at the orifice to a range of positions from a fully open position to a closed position. An actuator is coupled to the cap and the valve plug and is controllable to displace the valve plug along the axial axis of the enclosure body. The prechamber device is operable to generate turbulent jets that are directed into a main combustion chamber of an engine cylinder through the valve opening. During an engine cycle, the valve opening is controlled between the range of positions based on detected engine speed and engine load.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2020 Application Filing Year
- F02P Class
- 139 Applications Filed
- 108 Patents Issued To-Date
- 77.70 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F02P Class
- 64.29 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 26, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 26, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 26, 2033 |
