Traction system for railcar movers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 26, 2021
Grant Date -
N/A
app pub date -
Apr 26, 2019
filing date -
Jun 6, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

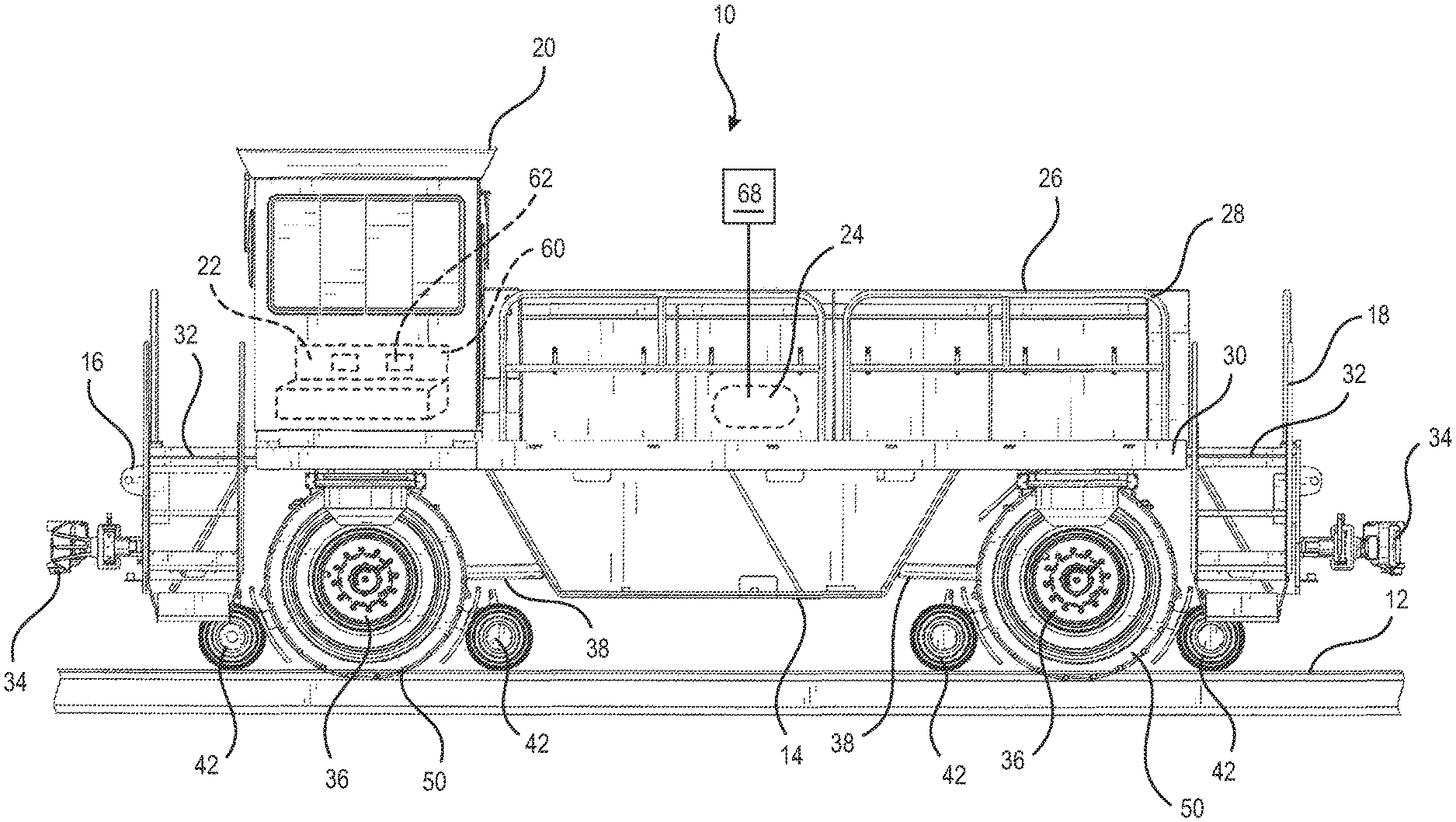

A traction system is provided for a rail draft vehicle including an engine with a driveshaft, at least a pair of rubber-tired traction wheels, and at least one rail guide wheel pressurized relative to the vehicle by at least one fluid-powered cylinder. Included in the system are a programmable processor connected to a driveshaft speed sensor, a rail guide wheel speed sensor, an engine throttle controller, a fluid-powered cylinder controller and a vehicle control panel. The processor is constructed and arranged for automatically adjusting the engine throttle controller in coordination with the fluid-powered cylinder controller for achieving movement of the rail draft vehicle from a dead stop position by increasing applied vehicle weight upon the traction wheels by the at least one fluid-powered cylinder and adjusting engine RPM's until the vehicle begins movement as detected by the rail guide wheel speed sensor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- B61J Class
- 8 Applications Filed
- 4 Patents Issued To-Date
- 50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61J Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 26, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 26, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 26, 2033 |
