Riflescope cap assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 19, 2021
Grant Date -
N/A
app pub date -
Jun 3, 2020
filing date -
Jun 3, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

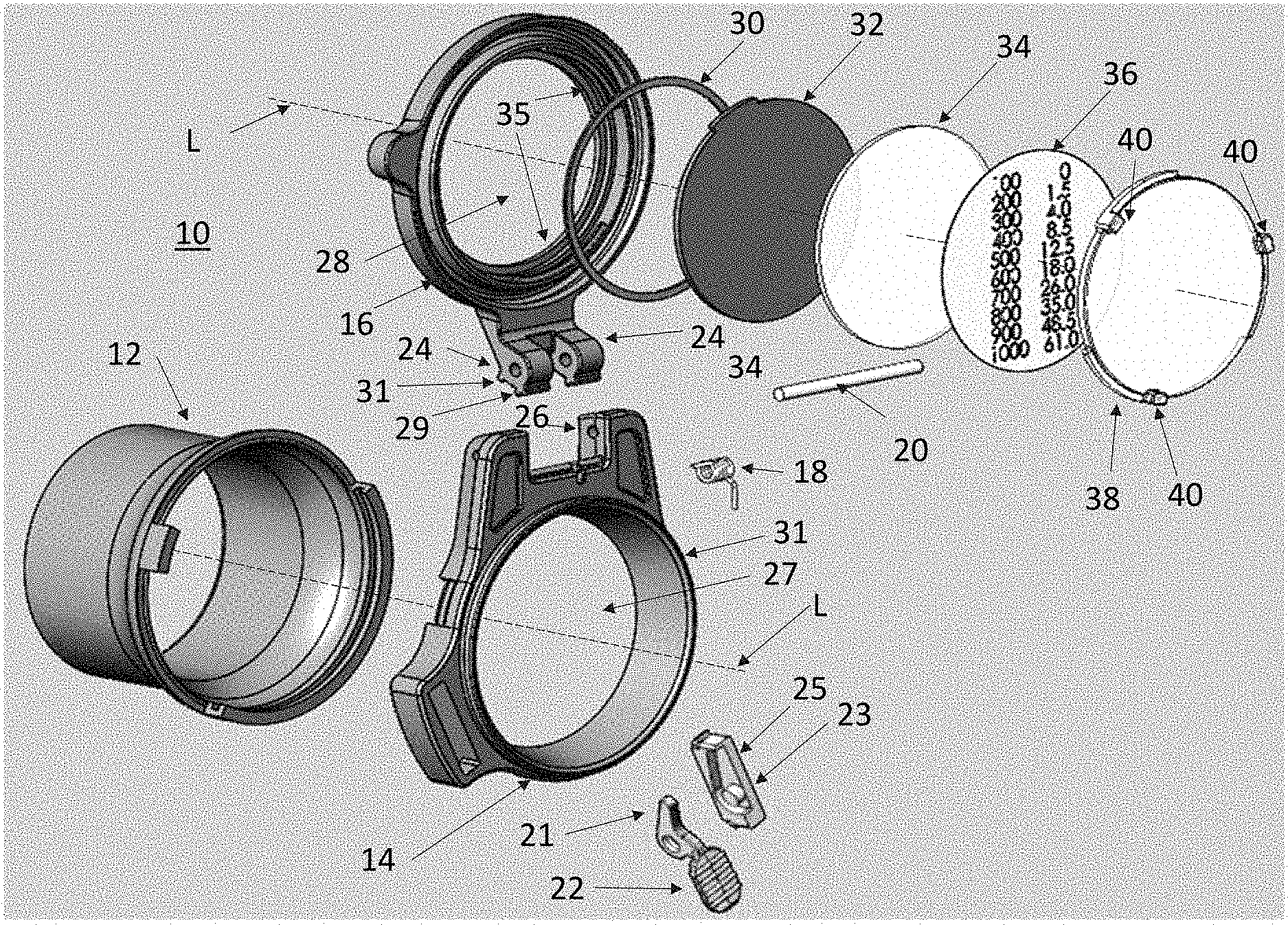

A scope cap assembly for mounting on a scope of a firearm is provided, including a resilient sleeve for mounting to the scope of the firearm; a support body fixed to the resilient sleeve and including a mounting portion; a cap defining an aperture and pivotably mounted to the support body and movable between a closed position and an open position greater than 180 degrees from the closed position; a biasing member for biasing the cap towards the open position; a retaining mechanism for releasably securing the cap at an intermediate position between the closed position and the open position; and a first removable disc configured for placement within the second aperture and defining a annular protrusions for cooperating with annular flanges of the cap to secure the first removable disc in the cap.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- F41G Class
- 308 Applications Filed
- 210 Patents Issued To-Date
- 68.19 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F41G Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 19, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 19, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 19, 2033 |
