Portable burning stove providing warm air
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 12, 2021
Grant Date -
Dec 3, 2020
app pub date -
Sep 24, 2019
filing date -
May 31, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

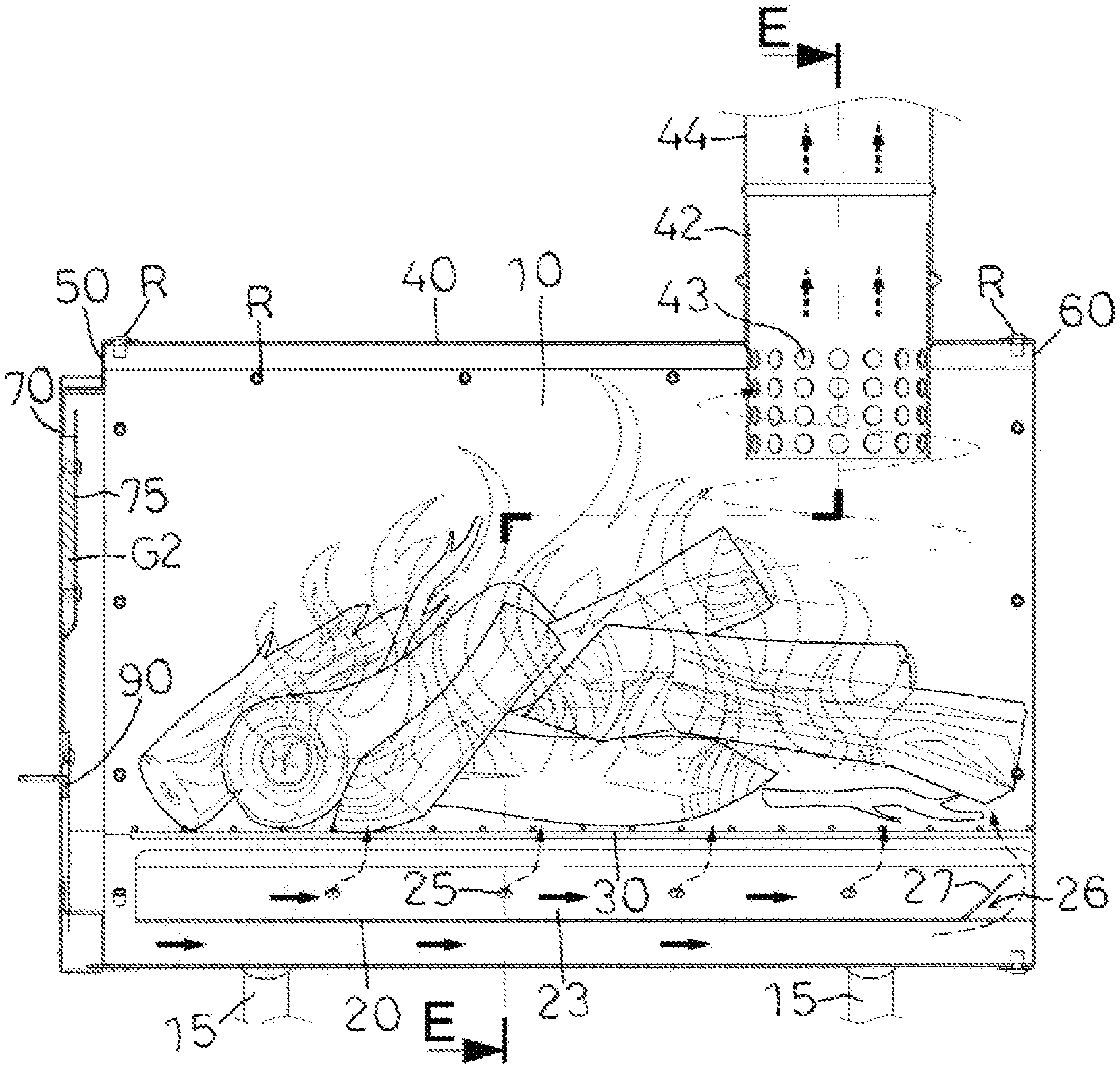

A burning stove includes a stove body, a front seat, a door, a rear seat, a top cover, and a baffle. The baffle divides the stove body into an air inlet chamber and a combustion chamber. The door is provided with first air inlet holes and second air inlet holes. The baffle is provided with first air holes. The baffle is provided with an air guide port and an air guide face. First partial air flows backward in the air inlet chamber, flows through the air guide port and the air guide face, and flows upward into the combustion chamber, and second partial air in the air inlet chamber flows through the first air holes into the combustion chamber. The first partial air and the second partial air form a vortex air flow in the combustion chamber.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- F24B Class
- 94 Applications Filed
- 61 Patents Issued To-Date
- 64.90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F24B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 12, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 12, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 12, 2033 |
