Trim assembly for a door lock and method of assembling a handle thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 28, 2021
Grant Date -
N/A
app pub date -
Jun 26, 2019
filing date -
Jul 12, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

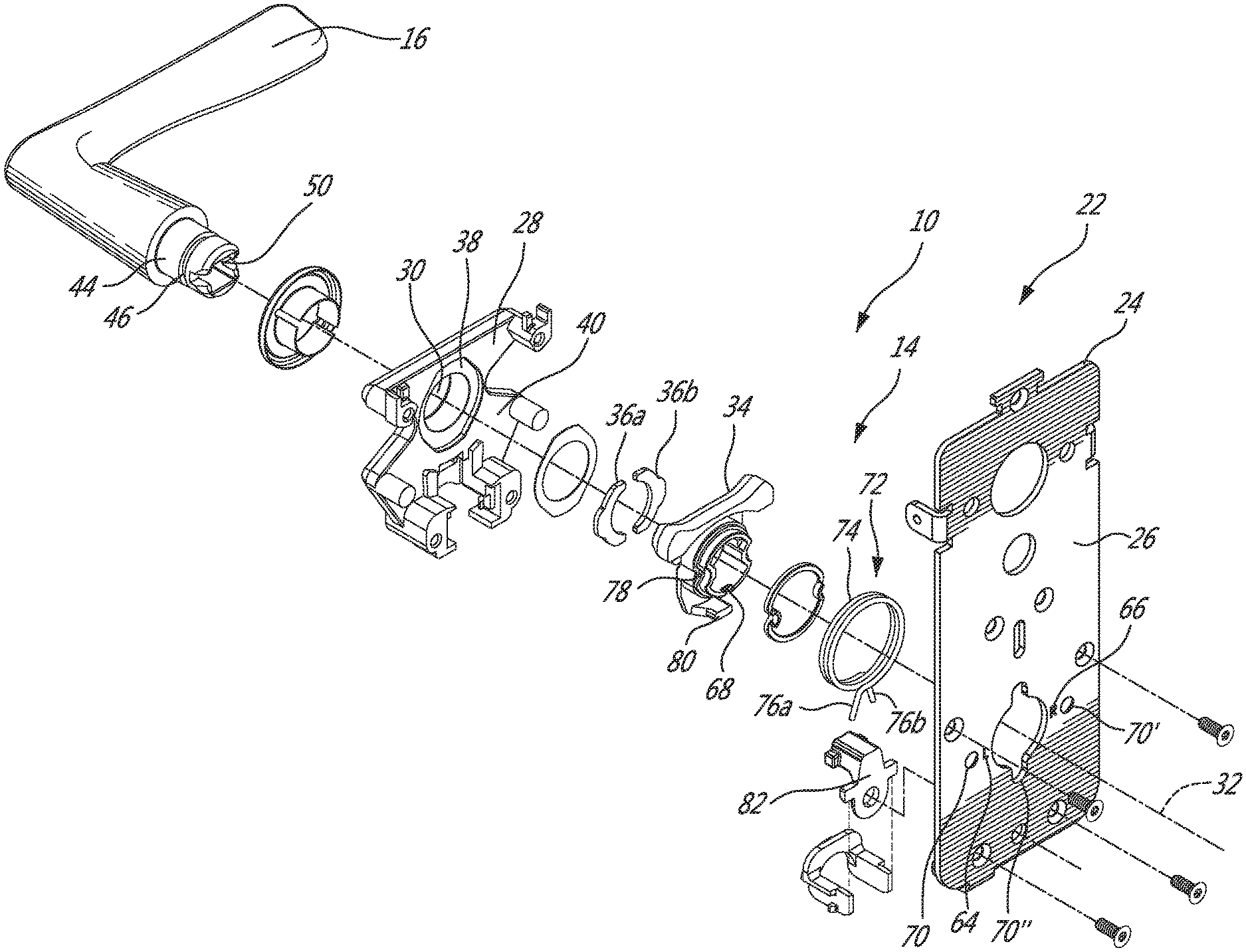

The method can include: introducing a neck portion of the handle in a receiving aperture of the frame and thereby positioning a second engagement member of the neck into a tangential engagement with a first engagement member of a rotary holder, and positioning a transversal groove defined in the neck portion in axial alignment with a clip axially trapped in a cam cavity of the frame, the clip further being tangentially trapped by the rotary holder but free to slide in a radial orientation relative to the rotary holder; and rotating the rotary holder around the rotation axis, via rotation of the handle, along a camming angle, the rotary holder thereby pivoting a clip around the rotation axis, inside a cam cavity, the cam cavity pushing the clip radially inwards during said pivoting, until it is engaged in the transversal groove, preventing axial retraction of the neck portion thereafter.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- E05B Class
- 1193 Applications Filed
- 809 Patents Issued To-Date
- 67.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 28, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 28, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 28, 2033 |
