Versatile tubing straightener
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 21, 2021
Grant Date -
Jul 9, 2020
app pub date -
Jan 6, 2020
filing date -
Jan 9, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

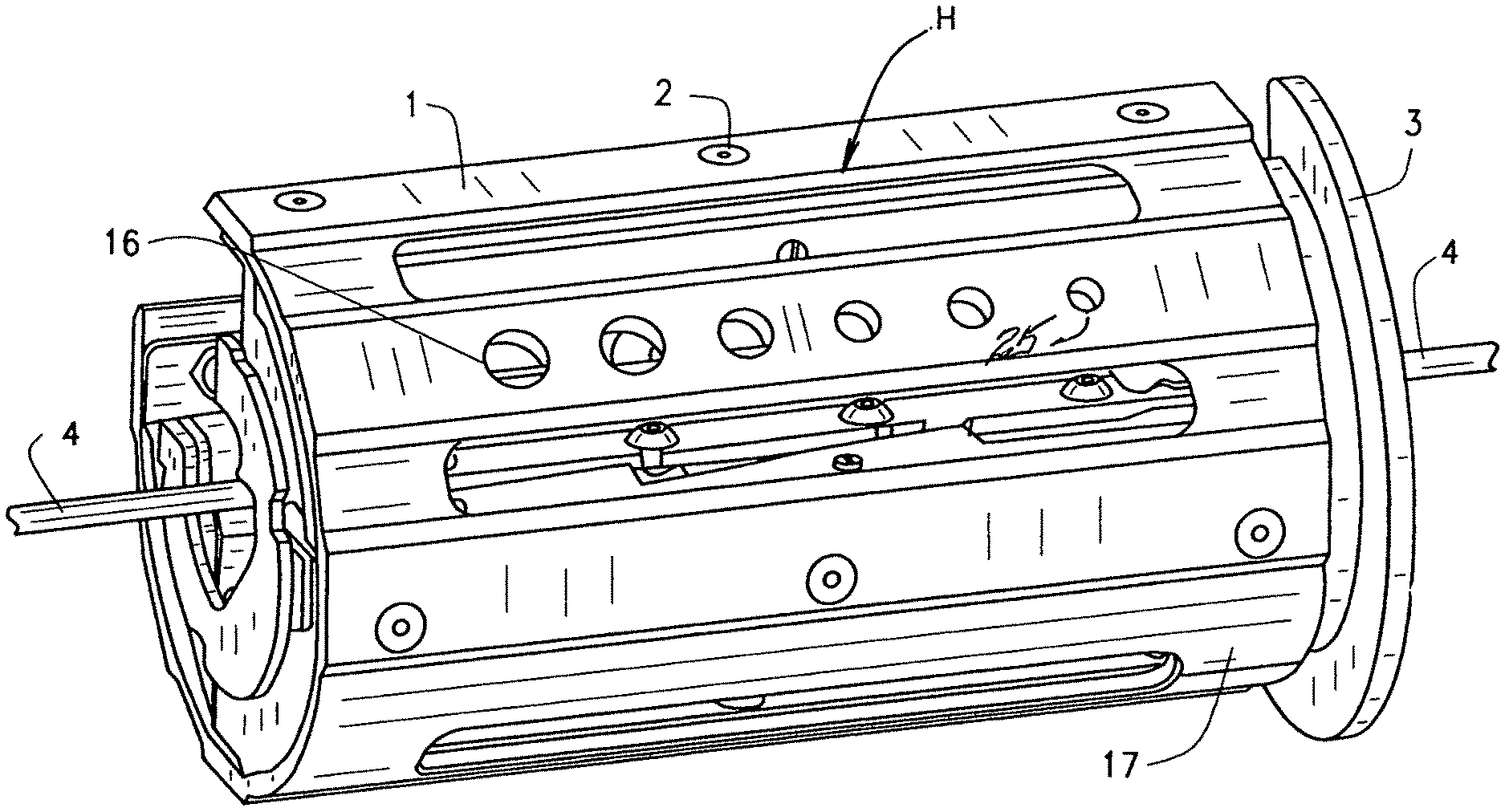

A hand-held tool for straightening tubing such as brake fluid lines in vehicles, the tool provides a housing having an outer covering, internally thereof, a series of sets of rollers, that are adjustable radially, supported by end frames, and intermediate the rollers and the outer covering is an adjuster ring, shiftable longitudinally within the housing, operatively associated with the rollers, such that when the adjuster ring is pulled outwardly, longitudinally, from the tool housing, the rollers shift radially outwardly, for accommodating larger tubing, and when the adjuster ring is pushed inwardly of the housing, the rollers are forced inwardly against smaller diameter tubing, in preparation for its straightening. A sector of the tool, usually along a quadrant, is opened from one end to the other of the tool, so as to allow the tool to be applied to the tubing to be straightened, anywhere along its length, and not only at its ends.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B21D Class
- 647 Applications Filed
- 407 Patents Issued To-Date
- 62.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B21D Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 21, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 21, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 21, 2033 |
