Printing plate for gravure printing and method for manufacturing multilayer ceramic electronic component using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 24, 2021
Grant Date -
Apr 16, 2020
app pub date -
Oct 2, 2019
filing date -
Oct 10, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

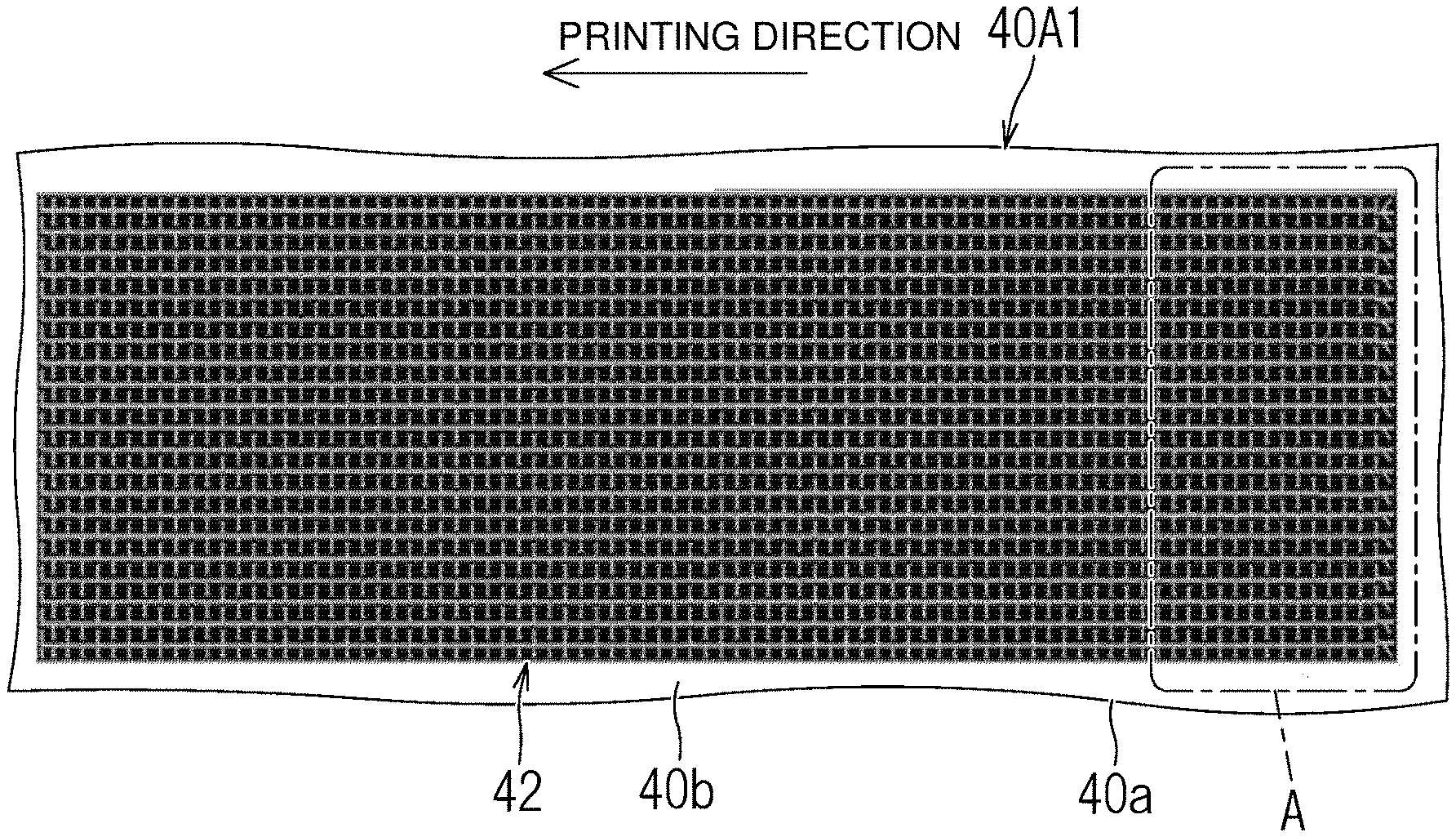

A printing plate for gravure printing includes a gravure roll with a cylindrical shape, and printing portions corresponding to a graphic pattern to be printed is provided on an outer circumferential surface thereof. Each of the printing portions includes first banks extending in a substantially parallel direction to a rotation direction, second banks extending in a direction substantially orthogonal to the rotation direction and in each of which at least one end portion is connected to the first banks, and cells defined by the first banks and the second banks, and in the cell located at a print starting end portion of each of the printing portions which first comes into contact with a printing object in the rotation direction, a partition bank which divides the cell in a diagonal direction is provided.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2019 Application Filing Year
- B41M Class
- 654 Applications Filed
- 393 Patents Issued To-Date
- 60.10 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41M Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 24, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 24, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 24, 2033 |
