Apparatus for the reparation of post-collision, damaged or under maintenance vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 24, 2021
Grant Date -
Jun 20, 2019
app pub date -
Sep 5, 2017
filing date -
Sep 7, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

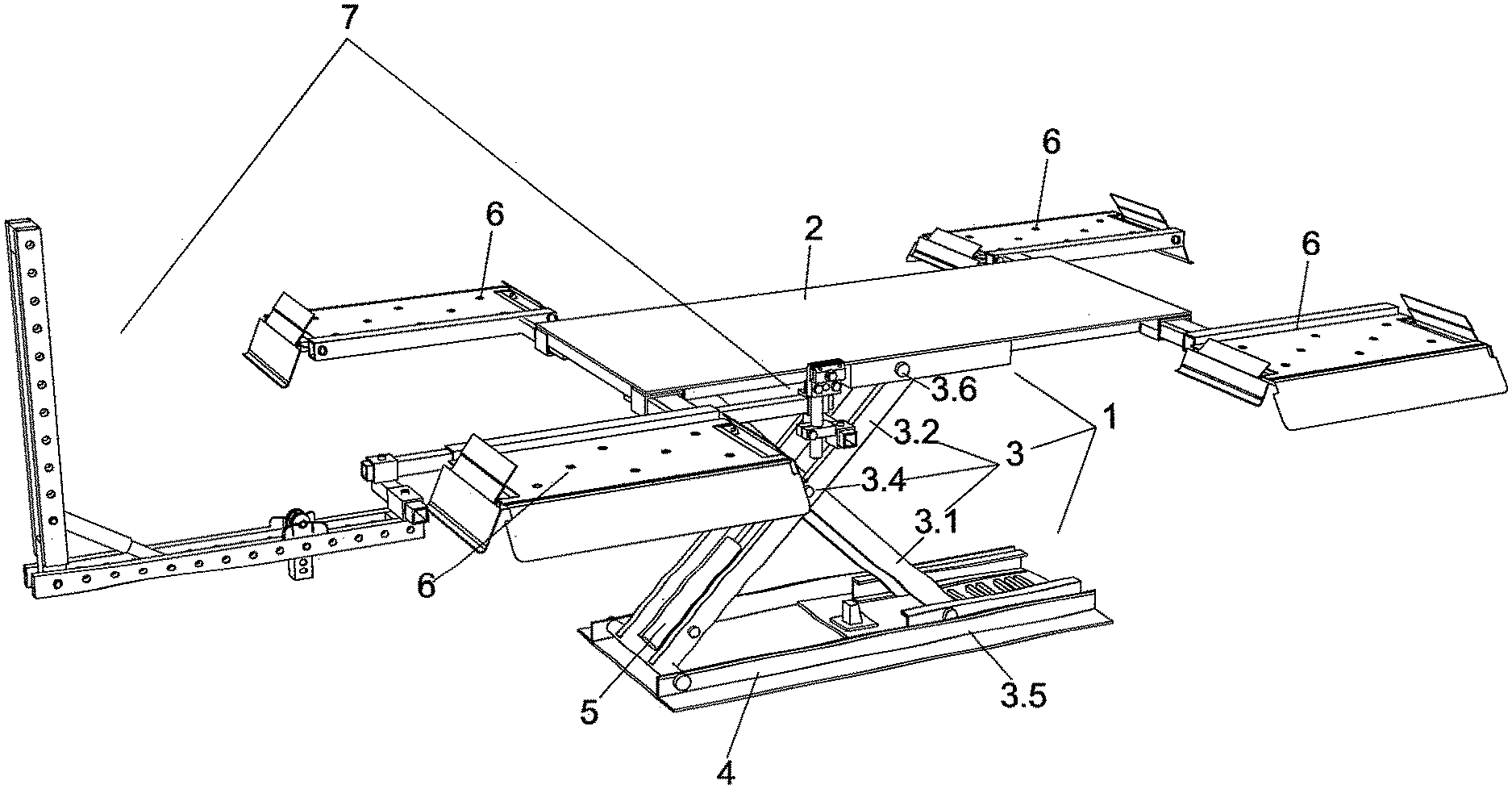

There is provided an apparatus for the repair of post-collision or damaged vehicles or those under maintenance, which includes a lifter (1) having an upper platform (2) supported by a lifting mechanism (3) connected to a resting base (4) mounted on the ground. The lifter (1) is activated by an actuator (5) which adjusts the upper platform (2) to the desired height. Wheel resting/gripping supports (6) for the vehicle are removably fixed to the upper platform and allow the vehicle to be lifted and lowered by the lifter. Pushing and/or pulling and/or anchoring equipments (7) for the vehicle are movably mounted on a sliding element (8) which is adapted to be slideably mounted within the structure of the wheel resting/gripping supports thereby allowing the quick mounting and centering of the pushing/pulling/anchoring equipments (7) to the desired points of the vehicle under repair.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B66F Class
- 487 Applications Filed
- 350 Patents Issued To-Date
- 71.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B66F Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 24, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 24, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 24, 2033 |
