Measuring hydraulic fluid pressure in a fluid-working machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 27, 2021
Grant Date -
May 23, 2019
app pub date -
Sep 21, 2018
filing date -
Nov 17, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
Abstract

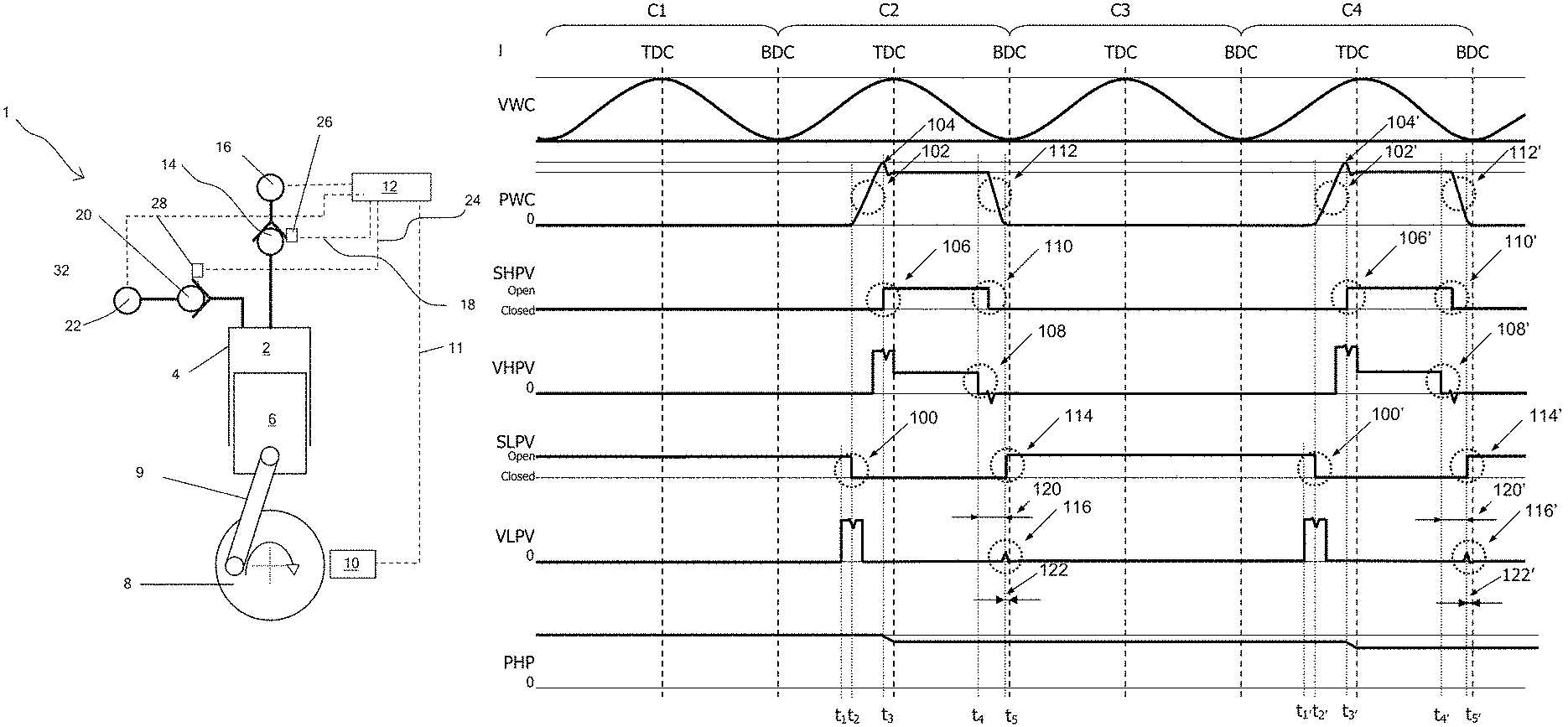

A measurement of the pressure of hydraulic fluid in a fluid working machine can be determined from the timing of the movement of valves which selectively seal a working chamber of cyclically varying volume from a fluid gallery. The timing of opening of a low pressure valve, to connect a working chamber to a low pressure fluid gallery, following the closure of a high pressure valve to seal a working chamber can be used to estimate the pressure in the high pressure fluid gallery at the moment of closure of the high pressure valve.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2018 Application Filing Year
- F04B Class
- 1144 Applications Filed
- 841 Patents Issued To-Date
- 73.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F04B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 27, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 27, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 27, 2033 |
