Combustion chamber assembly with adapted mixed air holes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 27, 2021
Grant Date -
Jun 25, 2020
app pub date -
Dec 20, 2019
filing date -
Dec 21, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

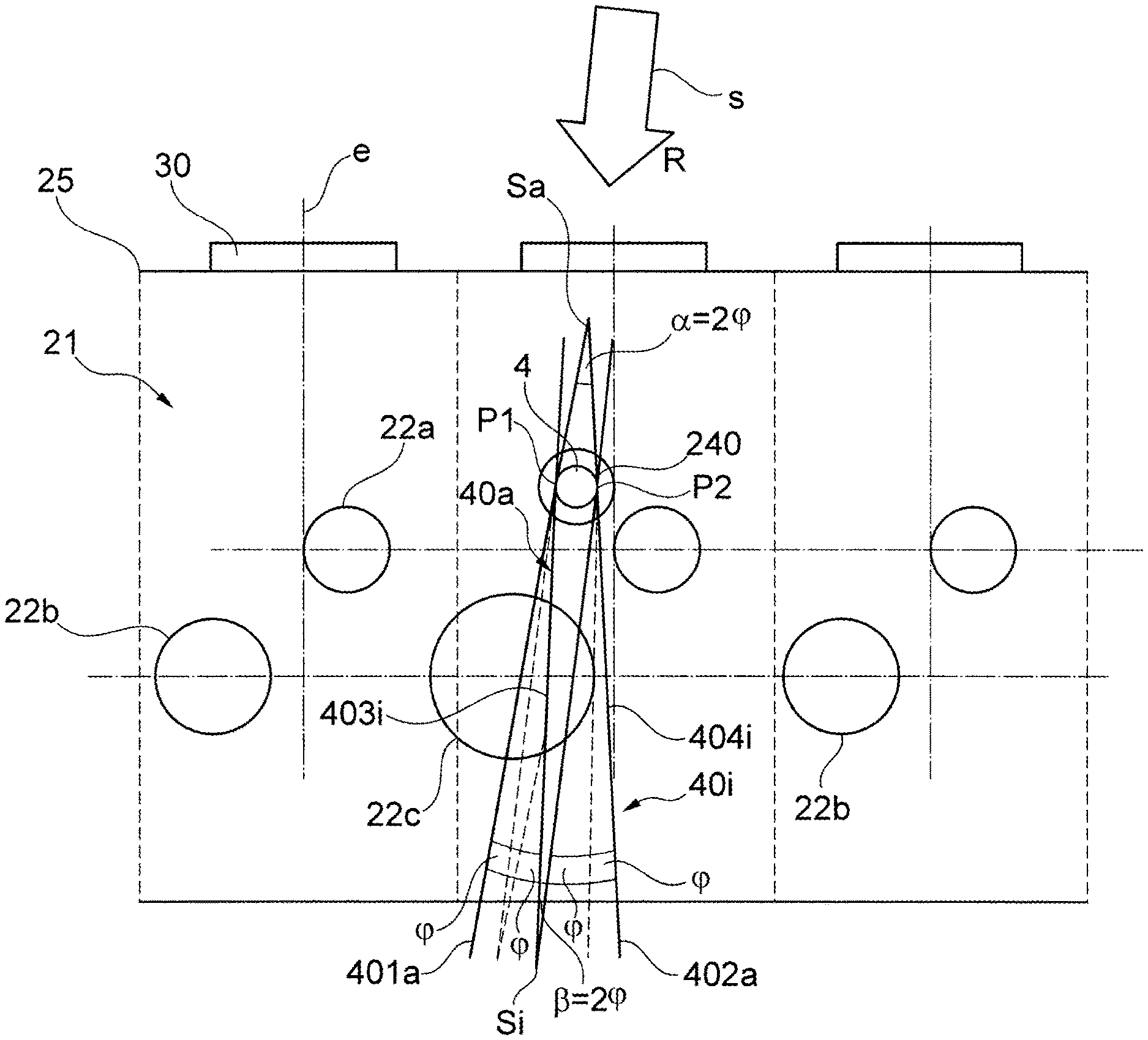

The proposed solution relates to a combustion chamber assembly of an engine (T), in which an overrun of a spark plug is defined with a specific outer cone and a specific inner cone, and mixing air holes of a first arrangement and of at least one second arrangement that lie at least partially in a partial region of the overrun of the spark plug, said overrun being defined by the outer cone and the inner cone and extending downstream of the spark plug as far as an inner apex point (Si) of the inner cone, are formed with a flow cross section which is different from a flow cross section which the mixing air holes adjoining in the circumferential direction (U) of the respective arrangement have.
