Intelligent interactive interface
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 20, 2021
Grant Date -
Jan 25, 2018
app pub date -
Jan 8, 2016
filing date -
Jan 7, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

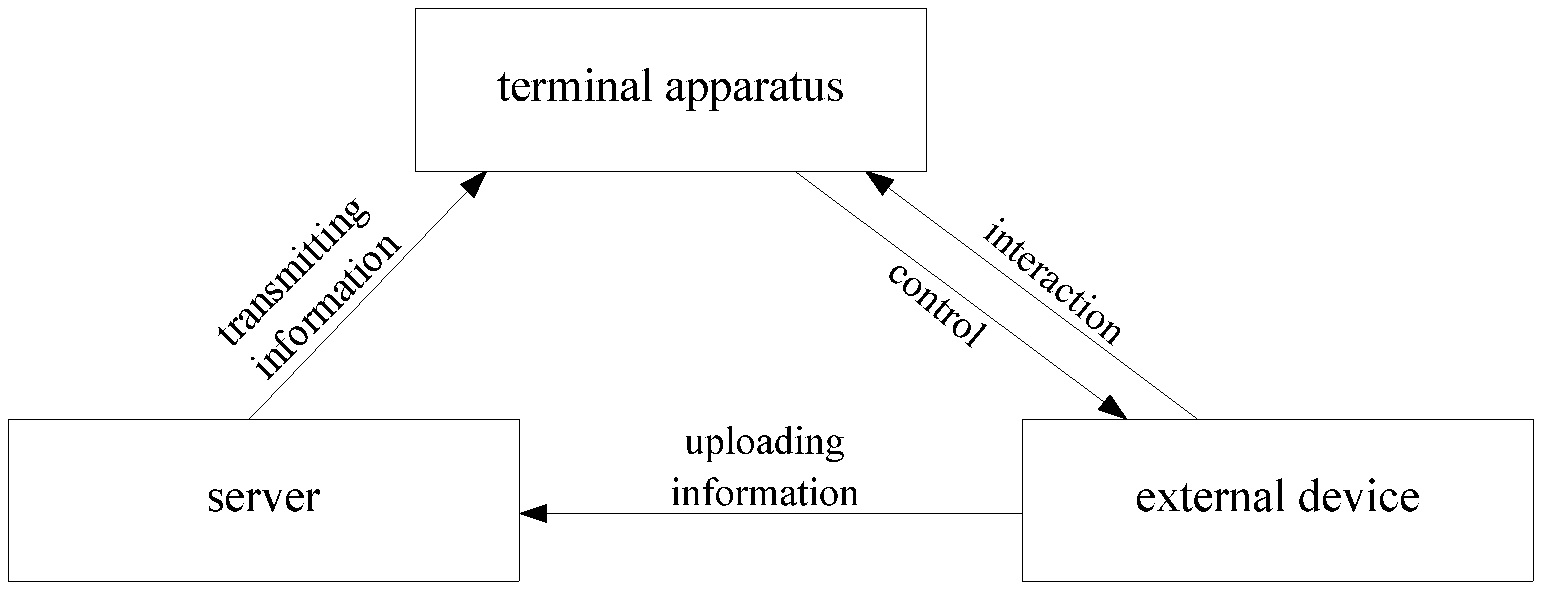

The present disclosure discloses an intelligent interactive interface, comprising: an interface underlayer drawn from trajectory formed by measurement; a plurality of identifications disposed on the interface underlayer, each of the identifications corresponds to an external device, information of the external device is uploaded in real time, displayed on the interface underlayer and can be stored on a server, and a mapping relationship is established between the information of the external device and the corresponding identification of respective external device; a terminal apparatus is connected to the external device and displays the interface underlayer, identifications and control and/or exchange information with the external device; wherein the information of the external device is displayed in real time on the terminal apparatus through the identifications, the identifications can be added or deleted in real time. The present disclosure implements functional interactions such as controlling, monitoring an external device by a terminal apparatus. The present disclosure also implements various functions such as curve line measurement, dotting, identification description, synthesis of a measurement drawing and a real scene, remote real-time monitoring, etc.
First Claim
Other Claims data not available
Family
International Classification(s)
- G06T:IMAGE DATA PROCESSING OR GENERATION, IN GENERAL
- G05B:CONTROL OR REGULATING SYSTEMS IN GENERAL; FUNCTION....
- G06F:ELECTRIC DIGITAL DATA PROCESSING
- G01C:MEASURING DISTANCES, LEVELS OR BEARINGS; SURVEYING....
- G01S:RADIO DIRECTION-FINDING; RADIO NAVIGATION; DETERMI....
- G01B:MEASURING LENGTH, THICKNESS OR SIMILAR LINEAR DIME....
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06T Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 20, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 20, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 20, 2033 |
