Reconfigurable machining center
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 13, 2021
Grant Date -
Jun 24, 2021
app pub date -
Feb 10, 2017
filing date -
Feb 10, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

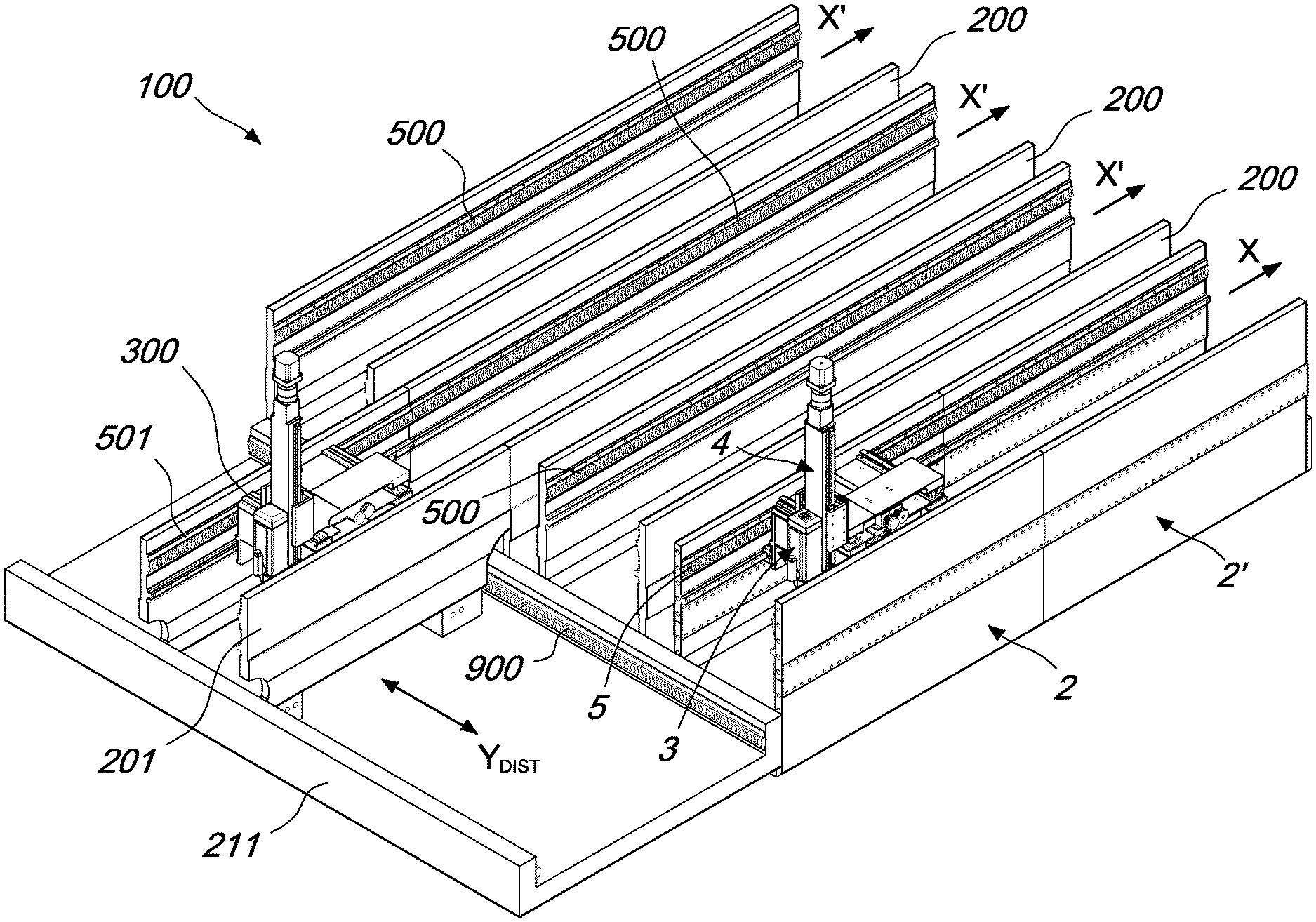

A reconfigurable machining center includes a base structure extending in a first direction, a movable crossmember movable in the first direction and provided with a machining head, supporting elements on the base structure to enable movement of the movable crossmember along the first direction, a first leadscrew rack, integral with the base structure and having a first helical circular toothed sector, and extending along the entire base structure parallel to the first direction, and a first screw rotatably coupled to the movable crossmember and engaging a corresponding first leadscrew rack, and having a rotation axis parallel to the first direction. The longitudinal extension of the base structure in the first direction is an integer multiple of the pitch of tooth of the leadscrew racks, and the base structure includes coupling elements adapted to couple the base structure to a following and/or preceding adjacent base structure along the first direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B23Q Class
- 705 Applications Filed
- 514 Patents Issued To-Date
- 72.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 69.00 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 13, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 13, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 13, 2033 |
