Medical holding arm having annular LED display means
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 29, 2021
Grant Date -
Sep 12, 2019
app pub date -
May 28, 2019
filing date -
Aug 12, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

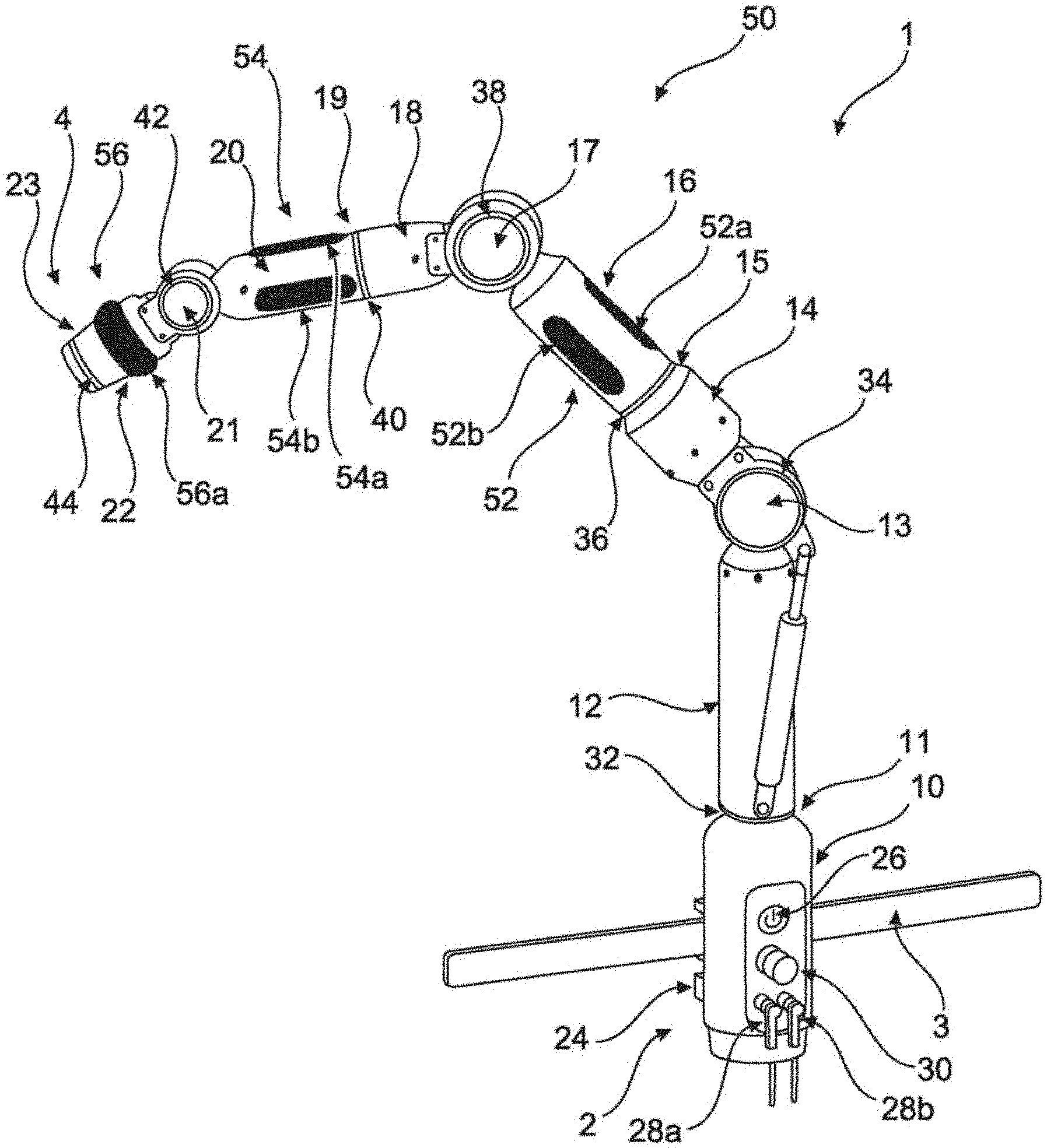

A holding apparatus, in particular a holding arm and/or tripod, for medical purposes, comprises a proximal end for attaching the holding apparatus to a base and a distal end for receiving an add-on device; at least one first and one second arm segment, where the first arm segment is connected to a first joint and the second arm segment is connected to a second joint, where each joint is releasable and lockable; an operating device for releasing and/or locking the respective joint for putting the holding apparatus into a desired pose; and a first display unit which is arranged on the first joint and a second display unit which is arranged on the second joint. The first and/or second display unit is configured to display at least one status of the holding apparatus and/or of an add-on device that is different from the releasing and/or locking of the respective joint. The invention further relates to a method.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- F16M Class
- 1134 Applications Filed
- 774 Patents Issued To-Date
- 68.26 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 16 Citation Count
- F16M Class
- 99.46 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 29, 2024 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 29, 2032 |
