Methods of forming a strengthened component
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 1, 2021
Grant Date -
Nov 1, 2018
app pub date -
Apr 28, 2017
filing date -
Apr 28, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

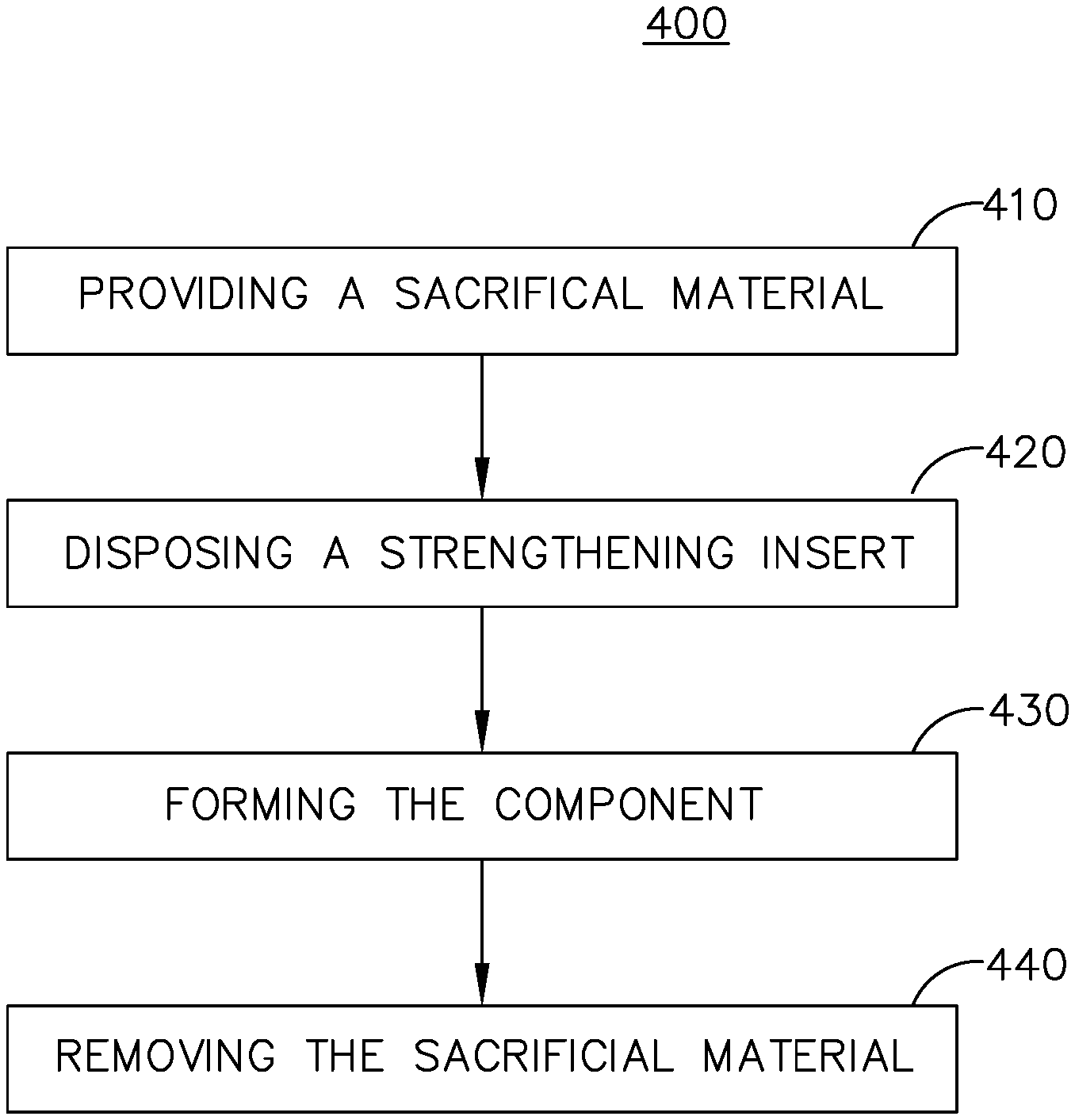

A method of forming a strengthened component includes forming a sacrificial material into a mold of the component having an outer surface, disposing an insert having an inner surface and an outer surface opposite and spaced from the inner surface such that the strengthening insert inner surface abuts the mold outer surface, forming the component by way of electrodisposition of a metallic layer over the exposed mold outer surface and the exposed strengthening insert outer surface, and removing the sacrificial material from the component.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2017 Application Filing Year
- C25D Class
- 678 Applications Filed
- 418 Patents Issued To-Date
- 61.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C25D Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 1, 2024 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 1, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 1, 2032 |
